When the BUS key is pressed a second time, the output routing for that channel appears on your recorder.
The TALK and SLATE# keys are selected in this page.

BUS key - Output page Shortcuts

The list below contains the keys that perform special functions.
IMPORTANT: In the Output page, any signal sent to the Disk Channel Mix will be recorded. Unless you
When the BUS key is pressed a third time, it exits.

PFL key

The PFL key routes one or more channels directly to the headphone bus in a pre-fader mode (think solo). When
the PFL key is active, the current headphone selection will be suspended. Pressing the PFL key activates and de-
activates the PFL function. Only the headphone use is effected by the PFL function. Multiple inputs can be
selected when using the PFL function by pressing each key in turn.
When the metering is changed (by pressing the M key, on the Mix-12's keyboard or an attached keyboard) the
PFL key's illumination is inverted.

EQ key

The Deva/Fusion EQ is very powerful. It consists of five filters. A three band parametric and two notch filters are
available on each channel. The EQ is present in both pre- and post-fader and cannot be separated. When EQ is
changed, all audio on that channel is affected. However, adding EQ does not change the timing of the audio as it
passes through a channel, any delay remains constant.
NOTE: Each channel has its own filter set. If a filter is not in use, leave the EQ for that channel disabled. That
saves processing power. It may be important if a number of the effects need to be "On" at the same time.
Pressing the EQ key, displays the EQ page for that channel on the recorder's screen and illuminates the CH key
to further remind the operator which channel's EQ is being modified.

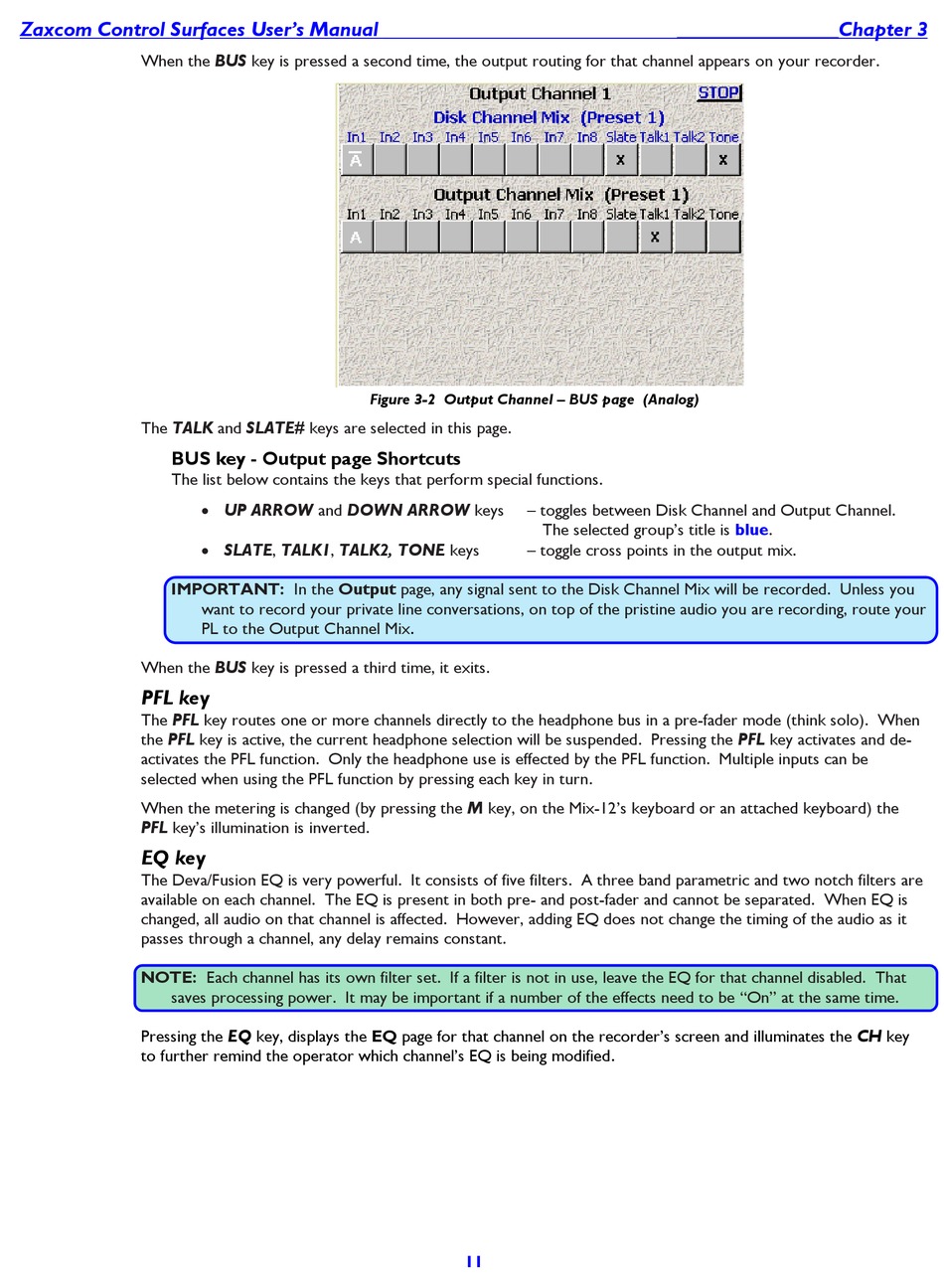

Figure 3-2 Output Channel – BUS page (Analog)
 UP ARROW and DOWN ARROW keys
 SLATE, TALK1, TALK2, TONE keys
want to record your private line conversations, on top of the pristine audio you are recording, route your
PL to the Output Channel
– toggles between Disk Channel and Output Channel.
The selected group's title is blue.
– toggle cross points in the output mix.
Mix.
