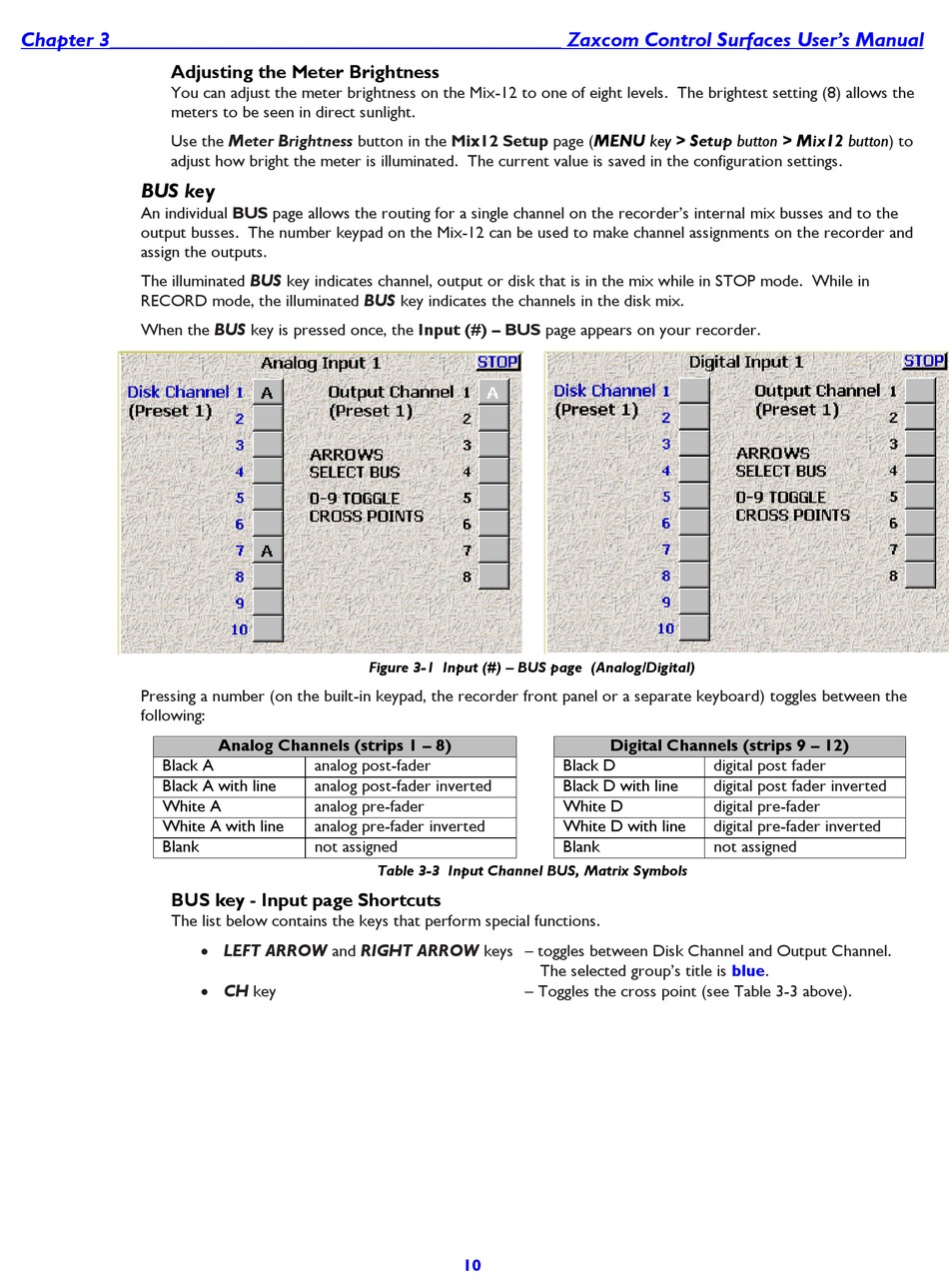

Chapter 3_____________________________________________ Zaxcom Control Surfaces User's Manual

Adjusting the Meter Brightness

You can adjust the meter brightness on the Mix-12 to one of eight levels. The brightest setting (8) allows the
meters to be seen in direct sunlight.
Use the Meter Brightness button in the Mix12 Setup page
adjust how bright the meter is illuminated. The current value is saved in the configuration settings.

BUS key

An individual BUS page allows the routing for a single channel on the recorder's internal mix busses and to the
output busses. The number keypad on the Mix-12 can be used to make channel assignments on the recorder and
assign the outputs.
The illuminated BUS key indicates channel, output or disk that is in the mix while in STOP mode. While in
RECORD mode, the illuminated BUS key indicates the channels in the disk mix.
When the BUS key is pressed once, the Input (#) – BUS page appears on your recorder.
Pressing a number (on the built-in keypad, the recorder front panel or a separate keyboard) toggles between the
following:
Black A
Black A with line
White A
White A with line
Blank

BUS key - Input page Shortcuts

The list below contains the keys that perform special functions.
 LEFT ARROW and RIGHT ARROW keys – toggles between Disk Channel and Output Channel.
 CH key
Figure 3-1 Input (#) – BUS page (Analog/Digital)
Analog Channels (strips 1 – 8)
analog post-fader
analog post-fader inverted
analog pre-fader
analog pre-fader inverted
not assigned

Table 3-3 Input Channel BUS, Matrix Symbols

(MENU key > Setup button > Mix12
Digital Channels (strips 9 – 12)
Black D
Black D with line
White D
White D with line
Blank
The selected group's title is blue.
– Toggles the cross point (see Table 3-3 above).
10
button) to
digital post fader
digital post fader inverted
digital pre-fader
digital pre-fader inverted
not assigned
