Chapter 3_____________________________________________ Zaxcom Control Surfaces User's Manual
Pressing any other channel's EQ key displays the new channel's EQ page and illuminates only that channel's CH
key..
NOTE: If you press and hold the EQ key, when you release the key you will exit the EQ page.

EQ key Shortcuts

While in the EQ page, the following keys are in effect:
 ENTER key
 RIGHT ARROW key – advances to the next filter band (note the green light in the buttons on the bottom
 LEFT ARROW
 CH key
 UP ARROW key
o Band 1 – 3 are band filters selectable as Lo Shelf, Hi Shelf, Peaking or Off.
o Notch 1 & 2 are notch filters selectable as Off or On.
 U key
 L key
 F key
 Q key
 LOW EQ knob
 MID EQ knob
 HIGH EQ knob
 JOG wheel
 EQ key
 E key
While in the EQ Memory page, the following keys are in effect:
 CH key
 1 thru 5 keys
 EQ key
 E key

CH key (Channel)

On each channel strip, the CH key allows direct access to that channels effects and characteristics.
The CH key illuminates indicating the channel selected. When the SLATE, TALK 1 or TALK 2 key is pressed, the
channels they are being mixed to are illuminated.
Pressing the CH key opens the Input (#) page for that channel, allowing easy access to setting the input type,

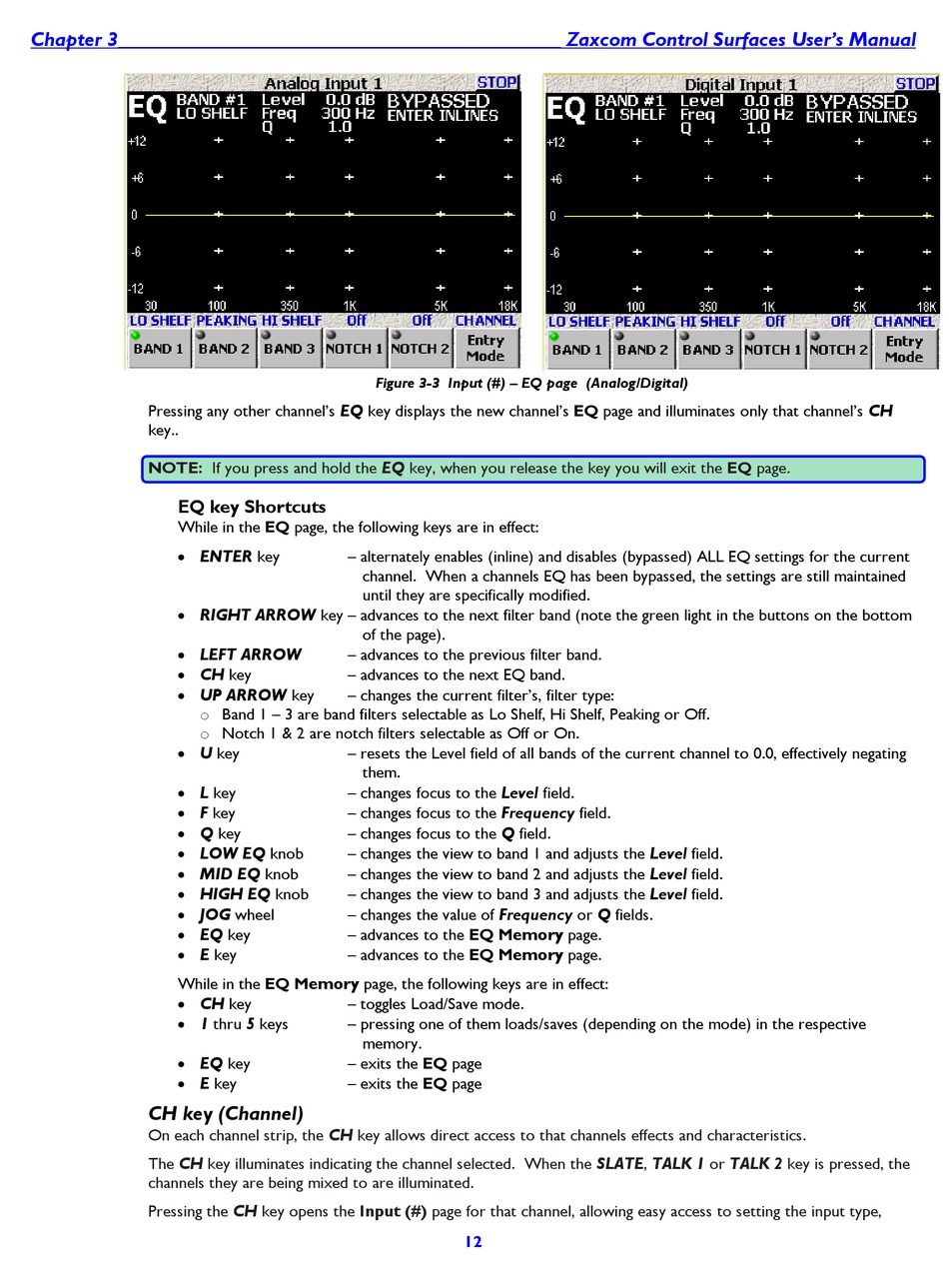

Figure 3-3 Input (#) – EQ page (Analog/Digital)
– alternately enables (inline) and disables (bypassed) ALL EQ settings for the current
channel. When a channels EQ has been bypassed, the settings are still maintained
until they are specifically modified.
of the page).
– advances to the previous filter band.
– advances to the next EQ band.
– changes the current filter's, filter type:
– resets the Level field of all bands of the current channel to 0.0, effectively negating
them.
– changes focus to the Level field.
– changes focus to the Frequency field.
– changes focus to the Q field.
– changes the view to band 1 and adjusts the Level field.
– changes the view to band 2 and adjusts the Level field.
– changes the view to band 3 and adjusts the Level field.
– changes the value of Frequency or Q fields.
– advances to the EQ Memory page.
– advances to the EQ Memory page.
– toggles Load/Save mode.
– pressing one of them loads/saves (depending on the mode) in the respective
memory.
– exits the EQ page
– exits the EQ page
