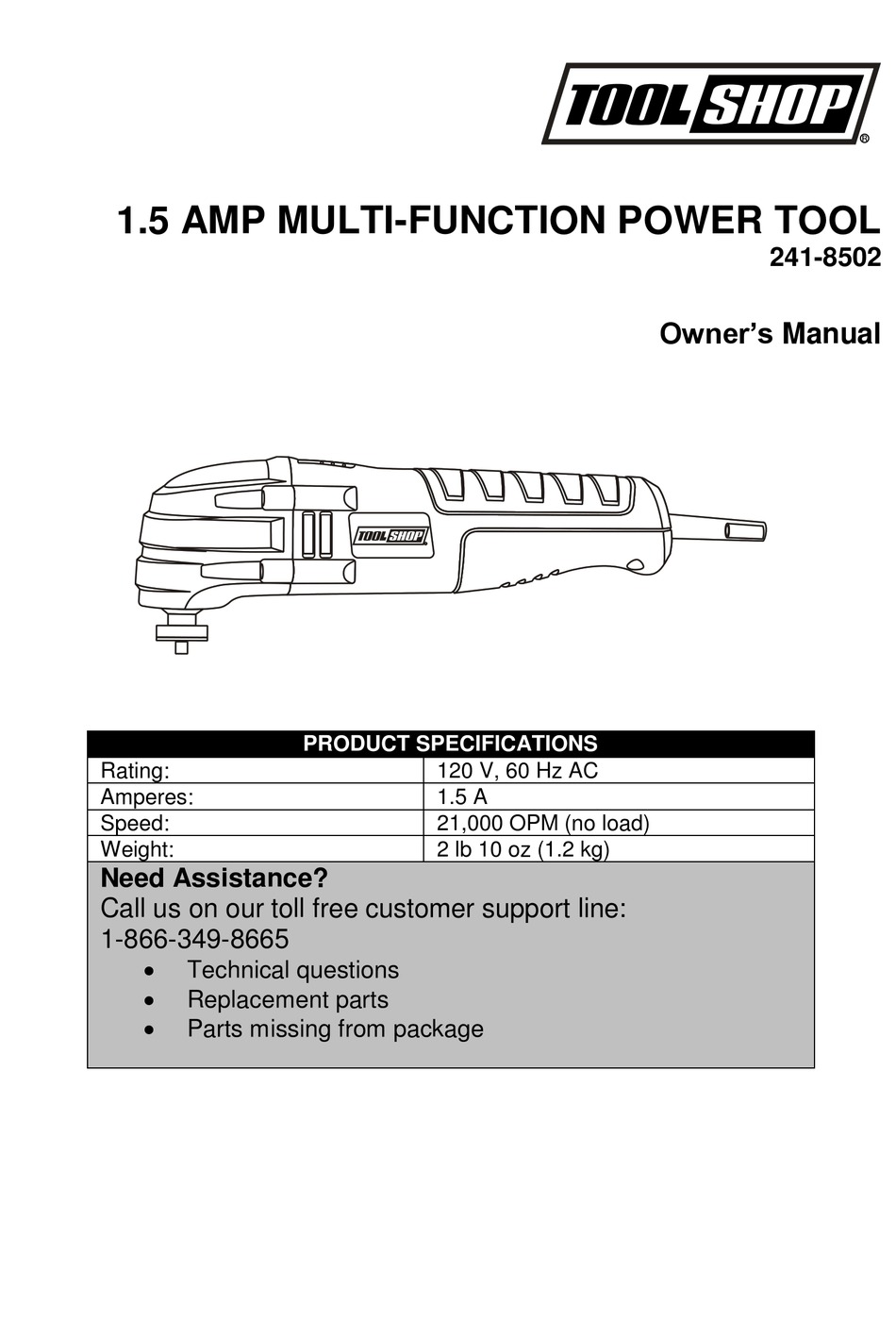

1.5 AMP MULTI-FUNCTION POWER TOOL
Rating:
Amperes:
Speed:
Weight:
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665
Technical questions
Replacement parts
Parts missing from package
PRODUCT SPECIFICATIONS
120 V, 60 Hz AC
1.5 A
21,000 OPM (no load)
2 lb 10 oz (1.2 kg)
241-8502
Owner's Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tool Shop 241-8502
Summary of Contents for Tool Shop 241-8502
-
Page 1: Product Specifications
1.5 AMP MULTI-FUNCTION POWER TOOL 241-8502 Owner’s Manual PRODUCT SPECIFICATIONS Rating: 120 V, 60 Hz AC Amperes: 1.5 A Speed: 21,000 OPM (no load) Weight: 2 lb 10 oz (1.2 kg) Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 ... -
Page 2: Table Of Contents
TABLE OF CONTENTS Product specifications ………….……………………………………………………. Table of contents ……………………………………………………………………... General safety warnings …………………………………………………………….. 3–4 Eye, ear & lung protection …………………………………………………………… 3–4 Electrical safety ………………………………………………………………………. Power tool safety ……………………………………………………………………... 5–6 General safety warnings …………………………………………………………….. Work area safety ………………………………………………………….………….. Electrical safety ………………………………………………………………………. Personal safety ……………………………………………………………………….. -
Page 3: General Safety Warnings
GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. It must be understood that common sense and caution are factors which cannot be built into the product. -
Page 4: Electrical Safety
GENERAL SAFETY WARNINGS WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities. -
Page 5: Power Tool Safety
POWER TOOL SAFETY WARNING: Read all safety warnings Do not abuse the cord. Never use the and instructions. Failure to follow the cord for carrying, pulling or unplugging the power tool. Keep cord away from warnings and instructions may result in electric shock, fire and/or serious injury. -
Page 6: Power Tool Safety
POWER TOOL SAFETY PERSONAL SAFETY – cont’d Store idle power tools out of the reach of children and do not allow persons Remove any adjusting key or wrench unfamiliar with the power tool or these before turning the power tool on. A instructions to operate the power tool. -
Page 7: Specific Safety Rules
SPECIFIC SAFETY RULES WARNING: Secure workpiece. Use clamps or a vice to Know your multi- hold the workpiece. It is safer than using function power tool. Do not plug the your hand and it frees both hands to tool into the power source until you operate the tool. -
Page 8: Symbols
SYMBOLS WARNING: Some of the following symbols may appear on the multi- function power tool. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Direct current Volts Amperes No load speed... -
Page 9: Know Your Multi-Function Power Tool
KNOW YOUR MULTI-FUNCTION POWER TOOL ON/OFF switch Hex key holder Air vents Accessory holder ACCESSORIES AVAILABLE ACCESSORIES WARNING: Use only accessories Before using any accessory, carefully read the instructions or the owner’s manual for that are recommended for this multi- function power tool. -
Page 10: Contents
CONTENTS CONTENTS Carefully unpack the multi-function power tool. Compare the contents against the “MULTI-FUNCTION POWER TOOL COMPONENTS” chart below. NOTE: See illustration of the multi-function power tool on Page 11. WARNING: To avoid fire or toxic reaction, never use gasoline, naphtha, acetone, lacquer thinner or similar highly volatile solvents to clean the tool. - Page 11 CONTENTS...
-
Page 12: Assembly And Operating
ASSEMBLY AND OPERATING ASSEMBLY AND OPERATING ASSEMBLY AND OPERATING INSTALLING ACCESSORIES All accessories are installed on the multi- function power tool in a similar manner. For the purposes of describing the accessory installation, the half circle blade is used. DANGER: Always remove the plug from the power source before installing or removing accessories or sandpaper. -
Page 13: Installing Sandpaper
ASSEMBLY AND OPERATING INSTALLING ACCESSORIES – cont’d NOTES: Check to make sure the convex curve of the washer is facing the head of the screw and the slots in the edge of the washer fit over the alignment pins in the accessory holder. -
Page 14: On/Off Switch
ASSEMBLY AND OPERATING ON/OFF SWITCH To turn the tool ON, slide the ON/OFF switch (1) toward the front of the tool (Fig. 5). To turn the tool OFF, slide the ON/OFF switch toward the rear of the tool. Fig. 5 WARNING For safety reasons, the operator must read the sections of this Owner’s... -
Page 15: Flush Cutting A Door Jamb And Casing For Installing Flooring
ASSEMBLY AND OPERATING FLUSH CUTTING A DOOR JAMB AND CASING FOR INSTALLING FLOORING The multi-function power tool can be used to flush cut a door jamb and casing to allow space for the new flooring to fit neatly under the door jamb and casing. For the purpose of demonstrating the procedure, floor tile is being used. -
Page 16: Cutting A Hole In Wood Flooring To Install A Heating Vent
ASSEMBLY AND OPERATING FLUSH CUTTING A DOOR JAMB AND CASING FOR INSTALLING FLOORING – cont’d Continue to make several plunge cuts until the bottom of the door jamb and casing are completely cut off and the loose pieces can be easily removed. Follow the same basic procedure for installing carpet, using a thicker spacer that is the same thickness of the carpet... -
Page 17: Using The Detail Sander Attachment
ASSEMBLY AND OPERATING CUTTING A HOLE IN WOOD FLOORING TO INSTALL A HEATING VENT – cont’d While holding the tool tightly, slowly plunge the corner of the blade into the flooring until it cuts through the flooring. Once the plunge cut is complete, set the tool to its highest speed and complete the cut to the corner of the rectangle. -
Page 18: Using The Scraper Blade
ASSEMBLY AND OPERATING USING THE DETAIL SANDER ATTACHMENT – cont’d This tool is designed for detail sanding on small surface areas. Place the sandpaper surface of the sanding pad on the workpiece to be sanded. Keep the tool moving to avoid gouging the surface. Use coarse sandpaper and lower speeds when sanding rough surfaces and for removing previous finishes. -
Page 19: Maintenance
MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 20: Exploded View
EXPLODED VIEW... -
Page 21: Parts List
PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the multi-function power tool. Any attempt to repair or replace electrical parts on this multi-function power tool may create a safety hazard unless repairs are performed by a qualified technician. -
Page 22: Parts List
PARTS LIST Key # Part # Part Name Quantity 4010010036 Ball bearing 608-2Z 3120010050 Level knob 3150050047 Baffle 1020210004 Stator 3120110040 Switch level 1010210004 Rotor 1230010059 Carbon brush assembly 2030070001 Brush holder 3150060005 Brush holder support 4010010035 Ball bearing 627-2Z 1061150016 Switch 3150160117... -
Page 23: Warranty
® TOOL SHOP 1.5 AMP MULTI-FUNCTION POWER TOOL WARRANTY 1-YEAR LIMITED WARRANTY: ® TOOL SHOP This brand power tool carries a 1-Year Limited Warranty to the original purchaser. If the tool fails within one (1) year from the date of purchase, simply bring this tool with your original sales receipt back to your nearest ®...
