Summary of Contents for QSC MH-1075C-F

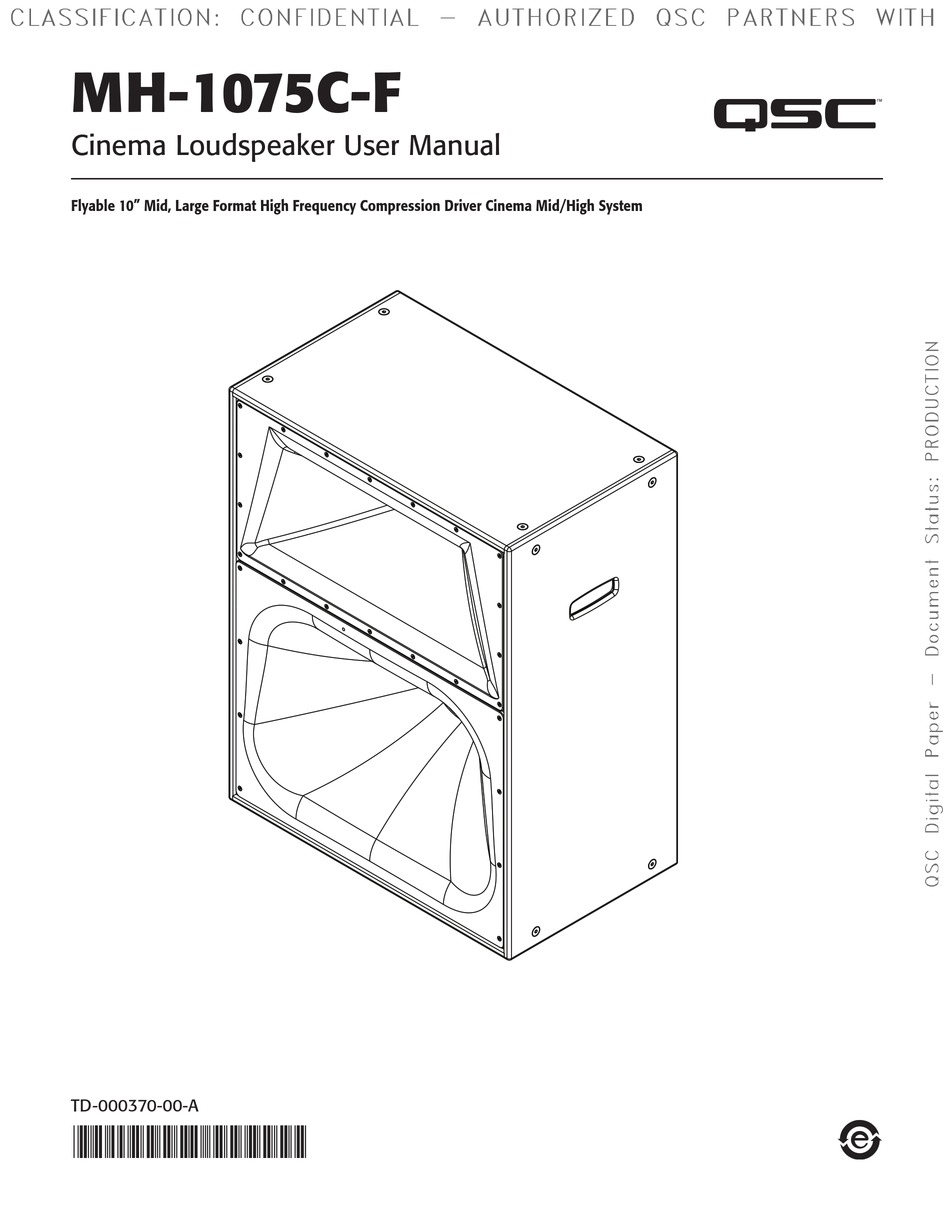

- Page 1 MH-1075C-F Cinema Loudspeaker User Manual Flyable 10” Mid, Large Format High Frequency Compression Driver Cinema Mid/High System TD-000370-00-A *TD-000370-00*...
-
Page 2: Important Safety Instructions
Damage to, or loss of any software or data residing on the product is not covered. When providing repair or replacement service, QSC will use reasonable efforts to reinstall the product’s original software configuration and subsequent update releases, but will not provide any recovery or... - Page 3 Suspension The MH-1075C-F comes with 16 M10 attachment points and bolts installed on the enclosure. Only remove the required bolts for mounting and leave all other bolts installed to insure that the enclosure retains full strength. We recommend the use of serviceable thread locking compound when installing the bolts to prevent loosening due to vibration.
- Page 4 1+ and 1- terminals and the 2+ and 2- connections are not used. It is possible to use tri-amp mode by removing the rear panel of the MH-1075C-F and setting the crossover switch to the tri-amp position. The MF connections use the 1+ and 1- terminals and the HF connections use the 2+ and 2- terminals.
- Page 5 Dimensions 13" 15" (330.2 mm) (38.1 mm) 3" (76.2 mm) 40" (1016 mm) 37" (939.8 mm) 31.5" 19" (800.1 mm) (482.6 mm) 2 x 1.5" 2 x 38.1 mm 28.5" 723.9 mm — Figure 4 —...
-
Page 6: Specifications
Specifications MH-1075C-F Frequency Range 250 Hz – 16 kHz Maximum Output (full space / watt / 1 meter) Passive Bi-amp Mode Mid-/High-frequency 135.5 dB SPL Active Tri-amp Mode Mid-frequency 135.5 dB SPL High-frequency 133 dB SPL Impedance 8Ω nominal, mid-frequency and high-frequency... - Page 7 © 2012 QSC Audio Products, LLC. All rights reserved. QSC™ and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and other countries. Neutrik® and speakON® are registered trademarks of Neutrik AG. All other trademarks are the property of their respective owners.
