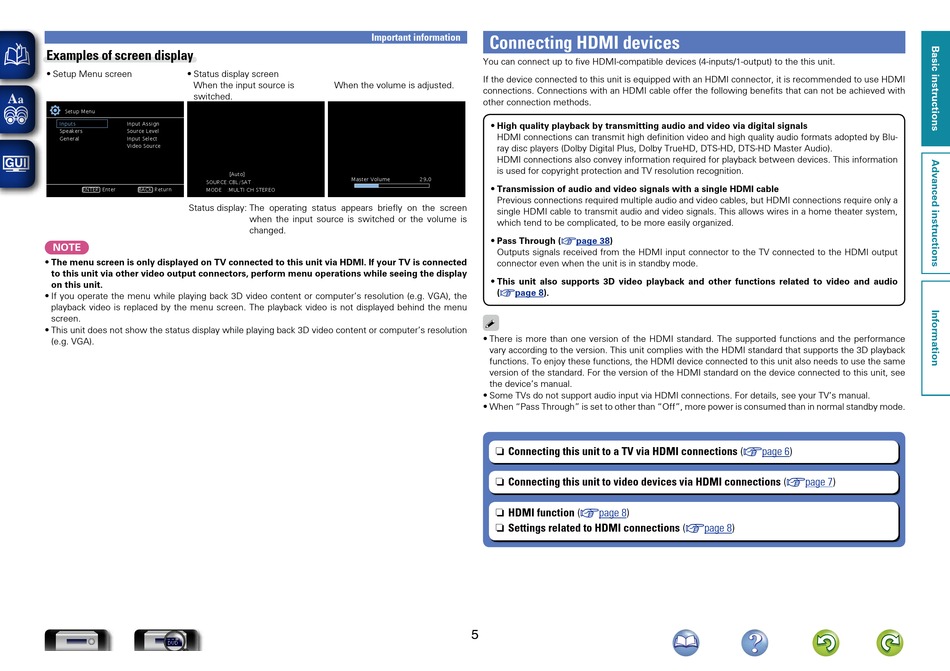

Examples of screen display
• Setup Menu screen • Status display screen
When the input source is
switched.
Setup Menu
Inputs Input Assign
Speakers Source Level
General Input Select
Video Source
SOURCE :CBL/SAT
ENTER Enter BACK Return MODE
Status display: The operating status appears briefly on the screen
NOTE
• The menu screen is only displayed on TV connected to this unit via HDMI. If your TV is connected
to this unit via other video output connectors, perform menu operations while seeing the display
on this unit.
• If you operate the menu while playing back 3D video content or computer's resolution (e.g. VGA), the
playback video is replaced by the menu screen. The playback video is not displayed behind the menu
screen.
• This unit does not show the status display while playing back 3D video content or computer's resolution
(e.g. VGA).
DVD
Important information
When the volume is adjusted.
[Auto]
Master Volume
:MULTI CH STEREO
when the input source is switched or the volume is
changed.

Connecting HDMI devices

You can connect up to five HDMI-compatible devices (4-inputs/1-output) to the this unit.
If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI
connections. Connections with an HDMI cable offer the following benefits that can not be achieved with
other connection methods.
• High quality playback by transmitting audio and video via digital signals
HDMI connections can transmit high definition video and high quality audio formats adopted by Blu-
ray disc players (Dolby Digital Plus, Dolby TrueHD, DTS-HD, DTS-HD Master Audio).
HDMI connections also convey information required for playback between devices. This information
is used for copyright protection and TV resolution recognition.
29.0
• Transmission of audio and video signals with a single HDMI cable
Previous connections required multiple audio and video cables, but HDMI connections require only a
single HDMI cable to transmit audio and video signals. This allows wires in a home theater system,
which tend to be complicated, to be more easily organized.
• Pass Through (vpage 38)
Outputs signals received from the HDMI input connector to the TV connected to the HDMI output
connector even when the unit is in standby mode.
• This unit also supports 3D video playback and other functions related to video and audio
(vpage 8).
• There is more than one version of the HDMI standard. The supported functions and the performance
vary according to the version. This unit complies with the HDMI standard that supports the 3D playback
functions. To enjoy these functions, the HDMI device connected to this unit also needs to use the same
version of the standard. For the version of the HDMI standard on the device connected to this unit, see
the device's manual.
• Some TVs do not support audio input via HDMI connections. For details, see your TV's manual.
• When "Pass Through" is set to other than "Off", more power is consumed than in normal standby mode.
n Connecting this unit to a TV via HDMI connections (vpage 6)
n Connecting this unit to video devices via HDMI connections (vpage 7)
n HDMI function (vpage 8)
n Settings related to HDMI connections (vpage 8)
5
