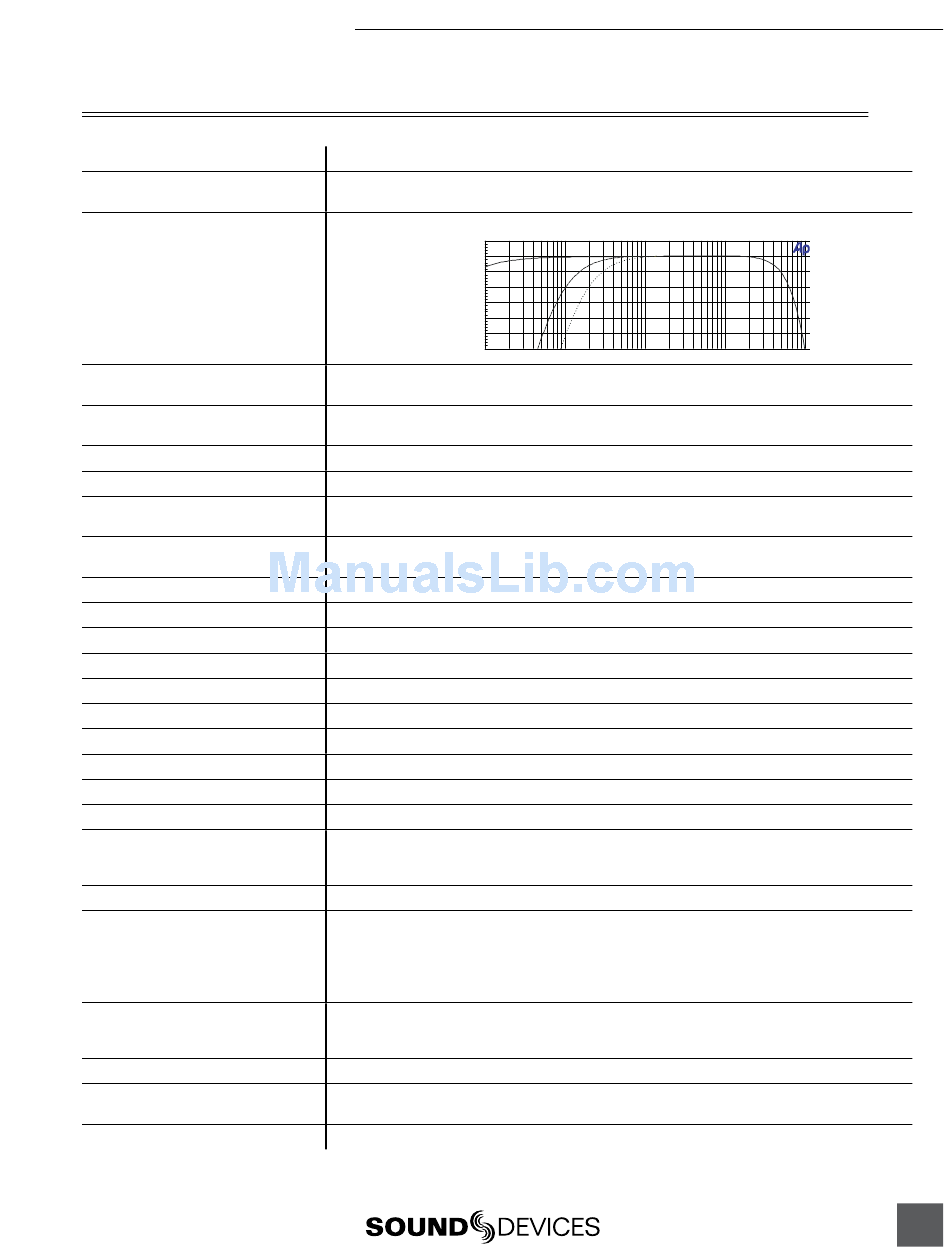

Specifications

Gain: (Mic to Line)
Gain Accuracy (Mic - Line)
Frequency Response
(Mic - Line)
Equivalent Input Noise: (Mic)
Output Clipping Level: (Line)
Input Clipping Level: (Mic)
Dynamic Range: (Mic to Line)
THD + Noise:
Common Mode Rejection Ratio:
Input (Mic):
Input: (Monitor)
Output: (Line)
Headphone Output Impedance:
Frequency Response: (Monitor In)
Frequency Response (headphones):
Input Clipping Level: (Monitor In)
High-Pass Filter:
Phantom Power:
T-Power:
Limiter:
Internal Voltage Rails:
Power:
Polarity:
Weight: (unit only)
Dimensions: (unit only)
Included Accessories:
0 dB to 66 dB input to output, switch selectable
+0.6, –0.1 dB with reference to front panel gain markings
(150 ohm source, 100k ohm load impedances)
20 Hz –20 kHz, +0.1, -0.5 dB, –1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)
+1
MM-1 Frequency
+0
Response
-1
-2
d
-- w/80 Hz HP
B
u -3
·· w/160 Hz HP
-4
-5
-6
10 20
–126 dBu (–128 dBV) maximum
(150 ohm source, flat weighting, 22 Hz – 22 kHz bandwidth gain setting 36 dB or greater)
+22 dBu minimum with 100k ohm load
+20 dBu minimum with 600 ohm load
+4 dBu minimum at the 0 or +18 dB gain setting
122 dB minimum at the +18 dB gain setting
.05% maximum (from 50 Hz – 22 kHz @ +4 dBu output level, 22 Hz – 22 kHz filter bandwidth,
+46 dB gain setting
100 dB minimum at 80 Hz
60 dB minimum at 10 kHz
Transformer-balanced, 2k ohm input impedance
Electronically-balanced, 22k ohm input impedance
Transformer-balanced, 130 ohm output impedance
Unbalanced, 200 ohms
10 Hz – 50 kHz, ±0.5 dB, gain at 50 %
10 Hz – 50 kHz, ±0.5 dB, gain at 50%
Greater than +30 dBu
80 Hz or 160 Hz (switch selectable), 6 dB per octave
12 V or 48 V (switch selectable), will supply 10 mA per DIN 45 596 specification
12 V via 180 ohm resistors, will supply 10 mA
Limits to +17 dBu output level, 10:1 limiting ratio
5 ms attack time, 100 ms release time
Amber/Red LED indicates limiting/clipping
±15 V, regulated
Internal: 2 x AA batteries
External: 5–17 VDC via threaded coaxial jack, (5.5 mm outer diameter, 2.1 mm inner diameter),
pin positive, sleeve negative.
Voltages above 17 VDC cause no damage to unit but will open an internal poly fuse. Poly fuse will
reset when voltage is removed.
All inputs to all outputs are non-inverting
XLR – pin-2 = hot, pin-3 = cold, pin-1 is ground
TRS – Tip = hot, ring = cold, sleeve = ground
0.64 kg, 1.42 lbs.
49 mm x 95 mm x 166 mm (h x w x d)
(1.95" x 3.75" x 6.55")
Mating DC coaxial power connector, 4 rubber feet
MM-1 User Guide and Technical Information
50 100 200 500 1k 2k 5k
Hz
10k 20k 50k 100k
3
