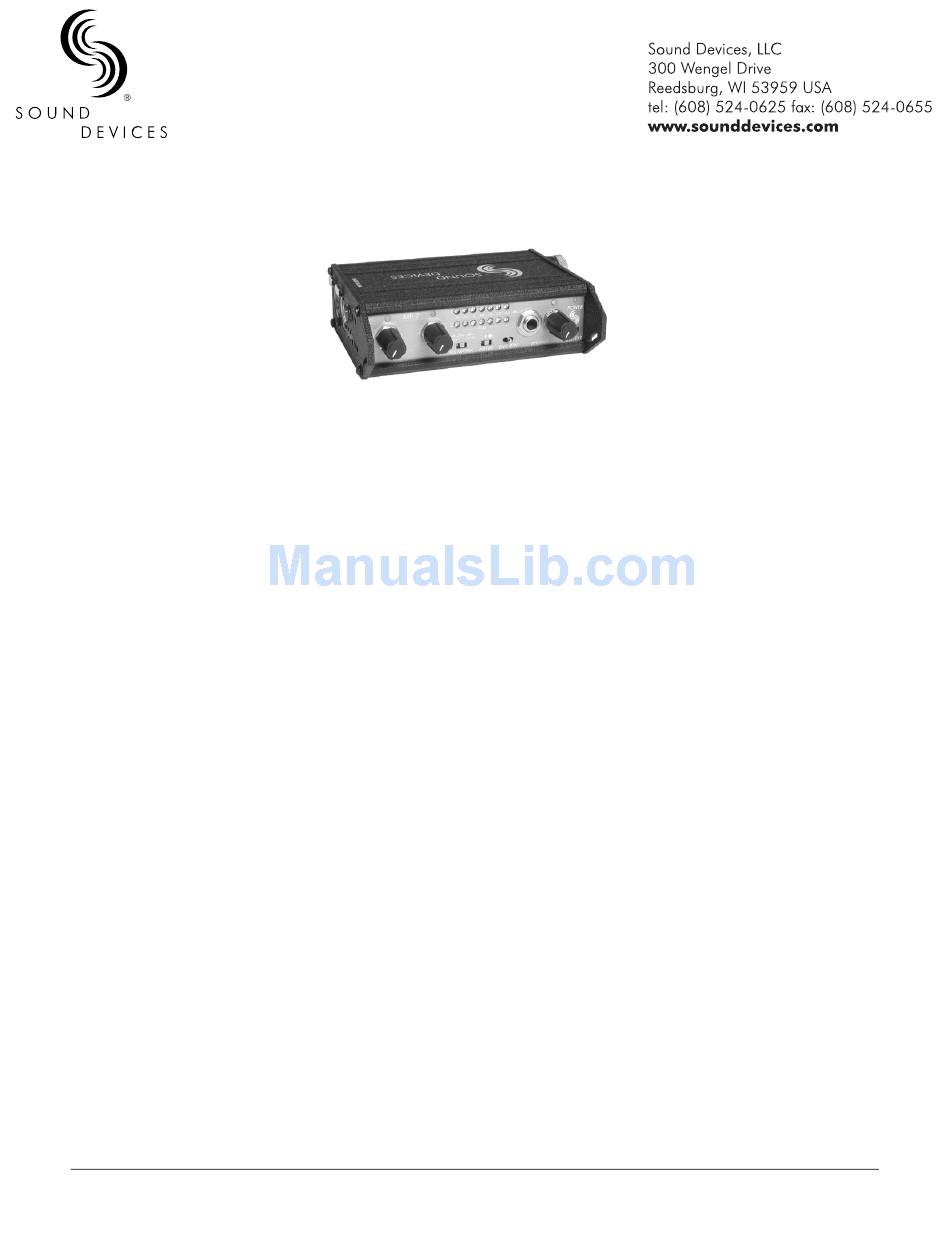

MP-2 Microphone Preamplifier
The MP-2 from Sound Devices is a studio-quality
two-channel, portable, stereo microphone
preamplifier. With its impressive audio performance
and comprehensive list of features including
headphone monitoring, metering and MS Matrix,
the MP-2 is a flexible front end device for
professional studio and field applications. Studio,
High Performance Microphone Inputs
•
Maximum of 66 dB of gain per input.
•
Premium Lundahl input transformers provide
superior sonic quality and freedom from
interference problems.
•
Sealed, conductive plastic potentiometers for
long-life, reliable gain adjustment.
•
Phantom power, selectable between 48-volts
and 15-volts.
•
High-pass filters with 80 or 160 Hz corner
frequencies, 6 dB per octave. Filters are
inserted prior to any active circuitry for extra
high headroom.
Audio Performance
•
Dynamic range exceeding 110 dB.
•
10 Hz to 50 kHz audio bandwidth.
•
Exceptionally low distortion characteristics.
•
Discrete 6-transistor balanced output drivers
provide robust drive for long cable runs.
Headphone Monitoring
•
High current headphone monitor circuit enables
monitoring of program audio or external stereo
tape return audio.
•
Headphone level control and peak-indicator.
Level Metering
•
Sunlight-readable seven-segment GaN LED
output meters.
P/N 388.003
Printed in U.S.A
User Guide and Technical Information
General Description
Features
location, and live music engineers value the
compact size and ability to withstand extremes in
the field. The MP-2 combines rugged mechanical
and electronic construction, compact size, and high-
quality components. The MP-2 allows no-
compromise performance for any application.
•
Three-position LED brightness switch.
•
Two-color LEDs per input channel indicate
clipping and limiter activity.
M/S Stereo Matrix
•
MS stereo decoder assigned to headphones, or
headphones and outputs.
•
Allows for flexible post-production processing.
Audio Limiters
•
"Unclippable" input peak limiters via two-stage
opto-isolator circuit with adjustable limiter
threshold (per input).
•
Dual mono or linked stereo limiter operation.
Flexible Powering
•
Internal battery-power from two AA batteries
with easy access battery compartment.
•
Chassis-isolated 5 to 18 VDC input for easy
external DC powering.
•
Power LED indicates low battery power.
Trouble Free Design
•
High strength, extruded aluminum chassis with
protective metal end panels withstands
punishing field conditions.
•
All-metal connectors solidly mounted to the
chassis for durability and RF immunity.
•
Free from "Pin 1" grounding problems.
•
RF filtering on all inputs and outputs.
©1999-2000 Sound Devices, LLC
Advertisement
Table of Contents
Related Manuals for Sound Devices MP-2
Summary of Contents for Sound Devices MP-2
-
Page 1: General Description
MS Matrix, quality components. The MP-2 allows no- the MP-2 is a flexible front end device for compromise performance for any application. professional studio and field applications. Studio, Features High Performance Microphone Inputs •... -
Page 2: Specifications
MP-2 Microphone Preamplifier User Guide and Technical Information Specifications Gain: Limiter: Mic Input to Output, per channel, continuously variable Thresholds independently adjustable from –10 dBu to +18 dBu Output Gain Range 10:1 limiting ratio LINE 16 – 66 dB 5 mS attack time, 100 mS release time TAPE 6 –... -
Page 3: Front Panel Controls, Connectors, And Indicators
6. Tape Return Switch Toggle switch allows external audio to be monitored in the headphones. The center position is MP-2 program audio. The left and right positions monitor tape return audio; the left position is locking, and the right position is momentary. -
Page 4: Input Panel Connectors And Controls
MP-2 operates on two AA batteries. Insert allows external audio sources to be monitored positive (+) end of batteries first. in the MP-2 Headphone circuit. Tip = left, ring 23. External DC Power Input = right, sleeve = ground. Accepts external DC power source (battery 21. -
Page 5: Operational Notes
The two-position high pass (low cut) filter in the Output Circuitry and Tape Output MP-2 is useful for removing excess low frequency Each line level XLR output of the MP-2 uses a energy in audio signals. This excess energy can be discrete, six-transistor, “impedance balanced”... - Page 6 LIMITER switch on the input panel activates both meter brightness (low, normal, or super-bright). channels limiters. Each limiter in the MP-2 is a two- The meter indicates a signal range of 46 dB. From stage circuit; the first stage keeps the input gain left to right the first three LED’s are separated by...
- Page 7 Output drive level – higher output drive levels Battery Power into low impedance inputs increases current For internal power the MP-2 uses two AA sized 1.5- draw. volt batteries. Different batteries have different power capacities depending on their battery Experimentation is recommended to determine...
-
Page 8: Fcc Statement
Warranty Sound Devices, LLC warrants the MP-2 Microphone Preamplier against defects in materials and workmanship for a period of ONE (1) year from date of original retail purchase. This is a non-transferable warranty that extends only to the original purchaser. Sound Devices, LLC will repair or replace the product at its discretion at no charge.
