Page 1: Media Converter
Owner’s Manual 10/100/1000BaseT to 1000BaseFX SC Media Converter Model: N785-001-SC 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support 200912005 93-2950.indd 1 12/28/2009 1:38:03 PM... -
Page 2: Package Contents
Package Contents • N785-001-SC • External Power Supply (Input: 110-265V, 50/60Hz, 0.2A/Output: 5V, 2A) • Owner’s Manual Optional Accessories • N201-Series Cat6 Gigabit Snagless Molded Patch Cable • N506-Series Duplex MMF 50/125 Patch Cable (SC/SC) • N306-Series Duplex MMF 62.5/125 Patch Cable (SC/SC) 200912005 93-2950.indd 2... -
Page 3: Front Panel

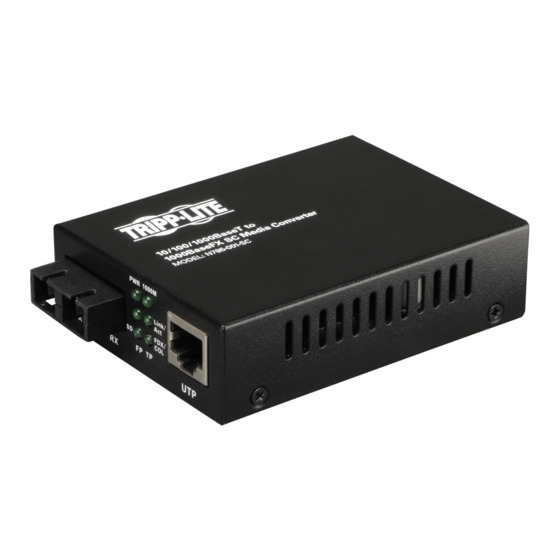

Front Panel Patch Cable Ports: The SC Fiber Patch Cable (50/125 or 62.5/125) connects between these ports and the corresponding ports on another N785-001-SC. Status LEDs: Provide information about the status of the installation. (See the LED Status Table for details.) Cat6 Cable Port: The Cat6 cable connects between this port and the network or network device. -
Page 4: Installation
Connect the RJ45 port on the unit to the network using a Cat6 cable. Connect the SC fiber ports on the unit to another N785-001-SC using 50/125 or 62.5/125 SC fiber patch cable. Connect a network device (workstation, hub, switch, etc.) to the second unit using Cat6 cable. -
Page 5: Led Status Table
LED Status Table LED Indicator LED Status Description Power LED Illuminated Unit is receiving power. (top left LED) Not illuminated Unit is not receiving power. Fiber Port Link/ Illuminated A fiber link is detected. Action LED Blinking Data is being transmitted (middle left LED) or received. -
Page 6: Specifications
Specifications Optical Wavelength (nm) 1310 Optical Power (dbm) -17 ~ -12 Sensitivity (dbm) < -20 Transmission Distance (Km) External Power Supply 110-265V, 50/60Hz, 0.2A (Input) External Power Supply 5V, 2A (Output) Operating Temperature 0° to 60° C (32° to 140° F) Relative Humidity 5% to 90% 200912005 93-2950.indd 6... -
Page 7: Warranty
OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise. - Page 8 WARRANTY REGISTRATION Visit www.tripplite.com/warranty today to register the warranty for your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See web site for details.
