Owner's Manual
Media Converters
Overview
Package Checklist
Model Description
Wiring the Power Inputs
Communication Connection
Dip Switch Setting
Link Fault pass-Through
LED Description
Cable Connection Parameter
Specifications
Note: Follow these instructions and operating procedures to ensure correct performance and to prevent damage to this
Models: N784-001-SC & N784-001-ST
Tripp Lite World Headquarters
1111 W. 35th Street, Chicago IL 60609 USA
(773) 869-1234, www.tripplite.com
unit or to its connected devices.
2
2
2
3
4
4
5
6
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Media Converters N784-001-SC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tripp Lite Media Converters N784-001-SC

Summary of Contents for Tripp Lite Media Converters N784-001-SC

  • Page 1 Link Fault pass-Through LED Description Cable Connection Parameter Specifications Tripp Lite World Headquarters 1111 W. 35th Street, Chicago IL 60609 USA (773) 869-1234, www.tripplite.com Note: Follow these instructions and operating procedures to ensure correct performance and to prevent damage to this...

  • Page 2: Package Checklist

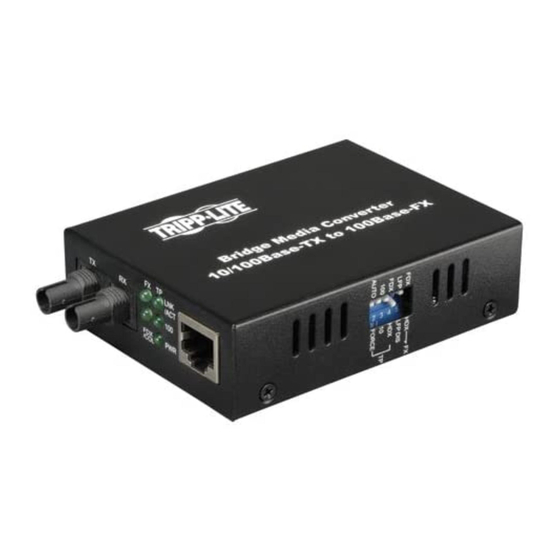

    Overview The N784 Series Media Converter is a standalone physical layer device that converts between 10/100BaseT(X) and 100BaseFX segments of the same network. The converter supports Link Fault Pass-through (LFP) for easy tracing of network link failures, and the LFP function enhances the integrity and conformity of twisted pair (TP)-Fiber linking to make the network easier to maintain.
