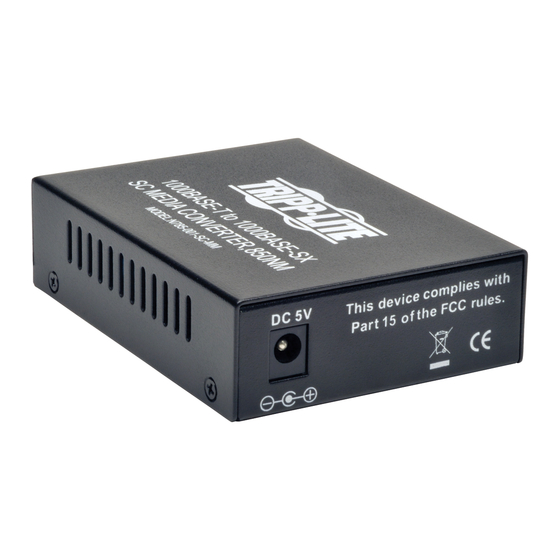

Tripp Lite N784-001-SC-MM Owner's Manual

10/100/1000 media converters
Hide thumbs Also See for N784-001-SC-MM:
Table of Contents

Advertisement

Quick Links

Download this manual
14-05-207-93336D.indd 1
Owner's Manual
Media Converters
Models: N784-001-SC-MM (850nm),
N784-001-SC-15 (1310nm)
10/100/1000
Media Converters
Models: N785-001-LC-MM (850nm),
N785-001-SC-MM (850nm),
N785-001-SC (1310nm)
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an ISOBAR6ULTRA
surge protector—a $50 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
Copyright © 2014 Tripp Lite. All rights reserved.
All trademarks are the property of their respective owners.
10/100
1
6/16/2014 4:47:13 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N784-001-SC-MM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tripp Lite N784-001-SC-MM

Summary of Contents for Tripp Lite N784-001-SC-MM

  • Page 1 You could also win an ISOBAR6ULTRA surge protector—a $50 value! www.tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support Copyright © 2014 Tripp Lite. All rights reserved. All trademarks are the property of their respective owners. 14-05-207-93336D.indd 1 6/16/2014 4:47:13 PM...

  • Page 2: Product Features

    Product Features • N784-001-SC-15 extends a 10/100Mbps Ethernet connection over singlemode fiber cable up to 15 km • N784-001-SC-MM extends a 10/100Mbps Ethernet connection over multimode fiber cable up to 550 m • N785-001-SC extends a 10/100/1000Mbps Ethernet connection over multimode fiber cable up to 2 km •...

  • Page 3: Optional Accessories

    2. The installation diagram on the next page features a N784-001-SC-MM. Connections are the same for all models, with only the specs of the media converter being different. (See the Specifications section in this manual for details on your media converter.)
  • Page 4 Installation Connect the RJ45 port on the media converter to your network using a Cat5e/6 cable. Connect the media converter to a second identical media converter using the appropriate type of fiber cable, making sure to connect the TX port on one unit to the RX port on the other.

  • Page 5: Led Status Table

    LED Status Table Status Description FP – PWR The unit is powered on FP – PWR The unit is not powered on FP – L/A A link is detected between the connected fiber ports FP – L/A Blinking Fiber data transmission is taking place FP –...

  • Page 6: Specifications

    Specifications Specification Optical Wavelength (nm) Multimode (850) Singlemode (1310) Network Speed 10/100 Transmission Distance 550 m 15 km Duplex Mode Optical Output Power Range (dBm) -8 to -3 -15 to -3 ≤-19 ≤-34 Optical Input Power Range (dBm) Power Budget (dBm) Power Supply Input Power Supply Output Operating Temperature...
  • Page 7 nglemode (1310) Multimode (850) Multimode (1310) 10/100/1000 15 km 550 m 2 km Full / Half (Auto-Detect) -15 to -3 -8 to -3 ≤-34 ≤-19 100-240V, 50/60Hz 5V, 1.2A 0° to 60° C (32° to 140° F) -20° to 70° C (-4° to 158° F) 5 to 90% RH, Non-Condensing 25.4 x 93.98 x 71.12 mm (1 x 3.7 x 2.8 inches) 1 lb)

  • Page 8: Warranty And Product Registration

    Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609 USA. Seller will pay return shipping charges. THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT.
  • Page 9 Visit www.tripplite.com/warranty today to register the warranty for your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
  • Page 10 Warranty & Product Registration Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment...
  • Page 11 Notes 14-05-207-93336D.indd 11 6/16/2014 4:47:14 PM...
  • Page 12 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support 14-05-207 93-336D_RevA 14-05-207-93336D.indd 12 6/16/2014 4:47:14 PM...

This manual is also suitable for:

N785-001-lc-mmN784-001-sc-15N785-001-sc-mmN785-001-sc
