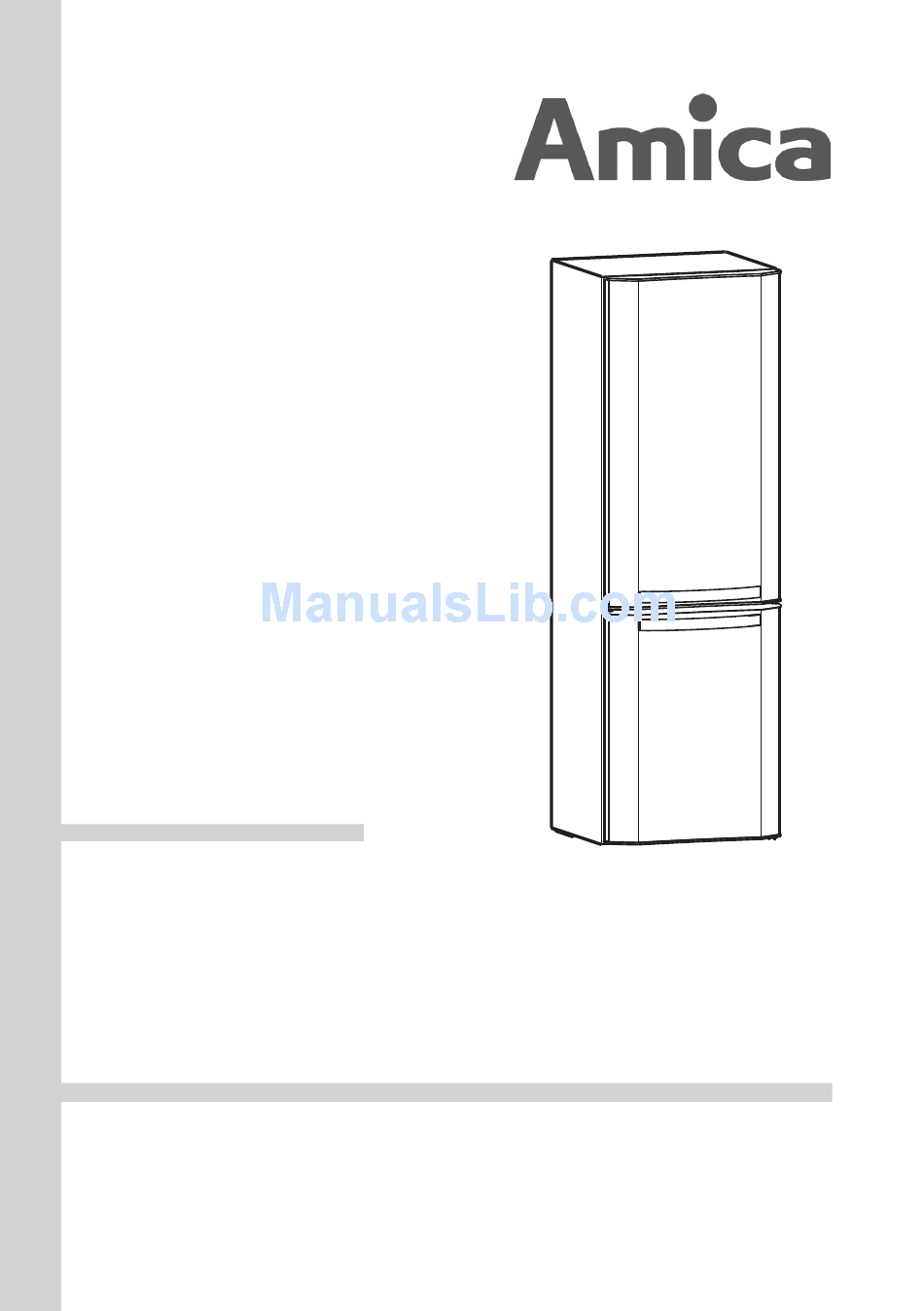

- Page 1 FK312BSW FK312BSX FK322BSW OPERATING MANUAL FRIDGE-FREEZER...
-
Page 2: General Information
GENERAL INFORMATION Dear Customer, This Amica fridge-freezer is a combination of exceptional user-friendliness and excellent efficiency. Prior to dispatch, each unit was carefully checked for its safety and operating capabilities. Before starting the appliance, please read this operating manual carefully. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Construction and equipment of the appliance..........4 Guidelines concerning the safety of use.............7 Installation Installation and operating conditions of the appliance.........9 Change in the door hinging...............11 Operation and Description of the appliance..............13 functions Storage of frozen products................15 Defrosting, washing and maintenance............17 Clearing Trouble-shooting..................19... -
Page 4: Construction And Equipment Of The Appliance
CONSTRUCTION AND EQUIPMENT OF THE APPLIANCE Example: model FK ... electronic control Additional equipment... - Page 5 CONSTRUCTION AND EQUIPMENT OF THE APPLIANCE Control panel Glass Shelf Single bottle holder suspended under the shelf Glass shelf above the vegetable compartment Vegetable compartment Drawer Water discharge Medium door compartment with a lid Medium door shelf 10 - Large door shelf 11 - Small door shelf 12 -...
- Page 6 EQUIPMENT Items of equipment FK322BSW FK312BSW FK312BSX Equipment of the fridge Glass Shelf Glass shelf above the vegeta- ble compartment Single bottle holder suspended under the shelf Vegetable compartment Medium door shelf Large door shelf Small door shelf Vegetable compartment sepa-...
-
Page 7: Guidelines Concerning The Safety Of Use
GUIDELINES CONCERNING THE SAFETY OF USE l The Manufacturer shall not be held l When transporting, moving or placing the fridge-freezer do not liable for the damage arising from tilt it by more than 40° from the the failure to observe the principles vertical position. - Page 8 GUIDELINES CONCERNING THE SAFETY OF USE l Air the room in which the appliance lMake sure you do not damage the is placed for a few minutes (the size cooling system, by punching the re- frigerant pipes in the evaporator or of the room for a product containing breaking the pipes.
-
Page 9: Installation And Operating Conditions Of The Appliance
INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE Installation before using the applian- 5. Make sure the appliance is placed in the horizontal position by screwing in 2 adju- ce for the first time stable front legs (fig. 2) 1. Take the product out of the package, re- move the scotch tapes protecting the door and the equipment. -
Page 10: Mains Connection
INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE It is prohibited to readjust or modify This appliance must be earthed any parts of the unit. It is crucial not The flexible cord (mains lead) to damage the capillary tube visible fitted to this appliance has three in the compressor recess. -
Page 11: Change In The Door Hinging
CHANGE OF THE DOOR HINGING 1. Pull out the plug from the supply socket. 8. Loosen the two screws of the top hinge, 2. Empty the appliance from the foodstuff. rotate the hinge pins in the opposite direction 3. Take out the 2 plugs of the fridge upper and tighten the screws. - Page 12 CHANGE OF THE DOOR HINGING 22. Transfer the sleeve with an interlock to 15. Unscrew 2 bottom hinge fitting bolts using sockets on the opposite side. the cross screwdriver (rys. 12). 23. Refit the fridge door including the middle hinge lock, holding the fridge door, screw the upper hinge in (fig.
-
Page 13: Operation And Functions
OPERATION AND FUNCTIONS Control panel red yellow green electronic control Light switch Temperature selector dial. Operating and control elements: Temperature regulation. lTemperature selector dial - on/off and tem- lTurning the dial to a different setting chan- perature control. ges temperature in both the refrigerator and lYellow indicator light - SuperCool function freezer section. - Page 14 OPERATION AND FUNCTIONS Indicator lights lGreen indicator lamp lights up when the appliance is plugged into an electrical outlet and voltage is present. lRed indicator lamp lights up when chamber temperature is too high. This occurs when temperature has risen above the setting on the temperature dial because the door has been opened for too long or large amounts of food have been placed in the chamber at...
-
Page 15: Storage Of Frozen Products
OPERATION AND FUNCTIONS Storage of food in the fridge-freezer Observe the following recommen- l It is acceptable to place products beyond the natural loading capacity by 20-30 mm. dations to ensure the food remains l Bottom freezer drawer can be removed fresh. - Page 16 OPERATION AND FUNCTIONS l Keep the fresh and warm foodstuff at am- l Bear in mind that the temperature in the bient temperature away from the products, freezer is affected by several factors, which have already been frozen. including the ambient temperature and the quantities of food products in the l We advise not to place more than 2 kg of chamber, frequency of opening the door,...
-
Page 17: Defrosting, Washing And Maintenance
DEFROSTING, WASHING AND MAINTENANCE Defrosting the freezer Defrosting the fridge Frost settles on the rear wall l It is recommended to combine defrosting of the fridge chamber. It is the appliance with washing it. removed automatically. During electronic control l Excessive accumulation of ice on the the defrosting, the condensate, freezing areas impairs the appliance’s which contains contaminants... -
Page 18: Bulb Replacement
DEFROSTING, WASHING AND MAINTENANCE For models: FK312BSW/FK312BSX Bulb replacement 1. Unplug the appliance from the mains soc- 1. Remove the plug from the mains socket. ket. 2. Open the door and remove products. 2. Unscrew the bolt fastening the bulb cover 3. -
Page 19: Trouble-Shooting
TROUBLE-SHOOTING Problems Possible causes Remedies The appliance does Electric circuit rupture - check whether the plug is properly inserted not work into the socket - check whether the power cable of the appliance is not damaged - check whether there is voltage in the socket, by plugging another appliance, e.g. - Page 20 TROUBLE-SHOOTING Problems Possible causes Remedies The compressor is switched - check whether the ambient on too rarely temperature is not lower than 16°C Door gasket inserted incor- - press the gasket in rectly The appliance works conti- Incorrect setting of the adju- - reset the knob to a lower stment knob position...
-
Page 21: Environmental Protection
Environmental protection Elimination / disposal of the equip- Ozone layer protection ment The refrigerants and fo- aming agents, which are If the appliance is no longer in use, cut the 100% free of FCKW and connecting conduit off the used equipment FKW have been used for before its scrapping. -
Page 22: Specification
SPECIFICATION TYPE FK322BSW FK312BSW FK312BSX Manufacturer Amica Wronki S.A. Type of the appliance fridge freezer Energy class Annual power consumption kWh/year) Net usable volume (l) Total Fridge Freezer Freezing chamber star classi- */*** / (**) */*** / (**) fication Storage time (hrs), at no power... - Page 23 SPECIFICATION A++/A+ (=low consumption) to G (=high Climate range means that your set tem- consumption). perature is maintained at ”normal” ambient The energy consumption refers to the temperature. Should the room temperture yearly consumption in kWh, indicated drop significantly below the defined scope, according to DIN EN 153.
- Page 24 Service Help Line 0844 815 8880 For the UK: please call 0818 46 46 46 For Ireland: please call IOAL-914 / 8045393 (11.2009/1)
