Summary of Contents for Jensen A1000

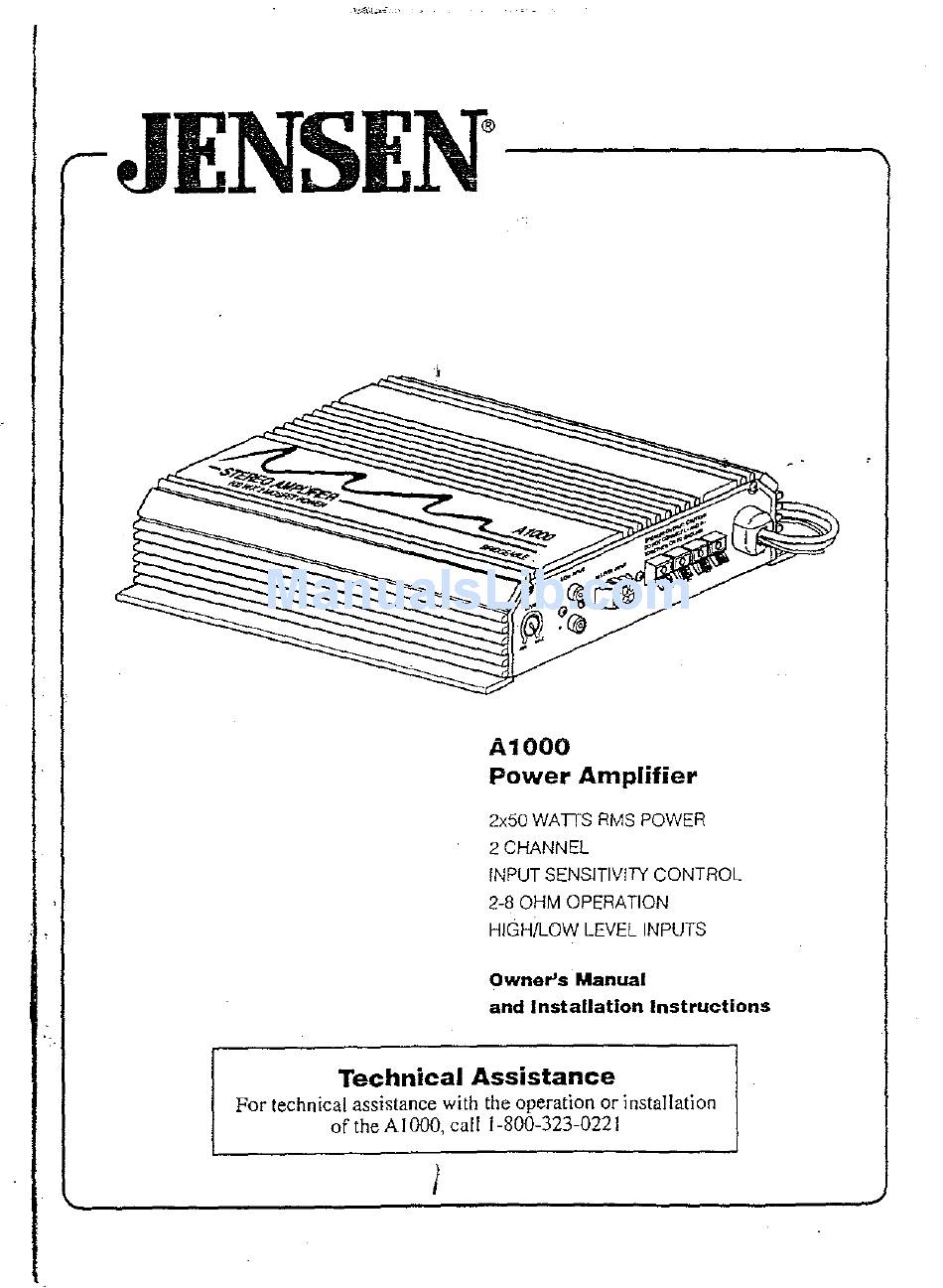

- Page 1 A1000 Power Amplifier 2x50 WAITS RMS POWER 2 CHANNEL INPUT SENSITIVITY CONTROL 2-8 OHM OPERATION HIGHILOW LEVEL INPUTS Owners Manual and Installation Instructions Technical Assistance For technical assistance with the operation or instaIlation of the AI 000, call 1-800-323-0221...
- Page 2 For technical assistance will} the operation or installation of the A 1000 power amplifier, call I For Your Records In case your Jensen amplifier requires service, youlmust have the original. dated bill of saie. If it is necessary to return the unit for any reason, always enclose the bill of sale with the product.
- Page 3 The Jensen AICXX) amplifier provides [he tlexibility to power significantly upgraded speakers such as Jensen component systems and 213-way designs. Jensen offers a full line of loud speakers designed to deliver maximum bass pcrfonnance when used with the A I See your local authorized Jensen dealer for details.
- Page 4 Amplifier A 1000 Inputs and Outputs Input Sensitivity Control Speaker Terminals Adjust the s~nsilivity to the input level. ~:;peakers. Connect to lOW INPUT SPEAKER OUTPUT: CAUTION' DO NOT CONNECT l- A."<O HI lEVEL INPUT TOGEfilER OR TO GROUND . High Level Low Level Input RCA Connectors Input Harness Connect RCA cables from your receiver (if...
- Page 5 • A drill and a 1/8" drill bit Supplied parts and fasteners: • Power, ground, speaker and sensing wire amplifier • A1000 • Solder. a soldering gun and wire nuts electrical tape High level input harness or a set of crimp-on electrical terminals for wiring •...
- Page 6 A1000 Amplifier Wiring Instructions This section explains how to wire the A I power amplifier to your vehicle system. (X){) Important: If wiring connections are made wrong, the unit will not operate properly and it could be damaged. Follow the installation instructions carefully or have the installation handled by an experienced technician.
