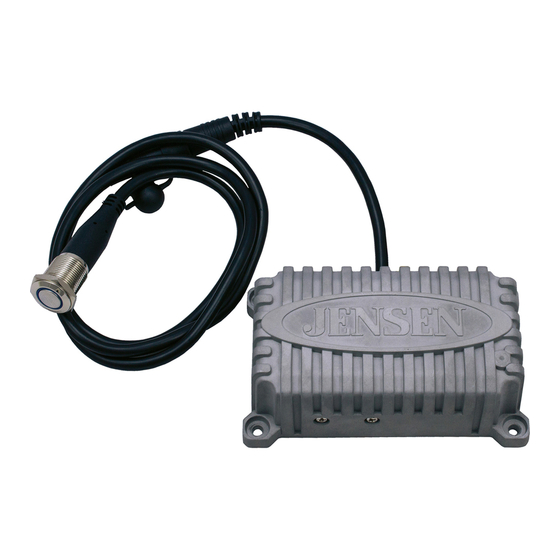

JAHD240BT Waterproof
Heavy Duty Two
Channel
Audio Amplifier
Features
˙
Bluetooth Audio (A2DP)
˙
2 x 40 Watt Max Power Rating
˙
2 x 20 Watt RMS
4 Ω – 8 Ω (ohm) Stable
˙
Frequency Response: 20 Hz – 20 kHz
˙
˙
Epoxy Potted Enclosure
˙
10 Amp Fuse in Waterproof Holder
˙
Waterproof to IPx6
˙
Corrosion Resistant to ASTM B117
Wiring
Black
Ground
Yellow
+12V Battery
Red
+12V Switched
Gray
Right Front Speaker +
Right Front Speaker –
Gray / Black
White
Left Front Speaker +
Left Front Speaker –
White / Black
Power/Pairing Switch
Installation
1. Choose a smooth, flat, sturdy location that
will allow the JAHD240BT amplifier to be
mounted securely and allow enough room
to run the connection wires.
2. Mount amplifier using #8 stainless steel
screws (not included)
3. Drill 5/8" hole in desired location, install
switch and route cable from desired location
to the amplifier
4. Route and connect power, ground, and
speaker cables (see reverse page)
Important:
Do not mount unit where it can be submerged
Do not mount near engine or areas exposed to
excessive heat

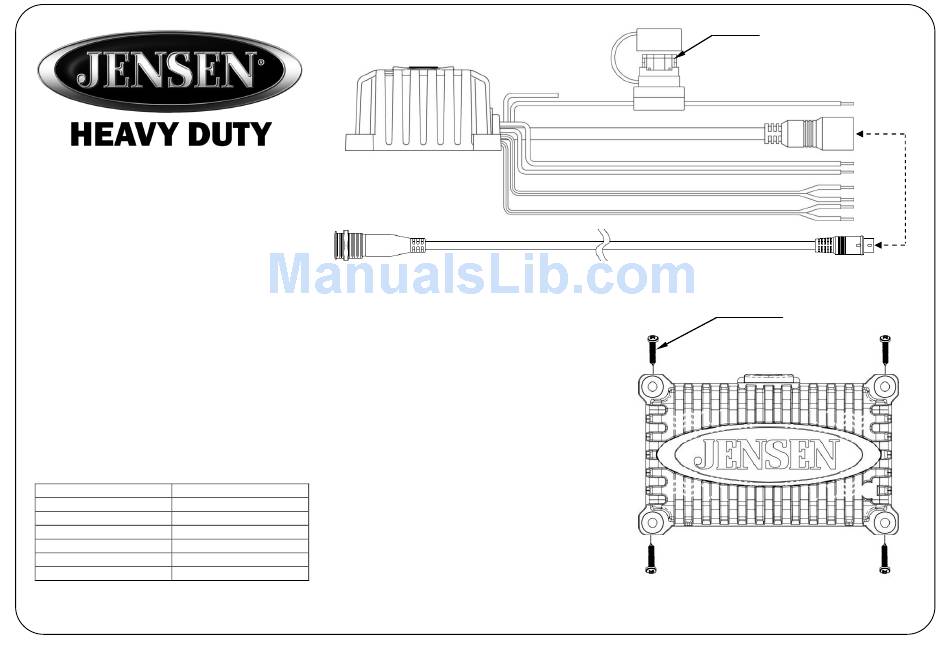

Bluetooth Antenna
DO NOT CUT/CONNECT
Switch Cable
10 A Fuse
Yellow
Switch Cable
Red
Black
Gray/Black
Gray
White/Black
White
#8 Stainless
steel screws
