Summary of Contents for Jensen PA500

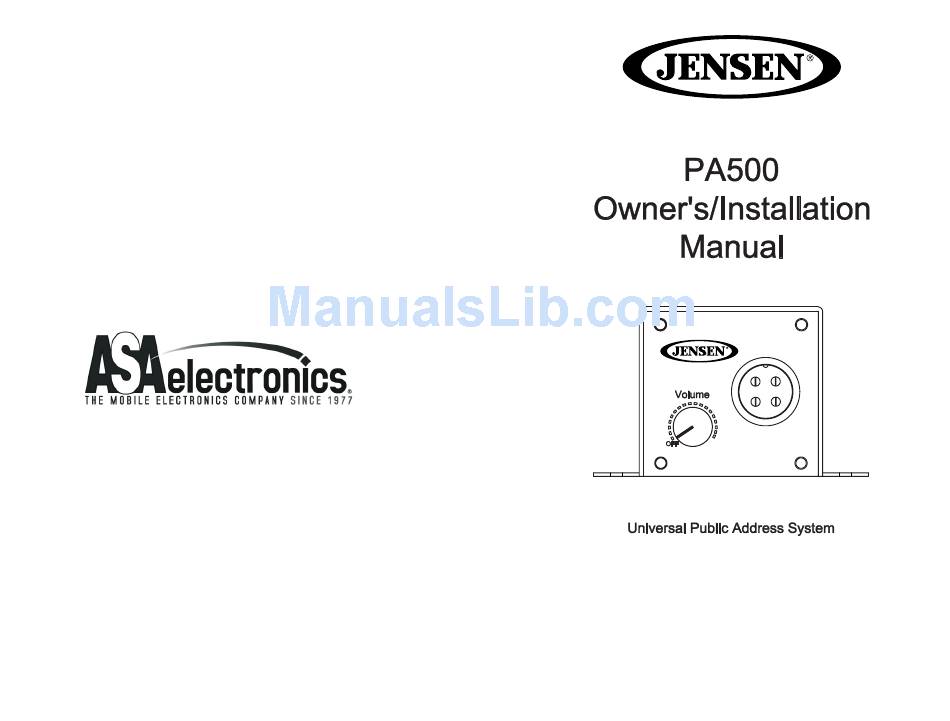

- Page 1 ASA ELECTRONICS 2602 Marina Drive Elkhart, IN 46514 1-800-688-3135 www.asaelectronics.com...
- Page 2 There is no need to adjust PA volume at the radio since the PA volume can be set using the volume/gain control on the PA500 itself. If the PA500 is installed in an enclosure the volume level can be pre-set by the installer.
- Page 3 Manual Contents... Package Contents ... Panel Cutout(Optional Installation) ... Optional Flange Mount Installation... Typical Wiring Connections... PA500 Wiring ... PA500 Applications (Extensions and Microphone compatibility) Speaker Connections ... Troubleshooting ... Specifications ... Installation Notes ...
- Page 5 3 Pair- 4Ohm Speakers 4 Pair- 4Ohm Speakers 5 Pair- 4Ohm Speakers 4.8 Ohm 4.8 Ohm...
- Page 6 Boom Microphone P/N JMICBOM Boom Microphone with Foot Pedal P/N JMICBOMFP ※ The PA500 is also compatible with older VOYAGER and JENSEN Microphones such as the BVMH01 and BVMH01M...
- Page 7 JENSEN PA500 Applications Description Part Number Hand held Microphone Boom Microphone with foot pedal 20 Ft Extension Cable P/N 1401003 3 Ft Extension Cable P/N 1401020 Hand Held Microphone P/N JMICHND Hostess Microphone P/N JMICHST...
