Panther H7544 Instruction Sheet

Introduction
Made for moving plywood and long lumber, this
500 lb. capacity material cart has outrigger style
5" casters for maximum stability, and measures
42" long x 28 ⁄ " wide x 35
1
2
deck measures 38 ⁄ " long x 16" wide.
1
2
Inventory
Base Assembly .................................................. 1
Tubular Cart Sides ............................................ 2
5" Casters .......................................................... 2
5" Left-Side Braking Casters ............................. 2
Hex Bolts M8-1.25 x 20 (Casters) ................... 16
Lock Washers 8mm (Casters) ......................... 16
Flat Washers 8mm (Casters) .......................... 16
Hex Nuts M8-1.25 (Casters) ........................... 16
Hex Bolts M8-1.25 x 40 (Cart Sides) ................ 4
Fender Washers 8 x 35 x 3mm (Cart Sides) .... 4
Assembly
1.
Attach the casters to the base assembly
with the M8-1.25 x 20 hex bolts, hex nuts,
flat washers and lock washers, as shown
in Figure 2. Both braking casters should
be installed at the same end of the cart, as
shown in Figure 1.
2. Slide the tubular ends of the cart sides into
the support sockets located on the cart
assembly, and fasten with the M8-1.25 x 40
hex bolts and fender washers as shown in
Figure 2.
3.
If you have difficulty moving your cart, check
to see if the casters are locked in the horizon-
tal "brake" position. Simply move the brake
into the diagonal "free" position (Figure 3) to
restore movement to the caster.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ " high. The plywood
3
8
COPYRIGHT © MAY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#JK8258 PRINTED IN CHINA
MODEL H7544
MATERIAL CART
INSTRUCTION SHEET

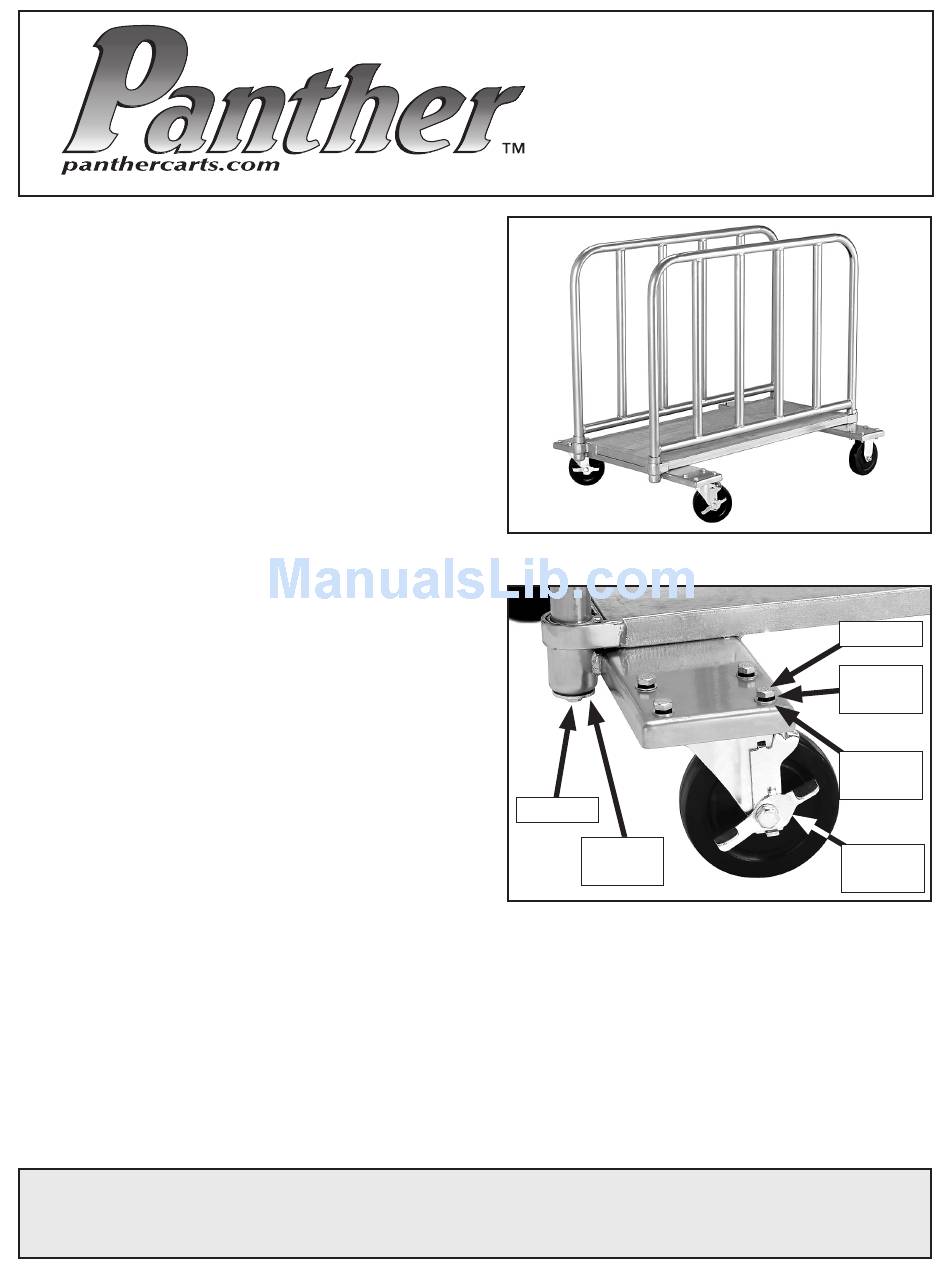

Figure 1.
Hex Bolt
Fender
Washer
Model H7544 detail, showing caster in
Figure 2.
diagonal "free" position.
If you need help with your new material cart, call
our Tech Support at: (570) 546-9663.
Model H7544.
Hex Bolt
Lock
Washer
Flat
Washer
Caster
Brake
