Panther H3034 Instruction Sheet

Large wheel nursery push cart

Download this manual

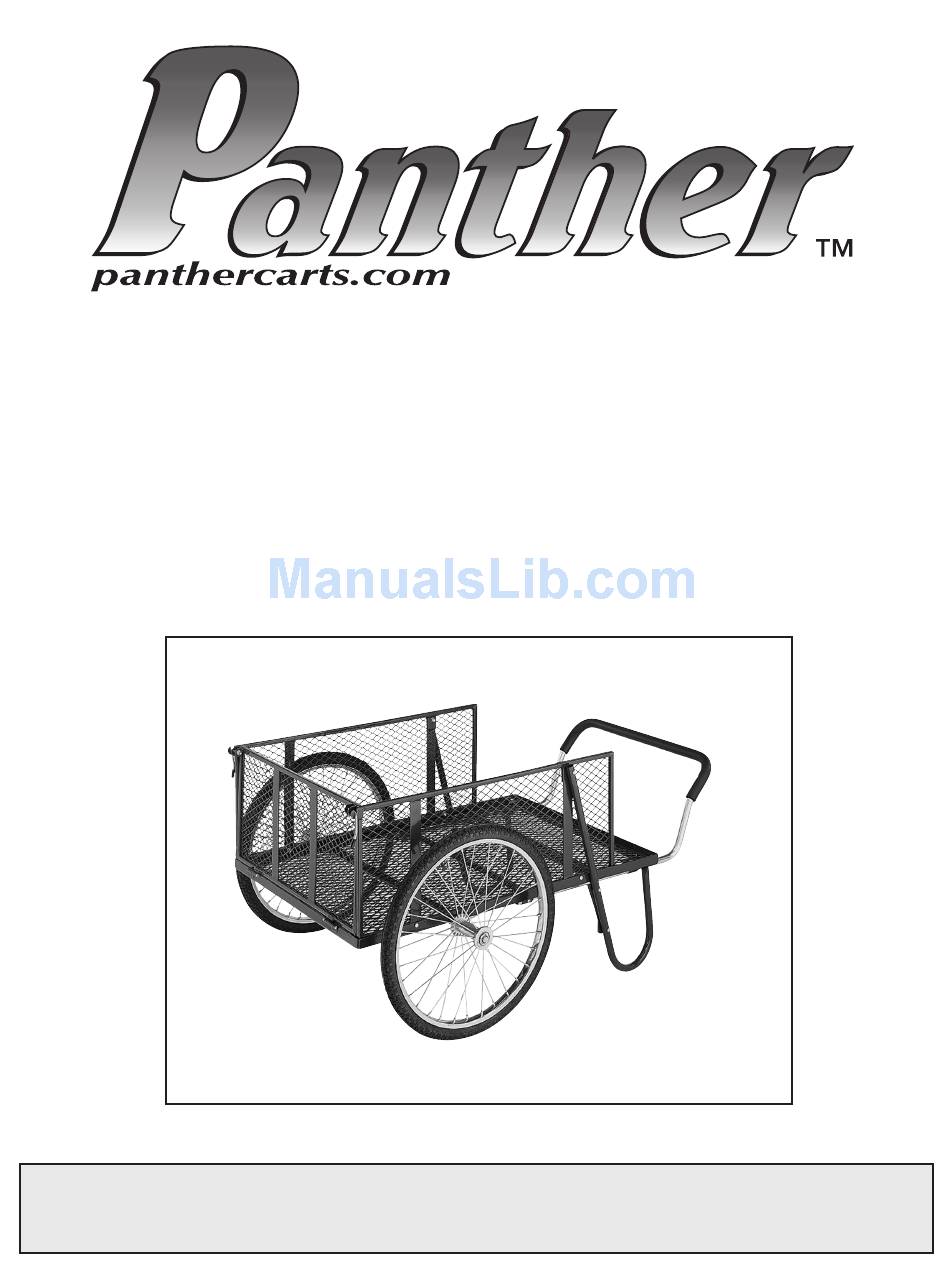

LARGE WHEEL NURSERY

PUSH CART

MODEL H3034

INSTRUCTION SHEET

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CA6393 PRINTED IN CHINA

Page 1 PUSH CART MODEL H3034 INSTRUCTION SHEET COPYRIGHT © JUNE, 2004 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #CA6393 PRINTED IN CHINA...
Page 2 PARTS INVENTORY The Model H3034 was carefully packed when it left our warehouse. If you discover this cart is damaged after you have signed for delivery, please immediately call Customer Service at (570) 546-9663 for advice. Save the containers and all packing materials for possible inspection by the carrier or its agent.
Page 3 ASSEMBLY INSTRUCTIONS Slide the handle through the handle housing When assembling the Model H3034, tighten all rings and fasten with M8-1.25 x 40 hex bolts, nuts and bolts finger tight, then, when the cart is and lock nuts for the ends, and M8-1.25 x assembled, tighten all nuts and bolts firmly.
Page 4 H3034 Parts Breakdown and List 14, 17, 18 15, 17, 18 16, 17, 18 14,17,18 19, 20 11, 12 PART# DESCRIPTION PART# DESCRIPTION PH3034001 FENCE PH3034012 COTTER PIN 4MM X 42MM PB03M HEX BOLT M8-1.25 X 16 PH3034002 TAILGATE PB15M HEX BOLT M8-1.25 X 40 PH3034003 HANDLE...
