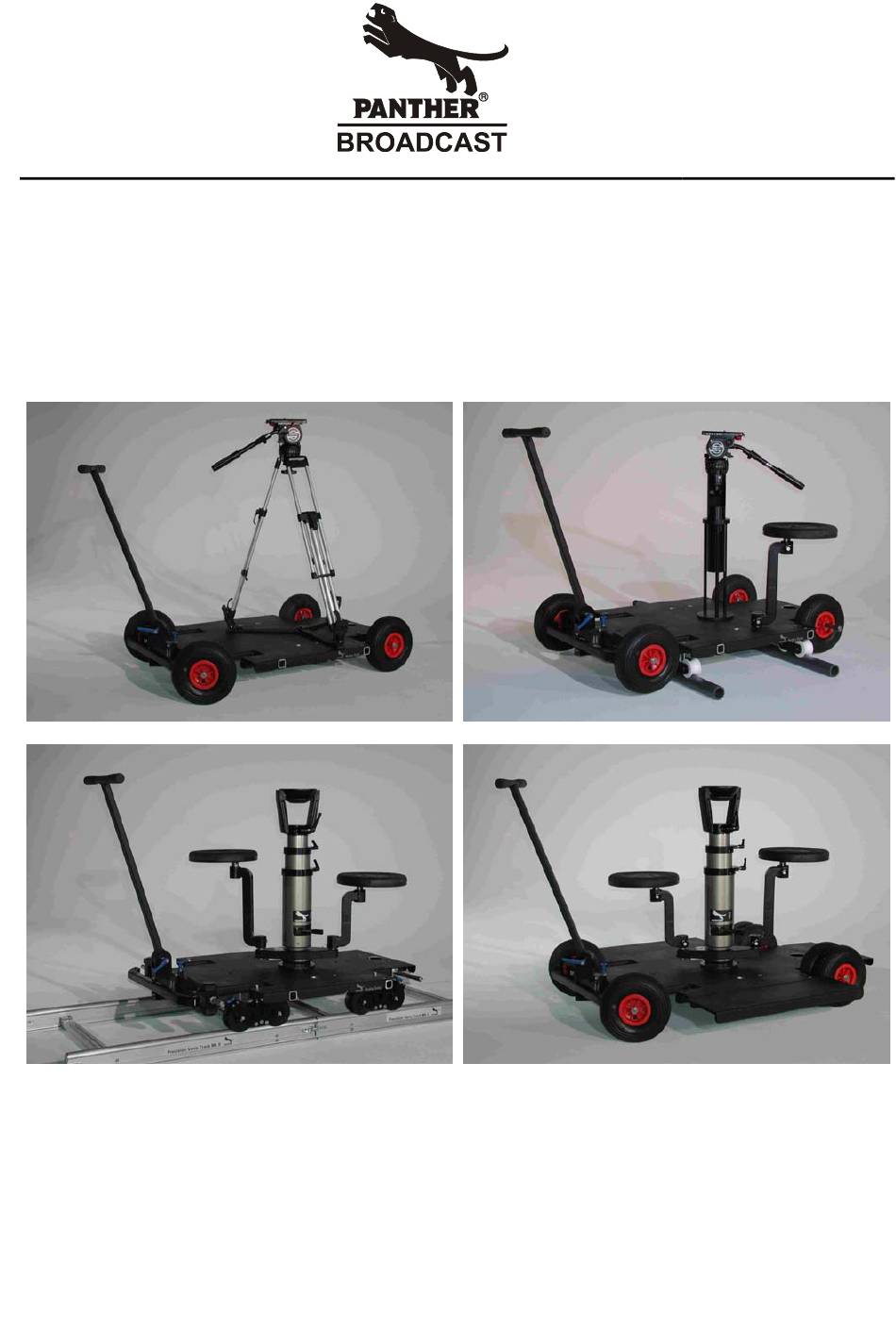

- Page 1 I n s t r u c t i o n M a n u a l Husky Dolly...
-
Page 2: Safety Instructions
1. Please use the dolly only after you have read and understood the Manual. You must follow the safety instructions at all times. 2. The dolly must only be used by qualified, experienced staff. Panther GmbH offer training seminars , the participants will receive a thorough training and a certificate for each workshop. -
Page 3: Assembling Instructions
Assembling instructions: Remove the 2 Allan keys, that can be found inside the hinges in the centre of the folded up Husky. Position the steering shaft and The Husky can now be Replace the 2 Allan keys tighten the blue lever. flipped open. - Page 4 56cm Spur 62cm Spur The Husky dolly can be used with all standard tracks, e.g. Precision Vario Track If the track wheels are not needed they can be kept underneath the platform.
- Page 5 Version 1. It is strictly forbidden to use pneumatic tires with other Pixy versions. The pneumatic tires might yield and cause the crane to fall over. The Husky dolly can be used with the following Pixy crane versions: Pixy Version 1 on Bazooka (138733)
- Page 6 - more safety due to screwed tripod spyder. Ready for action: Husky dolly with crane axles kit. 1. Put two crane axles into the frame of Husky dolly (A) one on each side. 2. Put tripod spyder (one on each side) on top of dolly plattform and screw them thight.
- Page 7 Husky Dolly Configurator: code Description Beschreibung 138576 Husky Dolly Husky Dolly 138609 Platform rear Plattform hinten 138696 Platform left Plattform links 138605 Platform right Plattform rechts 139639 Push bar Schiebestange 138579 Twin wheel (2pcs.= 1set) Zwillingsrad (2St.= 1Satz) 139645 Studio wheel (4pcs.= 1set) Studiorad (4St.= 1Satz)
