Page 1: User Guide

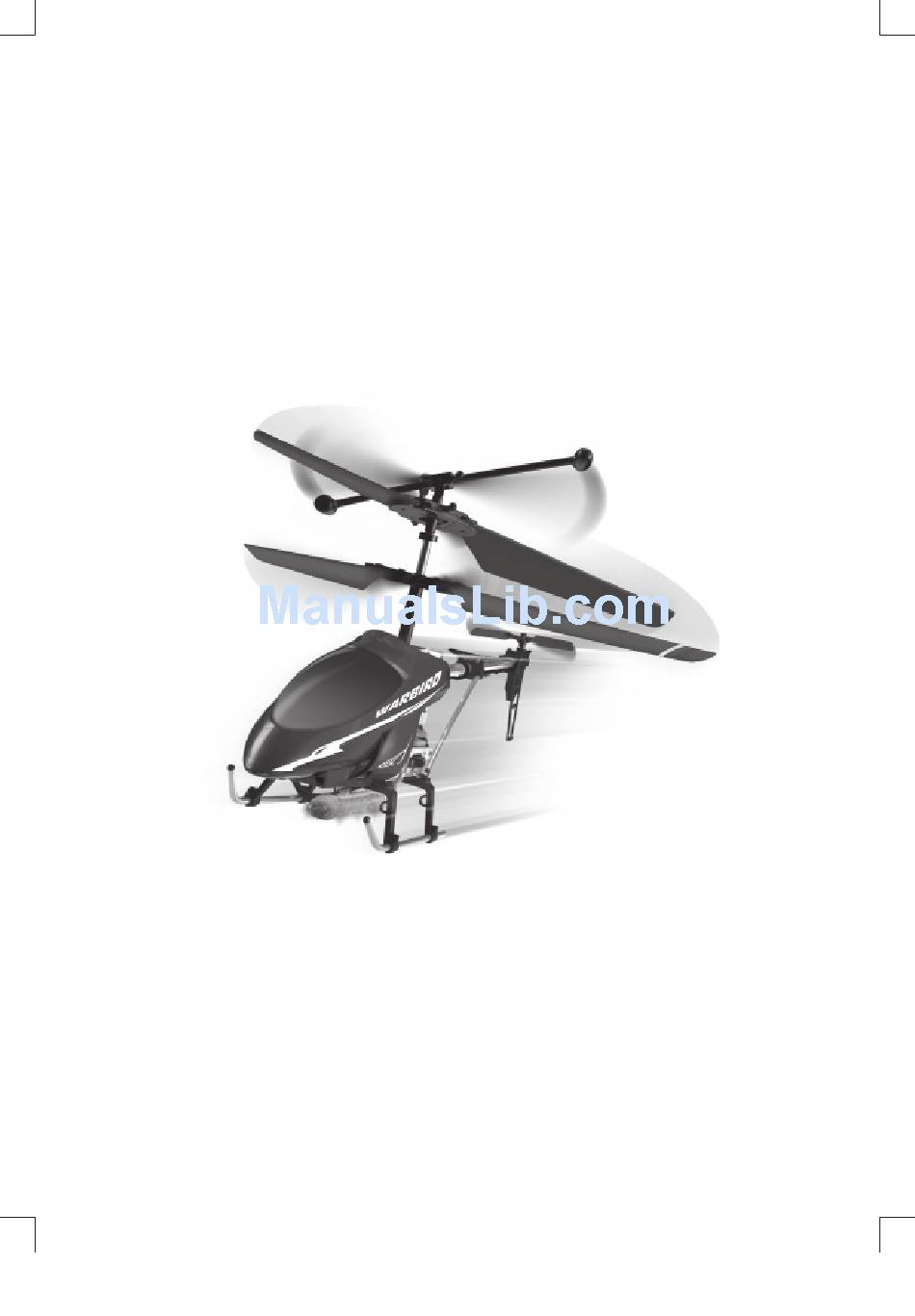

War Bird Remote Control Helicopter User Guide SAVE THESE INSTRUCTIONS. READ COMPLETE INSTRUCTIONS BEFORE USE. #XC9970 © 2011 EB Excalibur, Inc. XC9970IS01EXCRA.indd 1 XC9970IS01EXCRA.indd 1 7/28/11 2:35 PM 7/28/11 2:35 PM XC9970IS01EXCRA 5 x 7 7/26/11; revised 7/28/11... -
Page 2: Controller Layout
HELICOPTER LAYOUT Stabilizer Main Rotor Blade Main Rotor Blade Tail Rotor Landing Skid Charging Socket Power Indicator Power Switch CONTROLLER LAYOUT Direction Throttle Joystick Stick Trim Control Power Switch Switch Missile Light Charger Switch Charging Plug Charger Main Blade A Main Blade B Tail Blade C XC9970IS01EXCRA.indd 2... -
Page 3: Battery Installation And Charging
ongratulations on your new EXRC purchase! EXRC pilots experience superior remote control fl ight and excellence in the look and feel of our products while commanding the skies. Now that you are an honorary EXRC pilot, we recommend reading through this manual thoroughly before attempting your fi rst fl ight. -
Page 4: Flying Your Helicopter
Charging the Helicopter: Turn the helicopter power OFF. Insert the charging plug into the socket on the helicopter. Then plug the charger into the wall. The LED will be off when charging. When the product is fully charged, the Requires approximately 120 minutes LED will turn on. -
Page 5: Flight Conditions
Move the Right joystick up or down to move the helicopter forward or backward. DIRECTION CONTROL - TRIM KNOB Located on the top of the Controller is the Trim Control Switch. When the helicopter does not fl y straight, use the Trim Control to adjust the alignment. 1. -
Page 6: Safety Tips
CONTROL TIPS • It is best to start with both joysticks on the remote control in the middle position. Do not immediately push into extreme positions. Start by gently easing the joystick into the position of the direction you would like to go. •... -
Page 7: Care And Handling
TROUBLESHOOTING (continued) Problem Correction Cause Interference of Avoid all other remote controlled Loss of control another remote devices running on the same controlled device channel. Interference by Change environment to better other conditions suited conditions. such as lighting Incorrect trim Adjust the trim as shown above Helicopter adjustment... -
Page 8: Battery Installation
• Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. • Consult the dealer or an experienced radio technician for help. EB Excalibur, Inc. Miami, Florida www.EBExcalibur.com service@ebexcalibur.com Distributed in the United Kingdom by: EB Brands UK, Worcester WR4 9FA Actual product may diff er slightly from photography.
