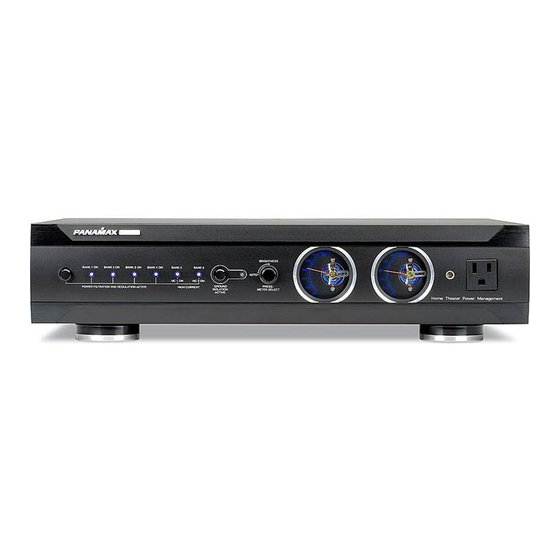

Panamax MAX 7500-PRO Owner's Manual

Home theater power management
Hide thumbs Also See for MAX 7500-PRO:
Table of Contents

Advertisement

Quick Links

Download this manual

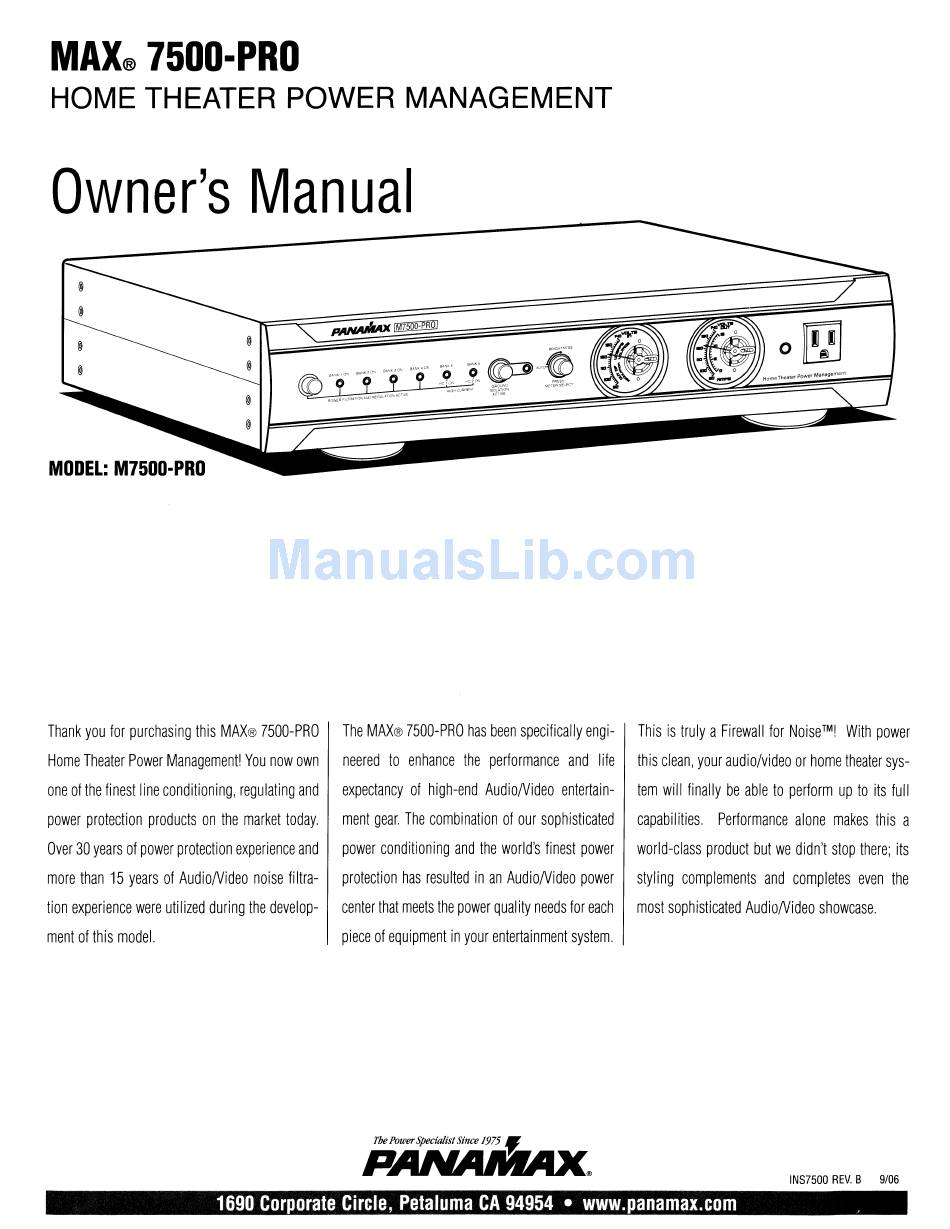

MAX® 7500-PRO
HOME THEATER POWER MANAGEMENT
Owner's Manual
MODEL: M7500-PRO
Thank you for purchasing this MAX® 7500-PRO
Home Theater Power Management! You now own
one of the finest line conditioning, regulating and
power protection products on the market today.
Over 30 years of power protection experience and
more than 15 years of AudioNideo noise filtra-
tion experience were utilized during the develop-
ment of this model.
The MAX® 7500-PRO has been specifically engi-
neered to enhance the performance and life
expectancy of high-end AudioNideo entertain-
ment gear. The combination of our sophisticated
power conditioning and the world's finest power
protection has resulted in an AudioNideo power
center that meets the power quality needs for each
piece of equipment in your entertainment system.
This is truly a Firewall for Noise™! With power
this clean, your audio/video or home theater sys-
tem will finally be able to perform up to its full
capabilities. Performance alone makes this a
world-class product but we didn't stop there; its
styling complements and completes even the
most sophisticated AudioNideo showcase.
INS7500 REV. B
9/06
1690 Corporate Circle, Petaluma CA 94954 • www.panamax.com
,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX 7500-PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panamax MAX 7500-PRO

Summary of Contents for Panamax MAX 7500-PRO

  • Page 1 AudioNideo showcase. piece of equipment in your entertainment system. ment of this model. INS7500 REV. B 9/06 1690 Corporate Circle, Petaluma CA 94954 • www.panamax.com...

  • Page 2: Table Of Contents

    If the M7500-PRO is installed in a rack, this "blank" must be installed mounting option directly below the M7500-PRO to ensure proper ventilation. Please verify that you have received all these items. If not, contact Panamax. USA & Canada (800) 472-5555. (707) 283-5900 • Fax (707) 283-5901...

  • Page 3: Important Safety Instructions

    PANAMAX, the Panamax logo and MAX are registered US trademarks of Panamax. ACRegenerator, Firewall for Noise, SurgeGate Plus, Protect or Disconnect and SignalPerfect are trademarks of PANAMAX. SIDACtor is a registered US trademark of Teccor Electronics, Inc. TiVo is a trademark of TiVo, Inc.

  • Page 4: Introduction

    Please finish reading the transformer. This gives you Balanced Power instructions, install the MAX® 7500-Pro and with a common ground reference. enjoy the full potential of your entertainment system . 1690 Corporate Circle, Petaluma CA 94954 • www.panamax.com...

  • Page 5: Connection Diagram

    CONNECTION DIAGRAM Typical AC Power, RS232 and 12V Trigger Connections AMPLIFIER HOME AUTOMATION CONTROL 1000 AUDIO VIDEO RECEIVER 0 0 0 PROPERLY GROUNDED AC OUTLET SUBWOOFER CD PLAYER PVR (TiVol Basic Signal Line Connections DUAL LNB SATELLITE DISH CATV ! ._- SATELLITE RECEIVER PVR (TiVo) 1 0 0 0...

  • Page 6: Feature Overview

    Contact Panamax for availability of alternate 16. Lamp TCPIIP interface. 12. DC Trigger Output: 13. Oullet Delay Switches: 3.5mm Receptacle: USB jack (1/8") Mini-Plug jack.

  • Page 7: Feature Details

    When the movie thunders with a drawn by the MAX 7500-Pro and its connected terrific explosion or when the music reaches aclimac- tic crescendo, an amplifier has to rapidly draw large equipment (0-15A) amounts of current to replenish its capacitors.

  • Page 8: Convenience Lamp

    There are two separate circuit breakers on the back regardless of what "mode" it occurs in. Even equip- panel of the MAX 7500-Pro The main circuit ment with ungrounded, 2-blade plugs, receives clean breaker will trip only if the total current draw power.

  • Page 9: Telephone Line Protection

    Connect atelephone cable from the wall jack outlet 2 3 4 5 6 7 8 power to protect equipment from damage. Once the to the Line In (RJ-11) jack on the MAX 7500-Pro, RJ-45 voltage returns to asafe level, the MAX 7500-Pro will then connect asecond telephone cable from either automatically reconnect the power.

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS GENERAL DC TRIGGER OUTPUT Dimensions 17" W 12.75" D 3.5" H, (4.1" Hincluding feet) Voltage <12V Weight. Curren!.. . <400 mA 36Ibs. Short-circuit protection..... ,.. ,.,..' ,10 seconds Delay on output..,..AC POWER: Line Voltage 120V, 60Hz Clamping LeveL ±...
  • Page 11 MAX PRO-SERIES Communication/Configuration Specifications 1. OVERVIEW The M7500-PRO has a RS232 interface that allows it to communicate with a wide variety of equipment as well as enable custom DB9 Pinout Diagram operating configurations to be programmed into the unit. @@@CVCD The purpose of this document is to outline the command set used to communicate with the M7500-PRO.
  • Page 12 MAX PRO-SERIES Communication/Configuration Specifications (continued) Command String Action Response !SET_BRIGHT x<CR> Sets the voltmeter, ammeter and LED If x is valid, $BRIGHTNESS x<CR> 110 -1001 brightness to x% If x is invalid, $INVALlD_PARAMETER<CR> Example: !SETBRIGHT 75<CR> (sets meter brightness to 75%) !SET_TRIGGER bank triggersource<CR>...
  • Page 13 MAX PRO-SERIES Communication/Configuration Specifications (continued) Command String Action Response !SETJEEDBACK mode<CR> Sets the feedback to ON (unsolicited) or OFF If mode ON, $FEEDBACK ON<CR> (polled), When ON, a message will be sent to mode ON, OFF} the controller every time the status of an input If mode OFF, $FEEDBACK OFF<CR>...

  • Page 14: Rs-232 Command Specification

    MAX PRO-SERIES Communication/Configuration Specifications (continued) QUERIES Query Description Response ?ID<CR> Request that the unit identify itself. $PANAMAX<CR> $MAX 74/7500-PRO<CR> $FIRMWARE revision<CR> ?TRIGSTAT<CR> Request the onloff status of the front panel if front panel button is ON, $BUnON ON<CR> button and input trigger.
  • Page 15 QUERIES (continued) Query Description Response Request a list of all configurable $TRIGGER FOR 1 = lriggersource<CR> parameters and cu rrent settings. $TRIGGER FOR 2 = triggersource<CR> $TRIGGER FOR 3 =lriggersource<CR> $TRIGGER FOR 4 = lriggersource<CR> $TRIGGER FOR HC1 = lriggersource<CR> $TRIGGER FOR HC2 = lriggersource<CR>...

  • Page 16: Troubleshooting

    There is an audible buzz/hum coming Check to see if the MAX 7500-Pro is in an from my Max 7500-Pro. What is the The four Isolation Transformer outlets share the unsafe voltage condition by looking to see if the...

  • Page 17: Warranties

    Panamax Power Conditioner Limited Connected Equipment Protection Warranty Valid only in the United States and Canada. It is the policy of Panamax that it will, at its 3. NOTIFICATION: You must notify Panamax Panamax reserves the right to inspect the dam- or controversy between you and Panamax.
  • Page 19 SUPPLEMENT TO PAGE 3 IMPORTANT SAFETY INSTRUCTIONS 5. WARNING: Do not use this apparatus near water. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 14. This device must be connected to a main socket outlet with a protective earthing connection.
  • Page 21 =-LIGMT...
