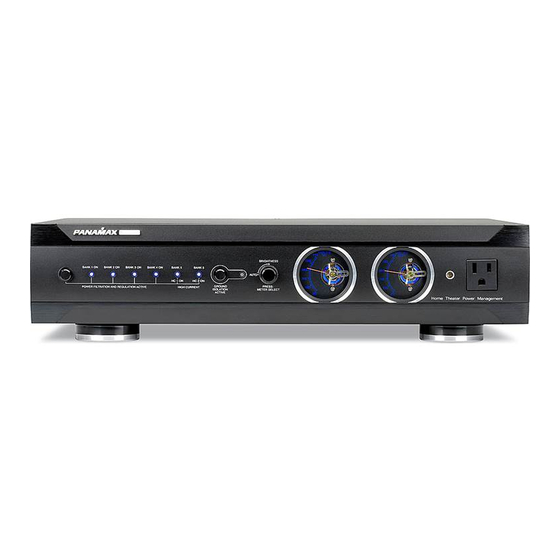

Panamax MAX 7500-PRO Owner's Manual

Home theater power management
Hide thumbs Also See for MAX 7500-PRO:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
MAX
7500-PRO
®
HOME THEATER POWER MANAGEMENT
Owner's Manual
MODEL: M7500-PRO
Thank you for purchasing this MAX
Home Theater Power Management! You now own
one of the finest line conditioning, regulating and
power protection products on the market today.
Over 30 years of power protection experience and
more than 15 years of Audio/Video noise filtra-
tion experience were utilized during the develop-
ment of this model.
7500-PRO
The MAX
®
neered to enhance the performance and life
expectancy of high-end Audio/Video entertain-
ment gear. The combination of our sophisticated
power conditioning and the world's finest power
protection has resulted in an Audio/Video power
center that meets the power quality needs for each
piece of equipment in your entertainment system.
1690 Corporate Circle, Petaluma CA 94954 • www.panamax.com
7500-PRO has been specifically engi-
®
This is truly a Firewall for Noise™! With power
this clean, your audio/video or home theater sys-
tem will finally be able to perform up to its full
capabilities. Performance alone makes this a
world-class product but we didn't stop there; its
styling complements and completes even the
most sophisticated Audio/Video showcase.
INS7500 REV. C
9/06

Advertisement

Table of Contents
loading

Related Manuals for Panamax MAX 7500-PRO

Summary of Contents for Panamax MAX 7500-PRO

  • Page 1 Over 30 years of power protection experience and more than 15 years of Audio/Video noise filtra- tion experience were utilized during the develop- ment of this model. 1690 Corporate Circle, Petaluma CA 94954 • www.panamax.com The MAX 7500-PRO has been specifically engi- ®...

  • Page 2: Table Of Contents

    2 - Rack ears w/ screws for rack mounting option Please verify that you have received all these items. If not, contact Panamax. USA & Canada (800) 472-5555 • (707) 283-5900 • Fax (707) 283-5901 Convenience Lamp...6 Voltage Sense Triggers...6 Isolation Transformer Circuit Breaker...6...

  • Page 3: Important Safety Instructions

    PANAMAX, the Panamax logo and MAX are registered US trademarks of Panamax. ACRegenerator, Firewall for Noise, SurgeGate Plus, Protect or Disconnect and SignalPerfect are trademarks of PANAMAX. SIDACtor is a registered US trademark of Teccor Electronics, Inc. TiVo is a trademark of TiVo, Inc.

  • Page 4: Introduction

    This gives you Balanced Power with a common ground reference. 1690 Corporate Circle, Petaluma CA 94954 • www.panamax.com In Isolated ground mode, the ground pin of each outlet on banks 3 and 4 is connected to the center tap of the isolation transformer, and is isolated from the common ground.

  • Page 5: Connection Diagram

    CONNECTION DIAGRAM STEP 1 Typical AC Power, RS232 and 12V Trigger Connections HOME AUTOMATION CONTROL AUDIO VIDEO RECEIVER 15 AMP CIRCUIT BREAKER GROUND HD CABLE HD SAT MAIN POWER 120VAC/15A PROPERLY GROUNDED AC OUTLET PVR (TiVo) STEP 2 Basic Signal Line Connections 15 AMP CIRCUIT BREAKER BANK 1 ALWAYS ON BANK 2 SWITCHED...

  • Page 6: Feature Overview

    Detachable power cord ground leads connects to this recep- tacle. 1690 Corporate Circle, Petaluma CA 94954 • www.panamax.com 3. Ground Isolation: 5. Voltmeter: Controls the ground connec- Backlit analog meter displays the incoming voltage between tion of banks 3 and 4.

  • Page 7: Feature Details

    (90-140V). In the second mode, the meter displays “Amps”. This amperage reading is measuring the total current drawn by the MAX 7500-Pro and its connected equipment (0-15A). The Brightness Control consists of a rotary poten-...

  • Page 8: Regulated Outlet Banks 1 And 2

    2-blade plugs, receives clean power. Convenience Lamp: The convenience lamp included with your MAX RENT SATELLITE CATV / ANT 7500-Pro plugs into an industry standard USB jack on SATELLITE 1 SATELLITE 2 CABLE 1 CABLE 2 CIRCUIT BREAKER BANKS 3 AND 4...

  • Page 9: Telephone Line Protection

    To protect a telephone jack: Connect a telephone cable from the wall jack outlet 1 2 3 4 5 6 7 8 to the Line In (RJ-11) jack on the MAX 7500-Pro, RJ-45 then connect a second telephone cable from either the Equipment 1 (RJ-11) or Equipment 2 (RJ-11) jack on the MAX 7500-Pro to the equipment’s phone...

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS GENERAL Dimensions...17” W x 12.75” D x 3.5” H, (4.1” H including feet) Weight...36 lbs. AC CIRCUIT PROTECTION AND FILTRATION AC POWER: Line Voltage...120V, 60Hz Regulation Range...100V-135V Regulated Output...120V ± 2V Total Current Capacity...15 A Surge Suppression Rating...330V Protection Modes...
  • Page 11 MAX PRO-SERIES Communication/Configuration Specifications 1. OVERVIEW The M7500-PRO has a RS232 interface that allows it to communicate with a wide variety of equipment as well as enable custom operating configurations to be programmed into the unit. The purpose of this document is to outline the command set used to communicate with the M7500-PRO. Commands and responses are in the form of ASCII character strings terminated with ASCII 13, line feed (ASCII 10) or NULL (ASCIØ).
  • Page 12 MAX PRO-SERIES Communication/Configuration Specifications (continued) Command String !SET_BRIGHT x<CR> x = {10 -100} Example: !SETBRIGHT 75<CR> (sets meter brightness to 75%) !SET_TRIGGER bank triggersource<CR> bank = { 1, 2, 3, 4,HC1, HC2, TRIGOUT} triggersource = { NONE, BUTTON, TRIGIN} where NONE = Outlet bank is always ON, trigger output is OFF (RS232 only) BUTTON = Trigger on front panel button.
  • Page 13 MAX PRO-SERIES Communication/Configuration Specifications (continued) Command String !SET_FEEDBACK mode<CR> mode = { ON, OFF } 1.10 !SET_LINEFEED mode<CR> mode = { ON, OFF } 1.11 !RESET_ALL<CR> USA & Canada (800) 472-5555 • (707) 283-5900 • Fax (707) 283-5901 Action Sets the feedback to ON (unsolicited) or OFF (polled).

  • Page 14: Rs-232 Command Specification

    Request a list of all commands and queries. Response $PANAMAX<CR> $MAX 74/7500-PRO<CR> $FIRMWARE revision<CR> if front panel button is ON, $BUTTON = ON<CR> if front panel button is OFF, $BUTTON = OFF<CR> if input trigger is ON, $TRIGIN = ON<CR>...
  • Page 15 MAX PRO-SERIES Communication/Configuration Specifications (continued) QUERIES (continued) Query ?LIST_CONFIG<CR> RESPONSES AND WARNING MESSAGES If unsolicited feedback is enabled, the following warning messages will be transmitted under the conditions outlined in their description. Condition Outlet bank or trigger output changes (on/off) state. When either the front panel but- ton or input trigger (on/off) sta- tus changes, a status message is...

  • Page 16: Troubleshooting

    I connected the LED Convenience Lamp and the lamp will not work. What is the problem? Check to see if the MAX 7500-Pro is in an unsafe voltage condition by looking to see if the unsafe voltage indicator is flashing. If the indi- cator is flashing, then wait until voltage is back to normal and the light will turn back on.

  • Page 17: Warranties

    Panamax Panamax Power Conditioner Limited Connected Equipment Protection Warranty It is the policy of Panamax that it will, at its 3. NOTIFICATION: You must notify Panamax election, either replace, pay to replace at fair...
