HOLUX GR-212 GPS Receiver User’s Guide Oct. 01, 2004 HOLUX Technology,.Inc 8F-11, 26, Tai Yuen St., Chu Pei, Hsin Chu, Taiwan Phone: +886-3-5526268 Fax: +886-3-5526108 E-Mail: info@holux.com.tw Web: www.holux.com.tw All Right Reserved... -
Page 2: Table Of Contents
HOLUX TABLE OF CONTENTS 1. Introduction ……………………………………………………………………………………….. 1.1 Overview …………………………………………………………………………………….. 1.2 Features …………………………………………………………………………………….. 1.3 Technical Specifications ……………………………………………………………….. 2. Operational Characteristics ……………………………………………………………….… 2.1 Initialization …………………………………………………………………………………. 2.2 Navigation …………………………………………………………………………………. 3. Hardware Interface ………………………………………………………………………….…… 3.1 Dimension ………………………………………………………………………………….… 3.2 Interface ………………………………………………………………………………….…… 3.3 Connector ………………………………………………………………………………….…... -
Page 3: Introduction

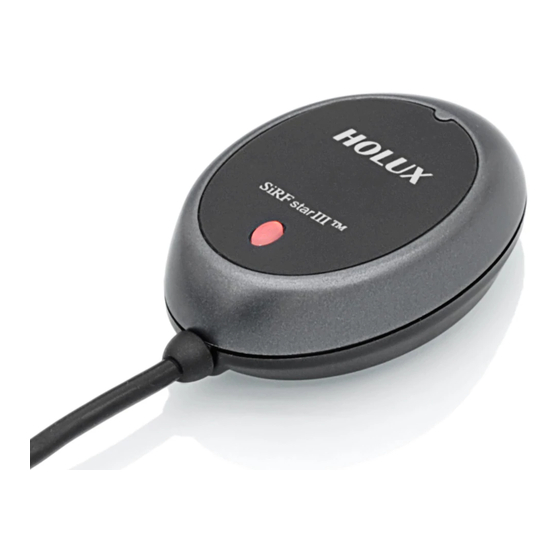

1. Introduction 1.1 Overview The HOLUX GR-212 Smart GPS Receiver is a total solution GPS receiver, designed based on SiRF Star II Architecture. This positioning application meets strict needs such as car navigation, mapping, surveying, security, agriculture and so on. Only clear view of sky and certain power supply are necessary to the unit. It communicates with other electronic utilities via compatible dual-channel through RS-232 or TTL and saves critical satellite data by built–in backup memory. -
Page 4: Operational Characteristics
The GR-212 utilizes initial data, such as last stored position, date, time and satellite orbital data, to achieve maximum acquisition performance. If significant inaccuracy exists in the initial data, or the orbital data is obsolete, it may take more time to achieve a navigation solution. -
Page 5: Hardware Interface
The GR-212 includes an antenna in a unique style waterproof gadget. Simply connect PS-2 female connector to one of the accessories linking to your notebook PC, PDA or other devices. The one-piece cigarette adapter allows you to connect GR-212 to your PDAs. Optional color, input voltage and output connector are listed and described below:... -
Page 6: Accessories
HOLUX 3.3 Connector The GR-212 is equipped with optional connectors. Cable Length: 2 meter 3.3.1 Function definition of PS-2 female composite connectors Signal RS-232 RS232+TTL TX(RS232) +5VDC +5VDC Tx(TTL) Ground Ground DGPS IN Rx(TTL) RX(RS232) N. C. = No Connection 3.4 Accessories... -
Page 7: Optional Cigarette Adapter
HOLUX 3.4.2 Cigarette adapter and PDA connector: reference section 7.2 3.4.3 CA-USB: USB connector The USB A Type is equipped with GR-212. The function definition is as follows: Signal Name Ground 3.4.4 CA-6V30V: High power connector Color Signal Black Ground... -
Page 8: Important
Special Committee No.104, Type 1,2,9) or WAAS (in USA area) or EGNOS (in European area) 5.1 NMEA Transmitted Messages The GR-212 supported by SiRF Technology Inc. also outputs data in NMEA-0183 format as defined by the National Marine Electronics Association (NMEA), Standard. - Page 9 HOLUX HDOP Horizontal Dilution of Precision MSL Altitude Meters Units Meters Geoid Separation Meters Units Meters Age of Diff. Corr. second Null fields when DGPS is not used Diff. Ref. Station ID 0000 Checksum <CR> <LF> End of message termination...
- Page 10 HOLUX Table 5-6 Mode 1 Value Description Manual—forced to operate in 2D or 3D mode 2DAutomatic—allowed to automatically switch 2D/3D Table 5-7 Mode 2 Value Description Fix Not Available 5.1.4 GNSS Satellites in View (GSV) Table 5-8 contains the values for the following example:...
-
Page 11: Rtcm Received Data
The default communication parameters for DGPS Input are 9600 baud, 8 data bits, stop bit, and no parity. Position accuracy of less than 5 meters can be achieved with the GR-212 by using Differential GPS (DGPS) real-time pseudo-range correction data in RTCM SC-104 format, with message types 1,2, or 9. As using DGPS receiver with different communication parameters, GR-212 may decode the data correctly to generate accurate messages and save them in battery-back SRAM for later computing. - Page 12 HOLUX Bahrain – Ain el ABD 1970 International Data5.dat Bangladesh Everest 1830 Data6.dat Bolivia South American 1969 Data8.dat Botswana – ARC 1950 Clarke 1880 Data7.dat Brazil South American 1969 Data9.dat Brunel, East Malaysia Everest (Sabah & Sarawak) Data37.dat Canada – North American 1983 GRS 1980 Data10.dat...
