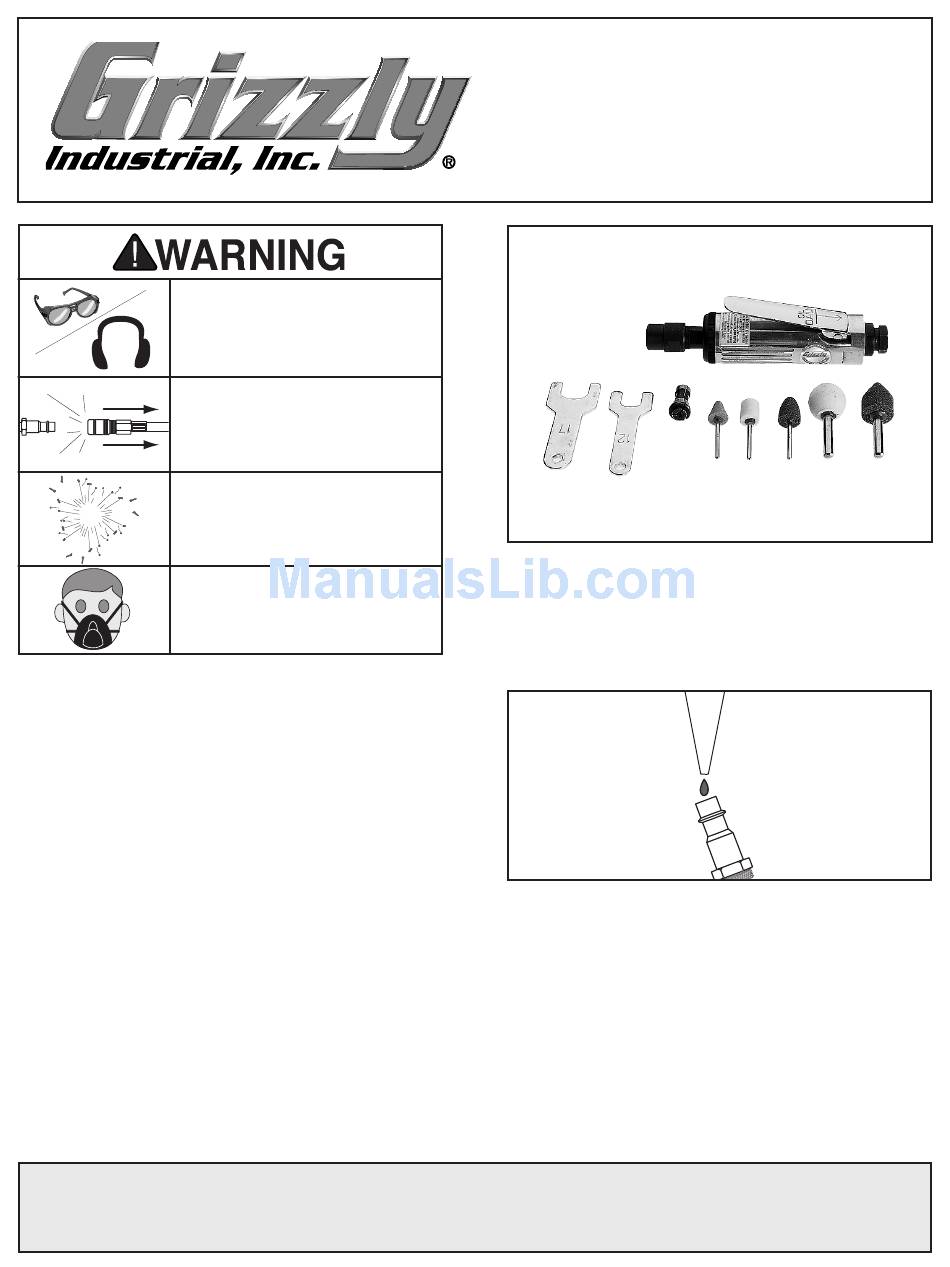

Grizzly H3172 Instruction Sheet

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
Only use stones rated for
RESPIRATORY HAZARD!
Grinding
dust. Wear the appropriate
protection during use!
Introduction
This mini air die grinder kit with
includes ⁄ " and ⁄ " collets, collet wrenches and
1 1
8 4
five grinding stones. Grinding stones include ball,
cylindrical and tapered shapes. It has a no load
speed of 21,000 RPM.
Inventory
A. Die Grinder ................................................. 1
B. Wrenches ................................................... 2
C. Collet .......................................................... 1
D. Stones ........................................................ 5
Operation
Insert your ⁄ " shank into the collet. Using the two
1
4
wrenches, secure tool by tightening the collet nut
against the rotor shaft. To change collets, remove
the collet nut, replace collet and tighten collet
nut.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
EXPLOSION HAZARD!
Never exceed 90 PSI!
21,000 RPM or less!
produces
⁄ " NPT inlet
1
4
COPYRIGHT © MARCH, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8029 PRINTED IN CHINA
MINI DIE GRINDER KIT
INSTRUCTION SHEET
fine
Die Grinder MUST have 3-4 drops of oil directly
dropped into the air fitting before each use as
shown in Figure 2.
Figure 2. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
MODEL H3172
Figure 1. Model H3172.
