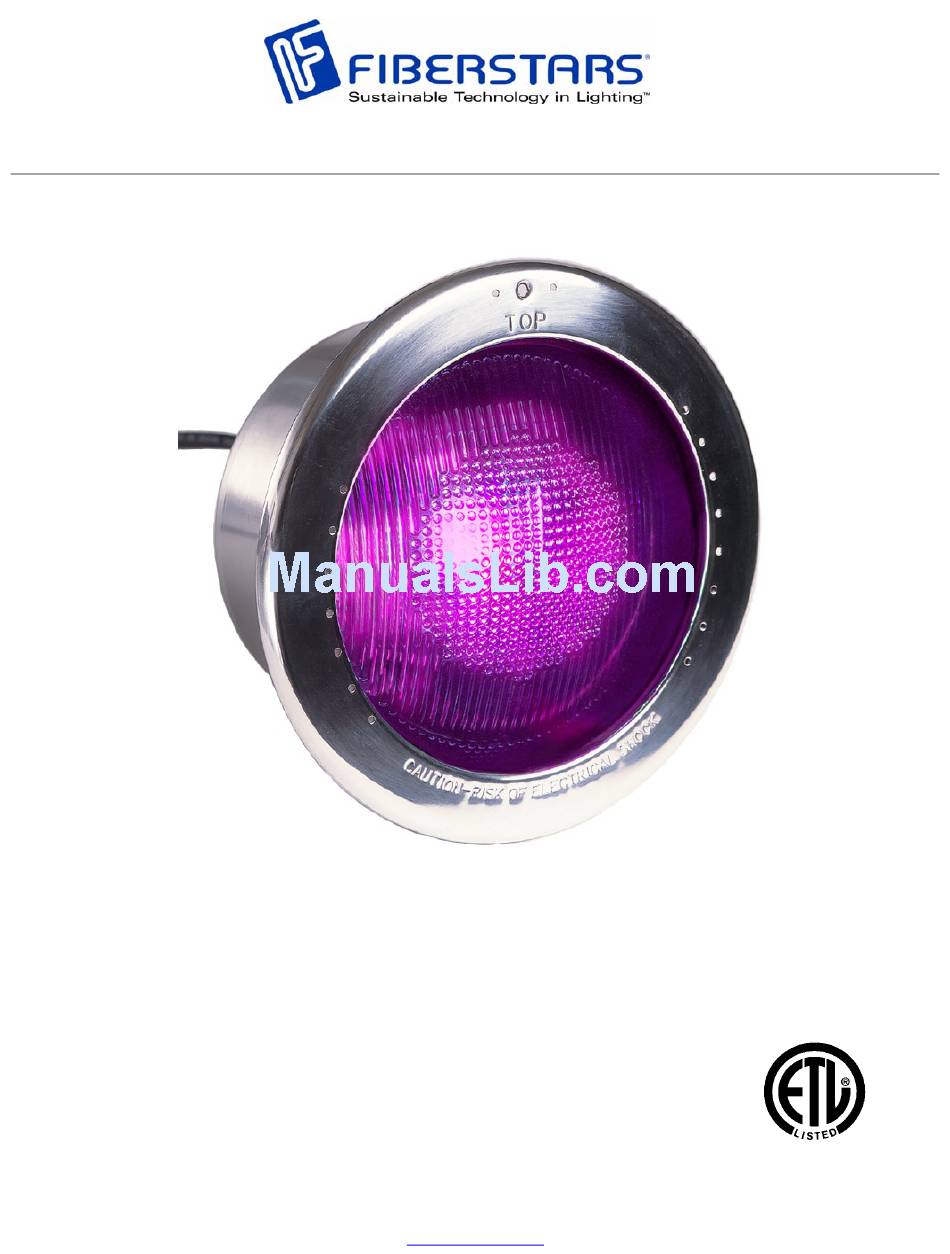

- Page 1 ™ Fiberstars JAZZ J400AS (AUTO SYNC) Owners Manual 75-15046-PM rev. H www.fiberstars.com Page 1 of 8...
- Page 2 Allow the light to cool down before installing underwater. ATTENTION Fiberstars JAZZ and FX Series Wet-Niche Lighting Fixtures for Swimming pools are now ETL Classified for use with the following manufactures Wet-Niches for use in new Pool construction. PENTAIR, (American) model no. 79206700 (ABS), model no.
- Page 3 2. Feed cord through niche and conduit, while light fixture is on deck area right above the niche. Feed cord to junction box leaving enough cord, about 3’ to allow fixture to be placed on deck to allow relamping. 3. Make connections in the junction box (see Figure 2). 75-15046-PM rev. H www.fiberstars.com Page 3 of 8...
- Page 4 7. Fasten the lamp housing into the niche using the captive leader screw at the top of the trim ring. Risk of Electrical Shock or Electrocution. This fixture must be properly installed in accordance with the National Electrical Code and all applicable local 75-15046-PM rev. H www.fiberstars.com Page 4 of 8...
- Page 5 Red Wires (Colorwheel) must be run to a common switch. For operation instructions, see below. Fiberstars RM-400 Remote (Maximum 2 units per RM-400) – See RM400 Instruction Sheet for installations directions. SPECIAL NOTE FOR X-10 CONTROL The lowest possible signal that can make a module respond properly is 150mV.
- Page 6 Figure 3. c. Disconnect lamp at plug, see Figure 3. For the J400AS, place the bracket outside the can using care not to damage the color wheel wires or the color wheel. 75-15046-PM rev. H www.fiberstars.com Page 6 of 8...
- Page 7 Reassemble lamp assembly by following steps 1 thru 5 in reverse order. Remove old gasket from lens and discard it. Install new gasket during reassembly of light, Fiberstars part number J30-7000. NOTE: DO NOT USE ANY LUBRICANTS WHEN INSTALLING THE LENS GASKET! To prevent the risk of damage or injury do not operate fixture on the deck of Pool or Spa for more than 15 minutes.
- Page 8 (Includes replacement gasket #7) J30-3000 Pilot Screw, with captive neoprene washer J30-4000 Face ring, Stainless Steel J30-5000 Compression Clamp J30-6000 Lens, Fiberstars, 8-3/8 in. dia., tempered J30-7000 Gasket, Lens FX-8000 Non-Sync Color Wheel Motor Assembly SAVE THESE INSTRUCTIONS. 75-15046-PM rev. H www.fiberstars.com...
