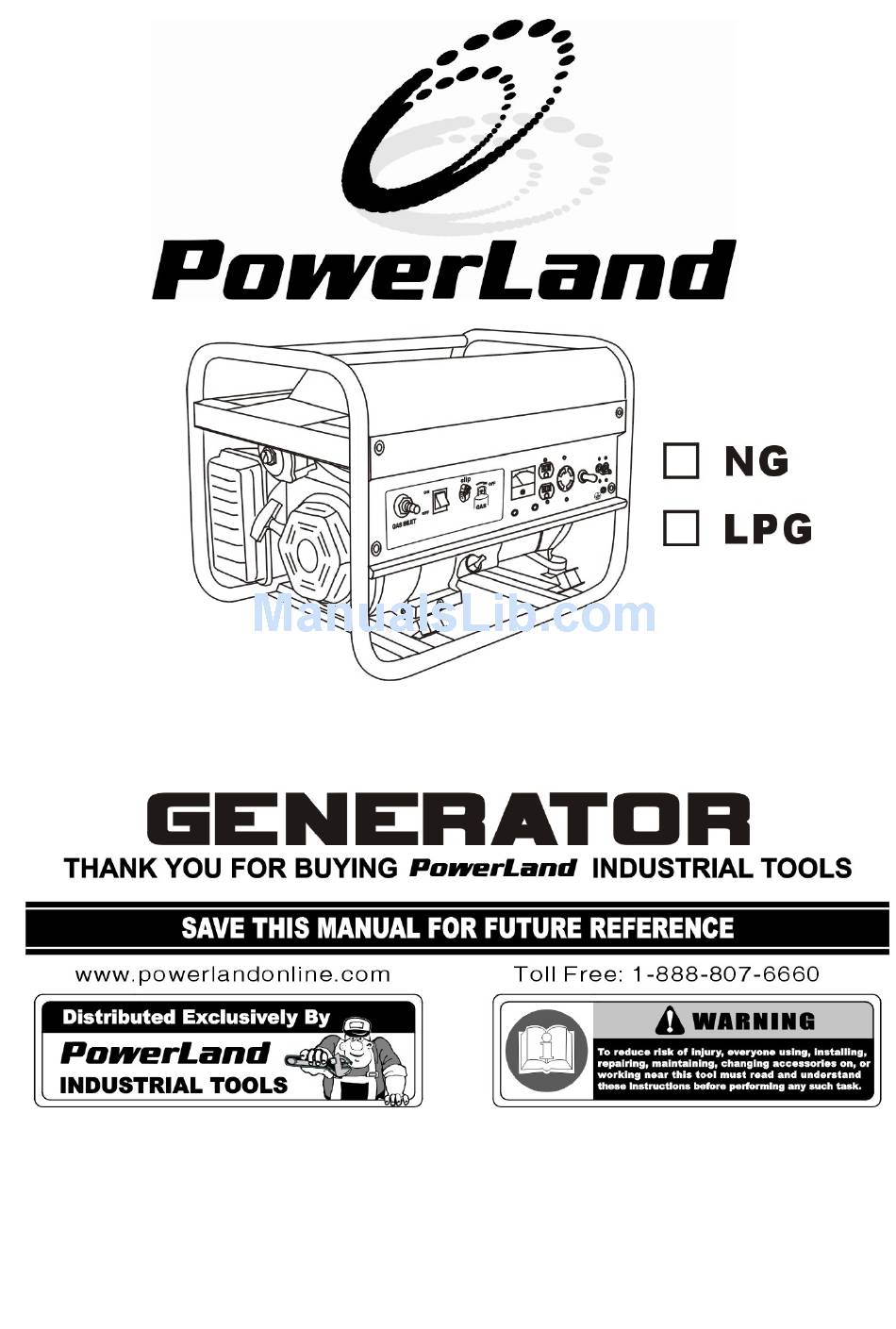

Owner's Manual
Full Power Output Panel
SERIES GAS POWER
This manual provides information regarding the oper ation and maintenance of these
products. W e have made every ef fort to ensure the accuracy of the information in this
manual. We reserve the right to change this product at any time without prior notice.
Please keep this manual available to all
users during the entire life of the LPG/NG
generator.
Advertisement
Table of Contents
Related Manuals for PowerLand PDL4000
Summary of Contents for PowerLand PDL4000
- Page 1 Owner’s Manual Full Power Output Panel SERIES GAS POWER This manual provides information regarding the oper ation and maintenance of these products. W e have made every ef fort to ensure the accuracy of the information in this manual. We reserve the right to change this product at any time without prior notice. Please keep this manual available to all users during the entire life of the LPG/NG generator.
-
Page 2: Specifications
SPECIFICATIONS Item PDL4000 PDL6500E Rated Wattage 3200W 5500W Surge Wattage 4000W 6500W Rated Voltage 120/240V Rated Frequency 60Hz Phase Single DC Output DC 12V/8.3 A Engine type 4-stroke OHV single cylinder with forced air cooling system Ignition system Non-contact transistor... - Page 3 PREFACE Thank you for purchasing products from our company. We appreciate your business. The following manual is only a guide to assist you and is not a complete or comprehensive manual of all aspects of maintaining and repairing your generator. The equipment you have purchased is a complex piece of machinery.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................... 1 Portable Power Generator.....................1 Accessories........................1 This Booklet........................1 Manual Conventions ....................1 SAFETY RULES ........................2 CONTROLS AND FEATURES....................5 Instruction gas denser device ………….................6 Add Engine Oil ...... -
Page 5: Introduction
INTRODUCTION Congratulations on your purchase of generator. Designs and builds generators to strict Specifications. With proper use and Maintenance, this generator will bring years of satisfying service. Portable Power Generator This unit is a LPG(liquefied petroleum gas) or NG(natural gas) engine driven, alternating current (AC) generator. -
Page 6: Safety Rules
SAFETY RULES WARNING: Read this manual thoroughly before operating your generator. Failure to follow instructions could result in serious injury or death. WARNING: The engine exhaust from this product contains chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. DANGER: Generator exhaust contains carbon monoxide, a odorless, odorless, poison gas. - Page 7 ● DO NOT check for spark with the plug removed. ● Use only approved spark plug testers. WARNING: Running engines produce heat. Severe burns can occur on contact. Combustible material can catch fire on contact. ● DO NOT touch hot surfaces. ●...
- Page 8 ● Disconnect the spark plug wire. When storing the generator: ● Store away from sparks, open flames, pilot lights, heat and other sources of ignition. WARNING: When use the LPG/NG generator, if find any abnormality (LPG/NG leakage or strange smells), please turn off the gas source immediately and then check the connection tube to insure the safely.
-
Page 9: Controls And Features
CONTROLS AND FEATURES Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Air cleaner- a removable, cleanable, sponge-like el ement that limit s the amount of dirt pulled into the engine. -
Page 10: Instruction Gas Denser Device
WARNING: DO NOT exceed the generator’s wattage/amperage capacity. Our products are continuously being changed and improved. Every effort has been made to ensure that information in the manual is accurate and up to date. However, we reserve the right to change, alter or otherwise improve the product and this manual at any time without prior notice. - Page 11 CAUTION: Engine oil is key factor in deciding the engine’s performance. Do not apply engine oil with additives or 2-stroke gasoline oil, as they haven’t enough lubric ation, whic h may shorten the en-gene’s service life. ● Check the engine with it stopped on a level ground.
-
Page 12: Add Lpg Fuel
Add LPG Fuel 1. Connect LPG tube on LPG tank and fasten it with using clip. 2. Turn the LGP tank valve to "ON” position - full open. 3. Check the LPG to see if it is leaking and then guarantee it. CAUTION: Use clean, fresh, regular LPG with LPG gas pressure area as we required ●... -
Page 13: Add Ng Fuel
Add NG Fuel 1. Connect NG tube on NG connecting tube and fasten it with using clip. 2. Turn the NG connecting tube valve to "ON” position - full open. . Check the NG to see if it is leaking and then guarantee it. CAUTION: Use clean, fresh, regular NG with NG gas pressure area as we required ●... -
Page 14: Grounding
Grounding Your generator must be properly connected to an appropriate ground to help prevent electric shock. The generator system ground connects the frame to the ground terminals on the power panel. The system ground is connected to the AC neutral wire. WARNING: Failure to properly ground the generator can result in electric shock. -
Page 15: Surge Protection
Surge Protection CAUTION: Voltage fluctuation may impair the proper functioning of sensitive electronic equipment. Electronic devices, including computers and many programmable appliances use components that are designed to operate within a narrow voltage range and may be affected by momentary voltage fluctuations. While there is no way to prevent voltage fluctuations, you can take steps to protect sensitive electronic equipment. -
Page 16: Connecting Electrical Loads
Note: If the engine starts but does not run, make certain that the generator is on a flat, level surface. The engine is equipped with a low oil sensor that will prevent the engine from running when the oil level falls below a critical threshold. Note: If more times start fail, and use reinforce handle also fail, the chief reason is that excessive gas go into cylinder. -
Page 17: Do Not Overload Generator Capacity
Do Not Overload Generator Capacity Follow these simple steps to calculate the running and starting watts necessary for your purposes. 1. Select the electrical devices you plan on running at the same time. 2. Total the running watts of these items. This is the amount of power you need to keep your items running. - Page 18 Well Pump 1 HP 2000 4000 Water Heater 4000 Security System AM/FM Radio Garage Door Opener 1/2 HP Battery Charger 12V DC Heating/Cooling Air Conditioner 12000 BTU 1700 2500 Fan 300 Furnace Fan 1/3 HP 1200 2000 Home Appliances Microwave 1000W 1000 Electric Range - One Element 1500...
-
Page 19: Voltage Selector Switch
Voltage selector switch The voltage selector switches the main power carrying windings of the generator to produce "120V ONLY" or "120/240V". If a 240V appliance is connected to the 4-prong receptacle, the switch must be in the "120/240V" position. If only a 120V appliance is being connected to any of the 120V 3-prong receptacles, select the "120V ONLY"... -
Page 20: Maintenance
15 1800 3600 20 2400 4800 25 3000 6000 30 3600 7200 40 4800 9600 *NR= not recommended MAINTENANCE The owner/operator is responsible for all periodic maintenance. WARNING: Never operate a damaged or defective generator. WARNING: Tampering with the factory set governor will void your warranty. WARNING: Improper maintenance will void your warranty. -
Page 21: Spark Plugs
Spark Plugs 1. Remove the spark plug cable from the spark plug. 2.Use the spark plug tool that shipped with your generator to remove the plug. 3. Inspect the electrode on the plug. It must be clean and not worn to produce the spark required for ignition. -
Page 22: Spark Arrester (If Installed)
Squeeze thoroughly dry in a clean cloth. 4. Saturate in clean engine oil. 5. Squeeze in a clean, absorbent cloth to remove all excess oil. 6. Place the filter in the assembly. 7. Reattach the air filter cover and snap in place. Spark Arrester (if installed) 1. -
Page 23: Maintenance Schedule
When the engine starting, if at the unload, the rotation speed is instability, that indicates the ratio between air and fuel (mixture ratio) is wrong, please loosen fixed nut on lid of the reducer assy. like this can adjust gas-pressure adjusting screw. Clockwise adjusting can increase the gas pressure, contrarily is reduce pressure. -
Page 24: Generator Maintenance
Every 8 hours or daily Check oil level Clean around air intake and muffler First 5 Hours Change oil First 10 hours Check/Adjust Valve Clearance * Every 50 hours or every season Clean air filter Change oil if operating under heavy load or in hot environments Every 100 hours or every season Change oil Clean/Adjust spark plug... -
Page 25: Storage
STORAGE The generator should be started at least once every 14 days and allowed to run for at least 20 minutes. For longer term storage, please follow these guidelines. Engine Storage 1. Allow the engine to cool completely before storage. 2. - Page 26 CHANGE THE AVR...
-
Page 27: Troubleshooting
TROUBLESHOOTING Problem Cause Solution No gas Add gas Faulty spark plug Replace spark plug Generator will not start Unit loaded during st art Remove load from unit Fill crankcase to the proper level Low oil level Place generator on a flat, level surface Generator will not start;... -
Page 28: Wiring Diagram
WIRING DIAGRAM...
