Genelec 1032A Operating Manual page 3

adjustment by setting all switches to
'OFF' position. Then set only one switch
to ON position to select response curve
needed. If more than one switch is set to
'ON' (within one switch group) the
attenuation value is not accurate.
Vertical / horizontal mounting Vertical / horizontal mounting Vertical / horizontal mounting
Vertical / horizontal mounting Vertical / horizontal mounting
The speakers are delivered normally for
vertical mounting. If horizontal mounting
is needed the DCW plate can be rotated
so that the GENELEC logo is located at
the bottom left corner of the DCW.
Remove the four corner screws of the
DCW (use a Torx 20 screw driver) and
pull the plate carefully out without
stressing the wires and the gasket. Rotate
the plate 90 degrees to the appropriate
direction and remount the screws. Note
that to get mirror image pair the DCW
must be rotated to different direction in
left and right speaker. In horizontal
mounting position the bass drivers should
point inwards to get better low frequency
summing.
Console top mounting Console top mounting Console top mounting Console top mounting Console top mounting
If the 1032A's are used for console top
monitoring it is recommended not to
mount the speakers directly on the
console. Instead position the speakers
slightly behind the console by using
floor stand or wall mount at the console
back side. This prevents the reflection
from the console surface from coloring
the sound.
Overload indicators Overload indicators Overload indicators Overload indicators Overload indicators
The speaker is provided with two warning
LED's marked 'OVL' and 'ON'. The green
ON-LED when lit indicates that
speaker is ready for use. The red OVL-
LED indicates that the amplifier is
overloaded or the driver protection circuit
is activated. In both cases reduce the
signal level so that the LED stops blinking.
If the OVL-LED stays on constantly it
indicates that the amplifier thermal
protection is activated. Let the amplifier
cool down and check that the ventilation
at the rear side of the speaker is not
blocked. There should be a clearance of
more than 4" (10cm) between speaker
rear and any solid surface at the back.
3. Maintenance 3. Maintenance
3. Maintenance 3. Maintenance 3. Maintenance
No user serviceable parts are to be found
within the amplifier unit. Any maintenance
or repair of the 1032A unit should only be
undertaken by qualified service
personnel.
4. Safety Considerations 4. Safety Considerations 4. Safety Considerations
4. Safety Considerations 4. Safety Considerations
Although the 1032A has been designed
in accordance with international safety
standards, to ensure safe operation and
to maintain the instrument under safe
operating conditions, the following
warnings and cautions should be
observed.
- Servicing and adjustment should
only be performed by qualified
service personnel.
- Opening the amplifier's rear panel
is strictly prohibited except by
qualified service personnel who
are aware of the hazards involved.
- It is forbidden to use this product
with an unearthed mains cable,
which may lead to personal injury.
WARNING! This equipment is capable WARNING! WARNING!
WARNING! WARNING!
of delivering Sound Pressure Levels in
excess of 90 dB, which may cause
permanent hearing damage.
the

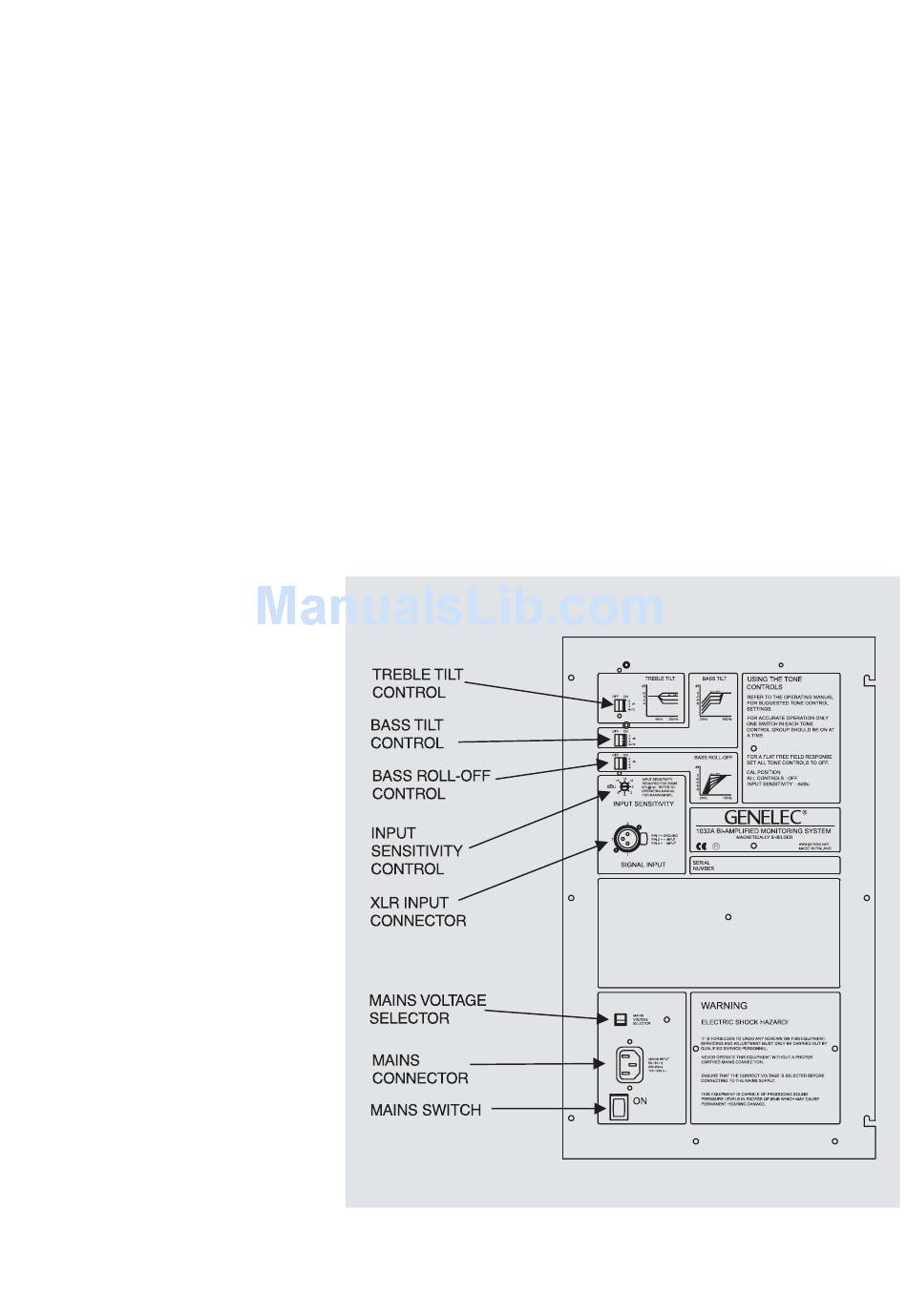

Figure 4. Rear panel layout.
5. Accessories 5. Accessories
5. Accessories 5. Accessories 5. Accessories
Several additional options are available
for the 1032A:
Flightcase 1032-401
Handles 1032-406
Grille 1032-409
Wall mount 1032-404 V/H*
Floor stand 1032-405 V/H*
*State the desired speaker orientation
V=vertical or H=horizontal when ordering
these accessories
6. Guarantee 6. Guarantee 6. Guarantee 6. Guarantee 6. Guarantee
This product is supplied with a ONE
YEAR guarantee against manufacturing
faults or defects that might alter the
performance of the 1032A unit. Refer to
supplier for full sales and guarantee
terms.
