GE Motion Sensor User Manual page 8

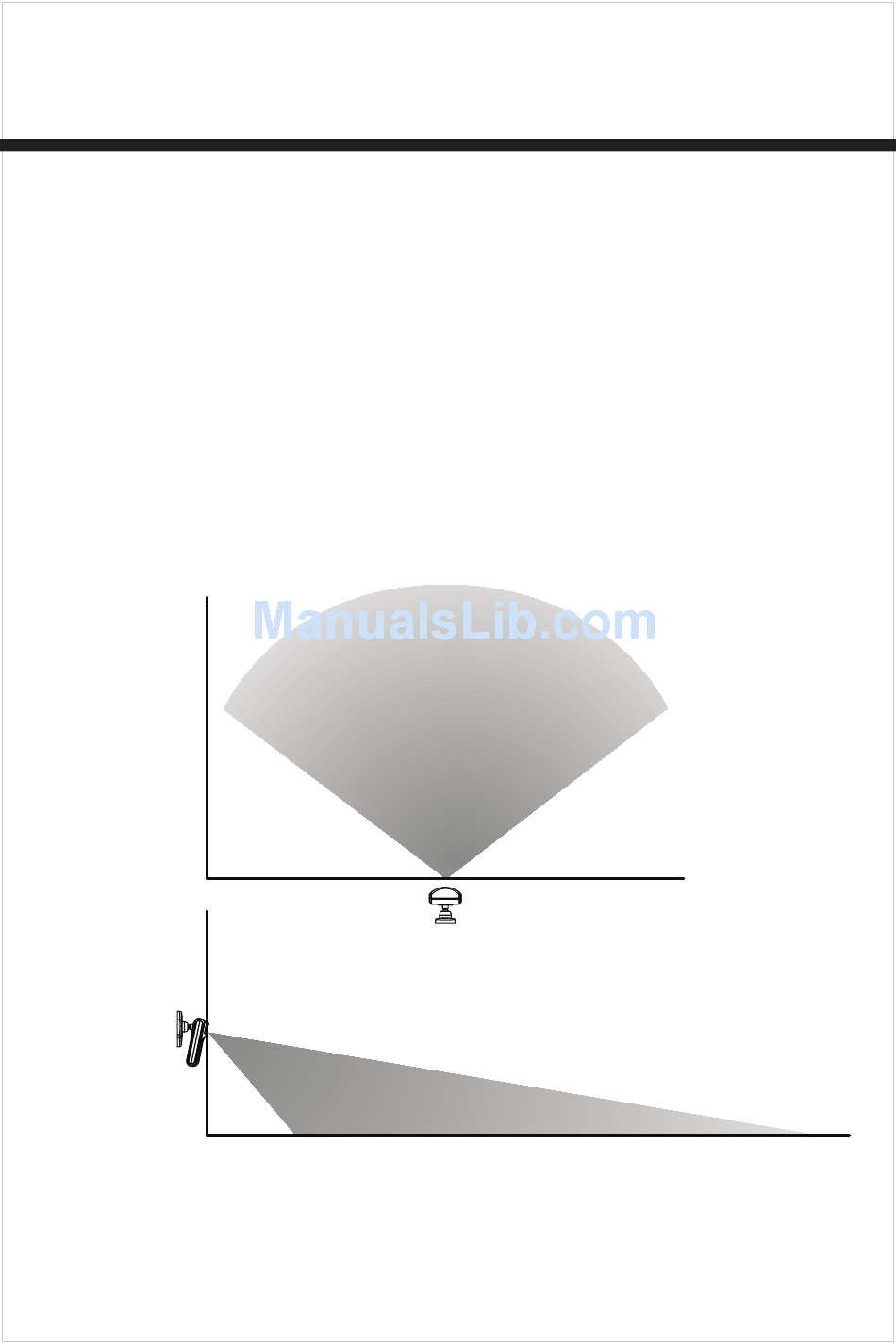

1. Choose your desired location, such
as the corner of the room. This will
provide maximum coverage. NOTE:
The sensor has a 15-20 ft. detection
zone, with approximate angles
of 110˚ horizontal x 70˚ vertical.
Recommended installation height is 6
to 8 feet.
20'
15'
10'
5'
Feet
6'-8'
Feet
2. Secure ball and socket mount to the
110˚
5' 10'
70˚
15'
8
20'
