Summary of Contents for Pride Mobility Legend Classic 3-Wheel

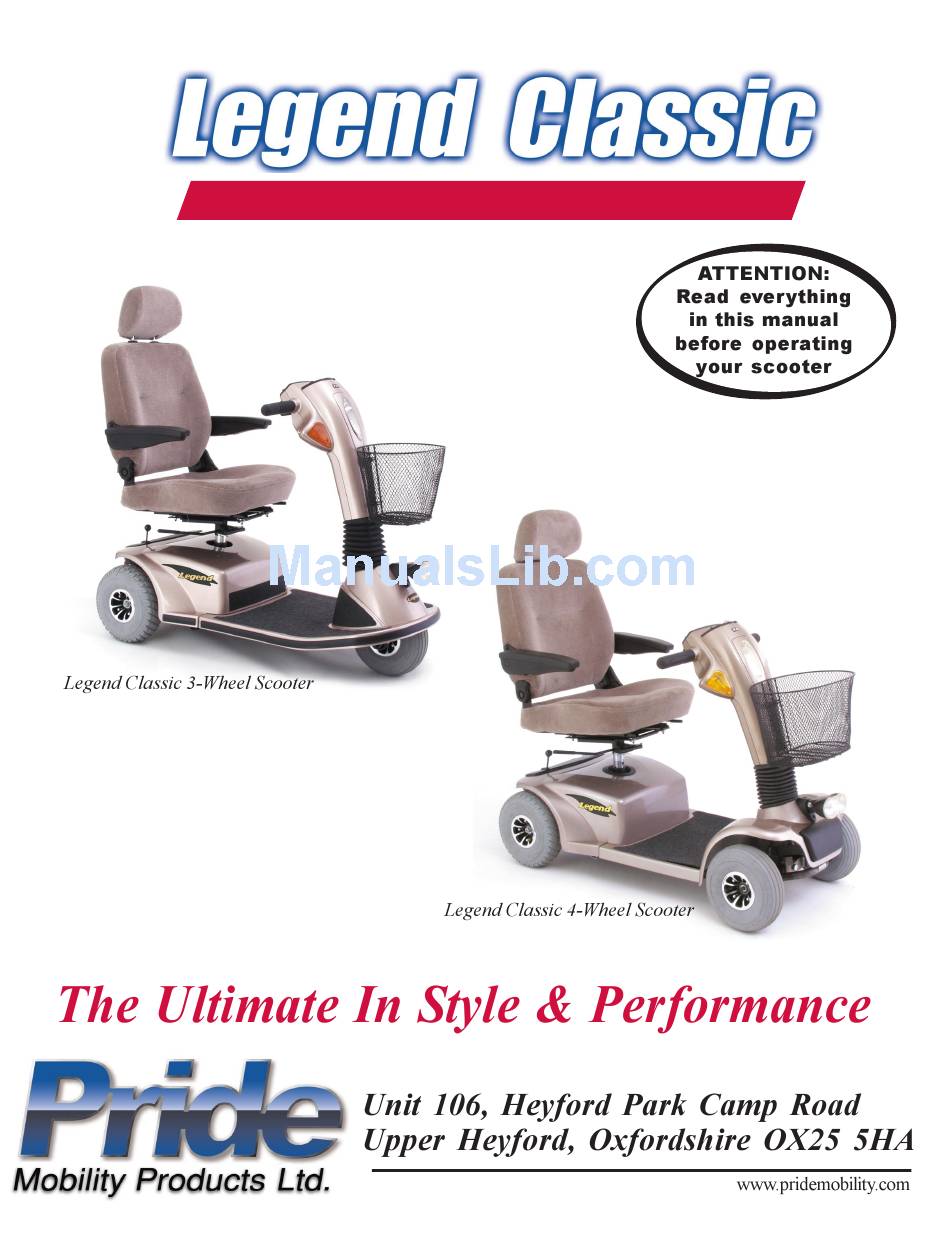

- Page 1 Owner’s Manual ®...
- Page 3 LEGEND CLASSIC 3-WHEEL LEGEND CLASSIC 4-WHEEL...
- Page 8 68 kg 90 kg 113 kg 136-159 kg 68 kg 90 kg 113 kg 136-159 kg 11 stone 14 stone 18 stone 21-25 stone 11 stone 18 stone 14 stone 21-25 stone (150 lbs.) (200 lbs.) (300-350 lbs.) (150 lbs.) (200 lbs.) (250 lbs.) (250 lbs.)
- Page 9 FIGURE 2. NORMAL DRIVING POSITION FIGURE 2A. INCREASED STABILITY DRIVING POSITION...
- Page 10 KERB KERB FIGURE 3. CORRECT KERB APPROACH FIGURE 3A. INCORRECT KERB APPROACH...
- Page 15 50 cm (20") 23 cm (9") 43 - 53 cm (17" - 21") 9 cm (3.5") 18" 3-wheel 115.5 cm (45.5") 46 cm (18") 4-wheel 119 cm (47") 16" 50 cm (20") 61 cm (24") 3-wheel 104 cm (41") 4-wheel 147 cm (58") Turning Radius 61 cm (24")
- Page 16 Class of Use Model Numbers 3-wheel: SCUK3000, 4-wheel: SCUK3400 Painted: Red, Blue, Available Colours 3-wheel: 115.5 cm (45.5 in.), 4-wheel: 119 cm (47 in.) Overall Length Overall Width 61 cm (24 in.) Total Weight Without Batteries 3-wheel: 72 kg (159 lbs.), 4-wheel: 73 kg (162 lbs.) Heaviest Piece When Disassembled Rear frame: 27 kg (59 lbs.) 3-wheel: 104 cm (41 in.), 4-wheel: 147 cm (58 in.)
- Page 17 BATTERY CONDITION METER SPEED ADJUSTMENT DIAL ON/OFF INDICATOR LED HAZARD LIGHT SWITCH KEY SWITCH HORN BUTTON RUNNING LIGHTS SWITCH HORN BUTTON TURN INDICATOR BUTTON (RIGHT) TURN INDICATOR BUTTON (LEFT) THROTTLE CONTROL LEVER HEADLIGHT SWITCH (FORWARD) THROTTLE CONTROL LEVER (REVERSE) FIGURE 5. TILLER CONSOLE...
- Page 18 3-AMP KEY SWITCH FUSE 3-AMP LOWER LIGHT FUSE 3-AMP RIGHT TURN INDICATOR FUSE 3-AMP LEFT TURN INDICATOR FUSE SPARE FIGURE 5A. TILLER CONSOLE FUSES...
- Page 19 7.5-AMP CHARGER FUSE 5-AMP SPARE FUSE 3-AMP REAR LIGHTS FUSE 3-AMP REAR TURN INDICATORS FUSE MANUAL FREEWHEEL LEVER AMMETER MAIN CIRCUIT BREAKER (RESET BUTTON) MOTOR/TRANSAXLE ASSEMBLY ANTI-TIP WHEEL ANTI-TIP WHEEL FIGURE 6. REAR SECTION...
- Page 20 UP FIRMLY DOWN FIRMLY...
- Page 21 FIGURE 7. BATTERY CONDITION METER FIGURE 8. AMMETER INDICATES BATTERY IS FULLY CHARGED THE OFF-BOARD CHARGER PLUGS INTO THIS PORT FIGURE 9. OFF-BOARD CHARGER PORT...
- Page 26 TILLER ADJUSTMENT LEVER SEAT ROTATION ADJUSTMENT FIGURE 9A. TILLER ADJUSTMENT FRONT-TO-BACK SEAT ADJUSTMENT SEAT LOCK LEVER SEAT SLIDING LEVER Figure 10. Seat Adjustments...
-
Page 27: Seat Height Adjustment
ADJUSTMENT DIAL FIGURE 10A. SEATBACK ADJUSTMENT LEVER FIGURE 10B. ARMREST ANGLE ADJUSTMENT SEAT HEIGHT ADJUSTMENT UPPER SEAT SEAT HEIGHT POST ADJUSTMENT BOLT—NUT LOCATING HOLES SEAT HEIGHT ADJUSTMENT BOLT SEAT POST BOLT—NUT SEAT POST BOLT LOWER SEAT POST Figure 11. Seat Height Adjustment... - Page 29 FRONT SECTION REAR SHROUD SEAT BATTERIES REAR SECTION BASKET FIGURE 12. THE LEGEND CLASSIC DISASSEMBLED PULL SHROUD AWAY FROM FRAME HERE BEFORE LIFTING SHROUD UP FIGURE 13. REMOVING THE SEAT FIGURE 14. REMOVING THE REAR SHROUD...
- Page 30 FIGURE 15. BATTERY HARNESSES FIGURE 16. FRONT-TO-REAR HARNESS Toggle Latch Release TOGGLE LATCH TOGGLE TOGGLE BUCKLE LATCH LATCH RELEASE BUTTON FIGURE 18. TOGGLE LATCH (UNLATCHED) FIGURE 17. TOGGLE LATCH (LATCHED) Frame Separation FIGURE 19. FRAME POSITIONING FIGURE 20. SEPARATING THE FRAME SECTIONS...
- Page 31 FIGURE 21. FRAME SECTIONS FRONT-TO-REAR HARNESS CABLE FIGURE 22. FRAME LOCKUP...
- Page 32 •SINGLE CANE/CRUTCH HOLDER • DOUBLE CANE/CRUTCH HOLDER • WALKER HOLDER • FOREARM CRUTCH HOLDER • CUP HOLDER • OXYGEN TANK HOLDER • REAR BASKET • DOUBLE CRUTCH HOLDER • SAFETY FLAG • QUAD CANE HOLDER A DUST COVER IS ALSO AVAILABLE BUT NOT SHOWN...
- Page 35 FIGURE 23. WORKING FUSE FIGURE 23A. BLOWN FUSE (REPLACE)
