Smart Start AS-2471TW-FM User Manual

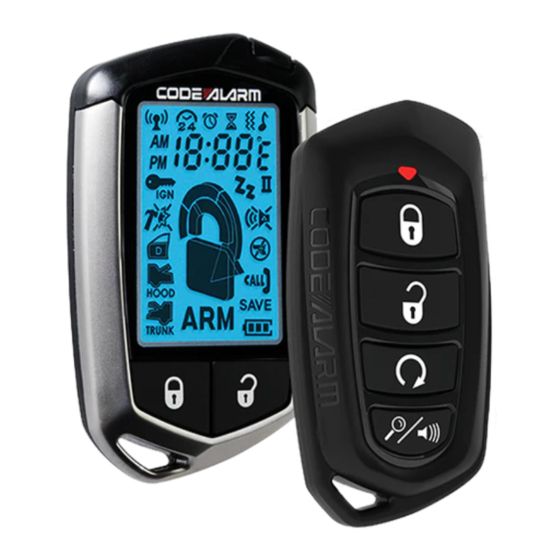

Two-way 6-button lcd automatic/manual transmission remote starter
Hide thumbs
Table of Contents

Advertisement

Quick Links

T W O - W A Y
6 - B U T T O N
A U T O M A T I C / M A N U A L
R E M O T E
S T A R T E R
AS-2471TW-FM
/AS-2472TWU
A note concerning the battery inside the transmitter:
Depending on your usage of the transmitter, the battery can last anywhere between 3 to 6 months. When the
battery is low, the transmitter will produce two beeps in a repetitive cycle. At that point you should replace
your battery with a new one. That is why we recommend that you keep a spare battery somewhere handy
such as the glove compartment.
INDUSTRY CANADA USER NOTICE:
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (EIRP) is not more than that required for successful
communication.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate the
equipment
Doc#: 110805
Rev: 1.5
L C D
T R A N S M I S S I O N
User Guide
It is the responsibility of the vehicle operator to ensure their vehicle is parked
in a safe and responsible manner.
1. a) Manual transmission: When leaving the vehicle, it is the user's responsibility
to ensure that the gearshift lever is in the NEUTRAL position and the parking
brake is engaged in order to avoid accidents upon remote starting.
b) Automatic transmission: When leaving the vehicle, it is the user's
responsibility to ensure that the gearshift lever is in "Park" in order to avoid
accidents upon remote starting.
(Note: Make sure that the automatic vehicle cannot start in "Drive".)
2. It is the user's responsibility to ensure that the remote starter is disabled or put
into valet mode before servicing.
Designed & engineered in Canada
© 2011
WARNING
- 2W-FM-LCD-A/M-HD -
- FcN -
Canada

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-2471TW-FM and is the answer not in the manual?

Questions and answers

Related Manuals for Smart Start AS-2471TW-FM

Summary of Contents for Smart Start AS-2471TW-FM

  • Page 1 A U T O M A T I C / M A N U A L T R A N S M I S S I O N R E M O T E S T A R T E R AS-2471TW-FM /AS-2472TWU User Guide WARNING It is the responsibility of the vehicle operator to ensure their vehicle is parked in a safe and responsible manner.

  • Page 2: Table Of Contents

    Table of Contents  Government regulations ........................3   Introduction with SmartStart™ ..................... 3   Vehicle Presets ..........................4   Heater ............................4   Windshield Wipers, Radio & Headlights ..................4   Using the Transmitter ........................4   LCD Transmitter basic confirmations .................... 5  ...

  • Page 3: Government Regulations

    Government regulations  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Vehicle Presets

    Vehicle Presets  Heater  When leaving the vehicle it is recommended to preset the accessory controls in preparation for the next remote start. Settings for the blower motor (fan), front and rear, should not be left on HIGH. It is recommended to leave the settings on LOW or MEDIUM instead. Windshield Wipers, Radio & Headlights ...

  • Page 5: Lcd Transmitter Basic Confirmations

    The functions of the 1-way transmitter are as follows (optional): LOCK: Locks the doors and arms the STARTER KILL (if installed). UNLOCK: Unlocks the doors and disarms the STARTER KILL (if installed). Activates the AUX 1 output if Priority Door Access is configured.

  • Page 6: Backlight

    Backlight  Three different ways to use the backlight: • Turning the backlight on for 3 seconds, press the for at least 1 second and release. • If the button is pressed and held for more than 5 seconds the backlight will stay ON as long as the button is held.
  • Page 7 Remote’s advanced functions and MENU Display Description Parking meter countdown This version of the countdown feature is particularly useful for keeping track of parking meter time: the user may quickly set up the countdown using the Parking Menu. The transmitter will beep once, 5min before the Parking countdown reaches 0 and beeps 6 times once the countdown expires.
  • Page 8 Within 3 seconds, press The LCD will display “Security” to confirm locking of the keypad. Press for about 1sec, to unlock the transmitter’s keypad. • Backlight color The backlight can be set to 8 different colors. COLOR Through Advanced Options, first press to select MENU, then: Choose COLOR and press Choose the desired color by pressing...

  • Page 9: Remote-Starting Your Vehicle

    Button Function: The order of LEVELS and MENU can be re-arranged using the Button Function Menu. Details on (page-18). F Button Function FBPRO FBPRO Function Button Programming Menu (15) 1 2 3 M Level 1, level 2, level 3, MENU 2 3 1 M Level 2, level 3, level 1, MENU Function Button...

  • Page 10: Remote-Starting

    interaction. to unlock the doors and shut down the engine; to shut down the engine without affecting the doors. WARNING: Engine runs until the WARNING: The vehicle is WARNING: Do not leave pre-programmed time not armed or locked down. your keys in the vehicle! expires.

  • Page 11: Remote Starter Features

    Passive mode: To arm the Starter Kill: • Press the button on the transmitter. • Let the Starter Kill arm automatically 1 minute (by default) or 3 minutes (if configured this way) after the ignition is turned OFF or once the last door is closed (if the doors are monitored). The parking lights will flash once.

  • Page 12: Remote Trunk Release

    Remote Trunk Release  If your system was installed with the Remote Trunk Release option, you can open your trunk by pressing the button until the remote displays the text “TRUNK” on the screen. In addition, this will also disarm the OEM-style alarm (if installed). Idle Mode ...

  • Page 13: Valet Modes

    Valet Modes  When the vehicle is in Valet Mode, the remote starter and alarm functionalities are disabled. If the vehicle needs to be serviced, or if you park it indoors, Valet Mode will prevent the engine from being remote-started accidentally. Any of the following features will put the remote car starter into Valet Mode: Ignition Valet: This feature allows you to set Valet Mode using the ignition key.

  • Page 14: Quick Lockout Tm

    Quick Lockout   (Also called Secure Panic.) For fast protection in emergency situations, the system will LOCK all doors when you press the brake pedal while you hear the Horn sounding. (Quick Lockout is only available when Panic mode has been triggered.) Cold Weather Mode ...

  • Page 15: Disable/Enable Led Flashing

    Disable/Enable LED flashing  To disable the LED: Press simultaneously until the remote beeps once, pauses for 2 seconds, then beeps once again. Release the buttons. The parking lights will flash 3 times. To Enable the LED: Press simultaneously until the remote beeps once, pauses for 2 seconds, then beeps once more.

  • Page 16: Engine Run Time

    1. Rapidly press AUX twice. While the remote’s LED is flashing, press to remote start the vehicle. Note: The AUX 2 output can be activated by pressing the button. Engine Run Time  On a gas engine, the Remote Car Starter can be programmed to run the engine for 3, 15, or 25 minutes (15 minutes by default).

  • Page 17: Aux 1

    To take the system out of Home Valet™ mode: • Turn the ignition key to the IGNITION ON (RUN) position. The system will warn you if someone attempts to start your vehicle while it stands in Home Valet™ mode. The parking lights will turn ON then OFF, then flash twice, pause, then flash twice again. AUX 1 ...

  • Page 18: Oem-Style Alarm

    OEM­Style Alarm  The OEM-style alarm (if configured by your installer) monitors the doors, hood and ignition switch of your vehicle. It will sound the horn if a door or the hood is opened, or if the key is turned in the ignition.

  • Page 19: Multi-Level Features

    Multi­Level Features The multi-level features allow you to access different features of your vehicle or of a second car by pressing the button once, twice or three times. For convenience purpose, the order of LEVELS and MENU can be re-arranged through FBPRO setting (page-9) Features: •...

  • Page 20: Troubleshooting Transmitting Range

    Troubleshooting Transmitting Range  Many factors may affect the operating range of the transmitter. Some of these are: • The condition of the battery in the transmitter. • The operating environment (for example: downtown radio-frequency noise, airports, cellular phone towers…) • Metal: any type of metal will affect operating range. This includes the metal in the car. •...
