Lorex VQ2120 Specifications

NIGHT VISION WITH 68 POWER
INFRARED LED LAMP
12V DC POWER SUPPLY
FEATURES
1. Weatherproof housing ideal for indoor or outdoor use.
2. Infra-red LED emitters allows user to 'See in the dark' up to 35 to 40 ft distance
3. Can be used with existing LOREX / SYLVANIA B&W observation system cameras & most B&W specialty cameras
4. Clarity of the picture depends on the resolution of the camera that is used. The Night Vision LEDS cover an angle
of 50° to 60°.
5. 'Y' connector included with Night Vision allows user to use one power supply (700mA) for Camera and Night Vision

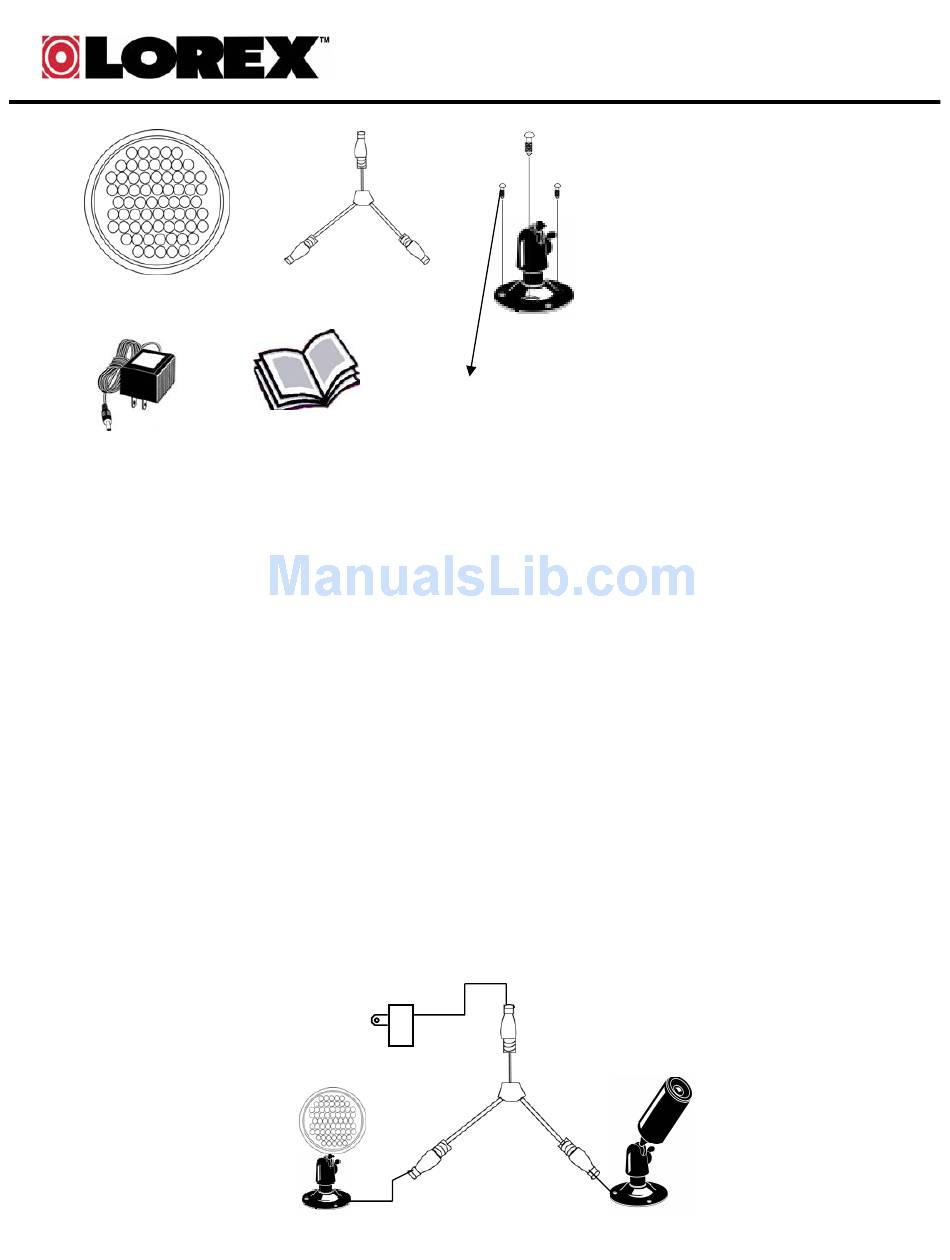

CONNECTION WITH 'Y' CONNECTOR - FOR USE WITH SPECIALTY CAMERAS
A 'Y' connector cable is supplied with this system. A 'Y' connector cable allows you to split the power; requiring
you to use only one power supply.
1. Plug the Y connectors DC socket into the supplied 12V DC 700mA power adapter
2. Plug one side of the Y connector's DC plug into the Night Vision's DC IN jack and the other end to the camera.
3. Plug the 12V DC power supply into an electrical outlet and proceed with the installation of the Night Vision to the
Camera (see the diagram below for more details)
NOTE: FOR OPTIMAL PERFORMANCE , PLACE THE NIGHT VISION ACCESSORY AS CLOSE AS POSSIBLE
TO THE CAMERA
MODEL VQ2120
NIGHT VISION ACCESSORY
'Y' CONNECTOR
MOUNTING SCREWS
OWNERS MANUAL
12V DC POWER ADAPTER
NIGHT VISION
METAL STAND
Y CONNECTOR
SPECIALTY CAMERA
THIS PACKAGE CONTAINS:
1 - Night Vision Accessory
1 - 12 V DC Power Supply
1 - 'Y' Connector
1 - Metal Stand for Night Vision
3 - Mounting Screws
1 - Owners Manual
1 - Warranty Card
