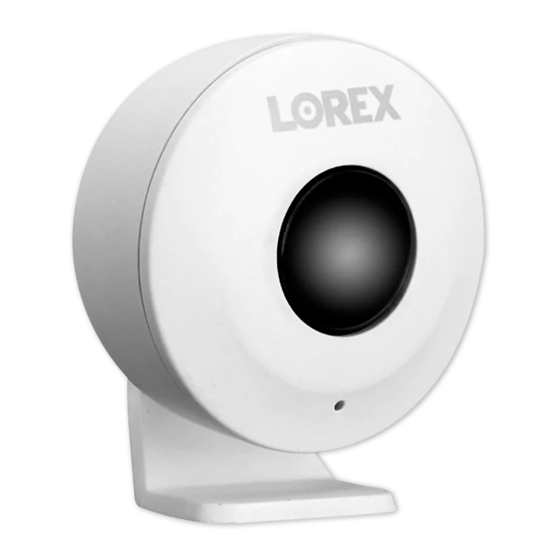

Motion Sensor
AM41TK-Z
Quick Start Guide
lorex.com
AM41TK_QSG_EN_R1.indd 1
AM41TK_QSG_EN_R1.indd 1
Package Contents
PIR Sensor
Bracket
(optional)
Overview
Battery slot
PIR sensor
LED indicator
Pin insert
Mounting Adhesive
Pin*
*May include one or more, depending on the package purchased.
To purchase additional sensors, visit
lorex.com
and/or authorized resellers.
Specifications
•
Environment: Indoor
•
Maximum detection distance: 26 feet
•
Maximum detection angle: 110°
•
Operating temperature: 14°F~113°F
•
Operating humidity: 0-95%RH
•
Battery: CR2450
•
Protocol: Bluetooth 5.0
LED Behavior
See the table below for definitions of the
sensor's LED behaviors:
Behavior
Meaning
(solid for 2 seconds)
Powered on.
(flashing rapidly)
Ready to pair.
Pairing successful.
(solid for 2 seconds)
Pairing failed. Try
(flashing 3 times)
repeating the setup.
Alarm has been
(flashing rapidly)
triggered.
Firmware upgrade in
(flashing)
progress.
WARNING:
CHOKING HAZARD
KEEP OUT OF REACH OF CHILDREN
Lorex products come with a standard 1-year
warranty. For more information about Lorex's
warranty policy, visit lorex.com/warranty.
AM41TK_QSG_EN_R1
2020-05-04 5:03:36 PM
2020-05-04 5:03:36 PM
Advertisement
Table of Contents
Related Manuals for Lorex AM41TK-Z
Summary of Contents for Lorex AM41TK-Z
- Page 1 PIR sensor KEEP OUT OF REACH OF CHILDREN • Operating temperature: 14°F~113°F lorex.com • Operating humidity: 0-95%RH Lorex products come with a standard 1-year • Battery: CR2450 LED indicator warranty. For more information about Lorex’s • Protocol: Bluetooth 5.0 warranty policy, visit lorex.com/warranty.
- Page 2 Tap the + icon on the top right of the screen to add more 4. Snap the sensor closed with the battery sensors. slot meeting the Lorex logo at the top. STEP 2: Installing the Motion Sensor Location tips: Option A Option B - Bracket •...
- Page 3 IC Statement This device complies with Industry Canada licence-exempt RSS standard(s). This device may not cause interference, and This device must accept any interference, including interference that may Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux suivantes : L’appareil ne doit pas produire de brouillage, et This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.
- Page 4 FCC Statement This device may not cause harmful interference, and This device must accept any interference received, including interference responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
