Excessive Tab; All Strands Not Captured By Core Wings; Terminal Straightness; Cut Or Missing Strands - Power Signal Group Hand Crimp Tool User Manual

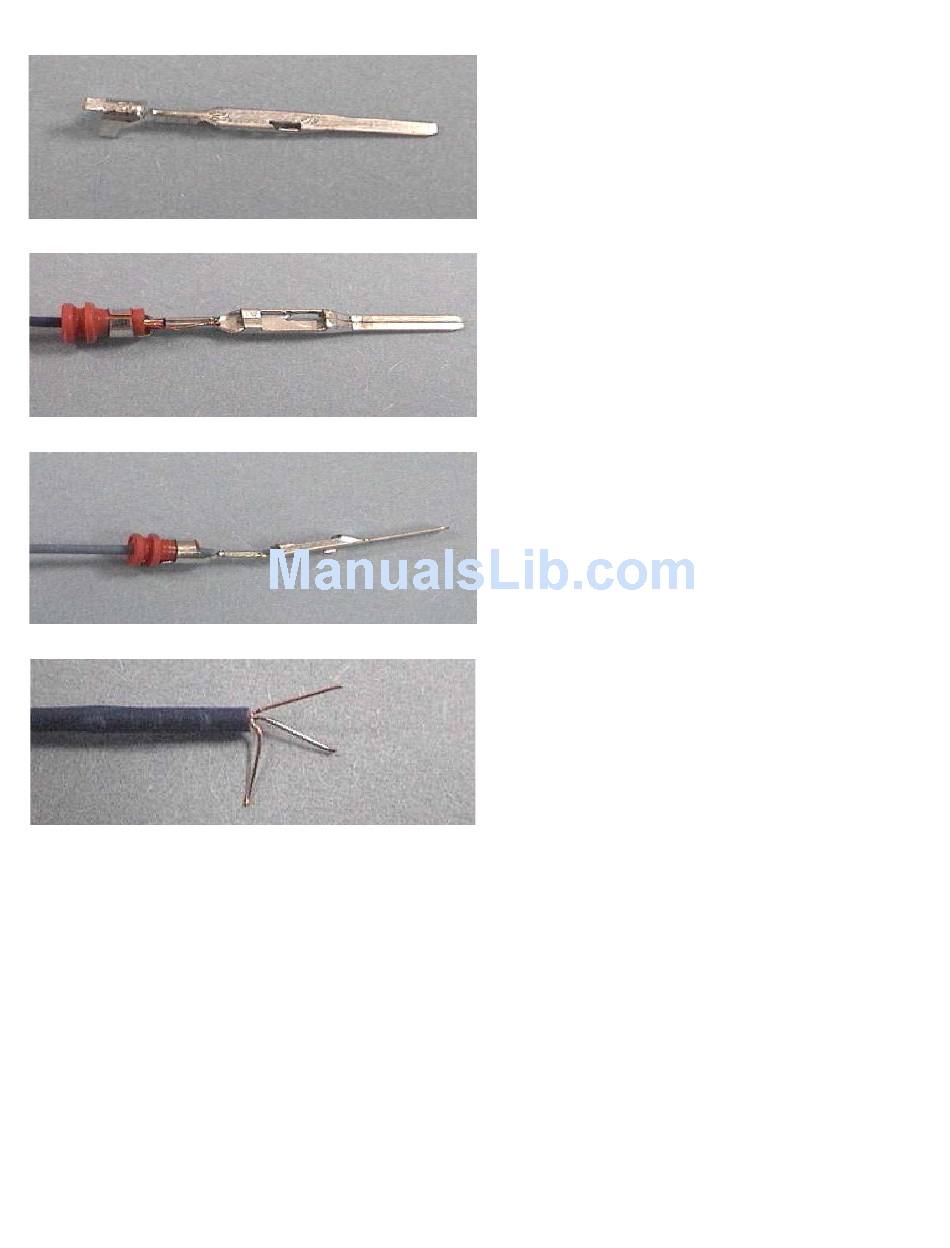

Excessive Tab

All strands not captured by core wings:

Terminal straightness:

Cut or missing strands:

HCT Maintenance and Cleaning
Responsible personnel and operators of the Power & Signal Group HCT should maintain the tool with each use.
• Use a clean, lint-free cloth to remove dust, moisture, and debris from the tool. Do not use abrasive cleaners on
the tool, which could result in damage.
• Make sure that all screws and other removable parts are secure and in place.
• All pivot points, bearing surfaces, joints, and other movement points should be regularly oiled.
• When the tool is not in use, its handles should be closed to prevent foreign objects from being lodged in the
niches and recesses of the tool.
• Store the tool in a clean and dry area.
8
May damage seal or cause seal to not seal properly.
Terminals not cut off strip properly.
May cause a loose crimp and electrical or mechanical
non-conformance. May need to inspect strands prior to
crimping.
Excessively bent terminals may cause terminals not to
seat, push mating terminal out of cavity, or not be able to
seat Terminal Position Lock. May be caused by locating
terminal incorrectly in tool.
Incorrect stripping of cable. May cause a loose crimp and
electrical or mechanical non-conformance.
