Hct Visual Inspection; Wire Stripper Instructions - Power Signal Group Hand Crimp Tool User Manual

HCT Visual Inspection

• Quality control personnel should regularly check up on the HCT to ensure that crimp quality is optimal.
• Inspections on the tool should be made regularly and logged.
• The frequency of use, working environment, company standards, and operator training, strength, and
proficiency are some factors to take into consideration when inspecting the tool.
• When visually inspecting the tool, grease should be removed by using a commercial degreaser that will not
negatively affect the tool.
• After the tool has been degreased, make sure that the range of motion on the tool is quick and clean when you
open and close the tool.
• Inspect that the wire stop, holders, jaws, and other moving parts are in place.
• Make sure that the unit is not missing any screws and that the emergency release is operational.
• If there is any damage spotted, make sure it is noted and properly cared for. If the tool is still in useable
conditions, then lubricate the tool and return to service. Do not use excessive amounts of oil.
• If any adjustments or replacements need to be made, please contact the Power & Signal Group service number
for your region.

Wire Stripper Instructions

Obtain the proper strip length from the Crimp Tool Reference Data Sheet, which is listed for each cable gauge size of the
specified terminal part number. (Wire Strippers are not included with all HCTs)
• Adjust the red wire stop on the stripper to the proper strip length.
• Inspect the stripped leads carefully for cuts, scrapes, missing strands or deformed insulation in the strip area.
• Readjust wire stripper if necessary.
• A complete visual inspection is recommended prior to crimping.

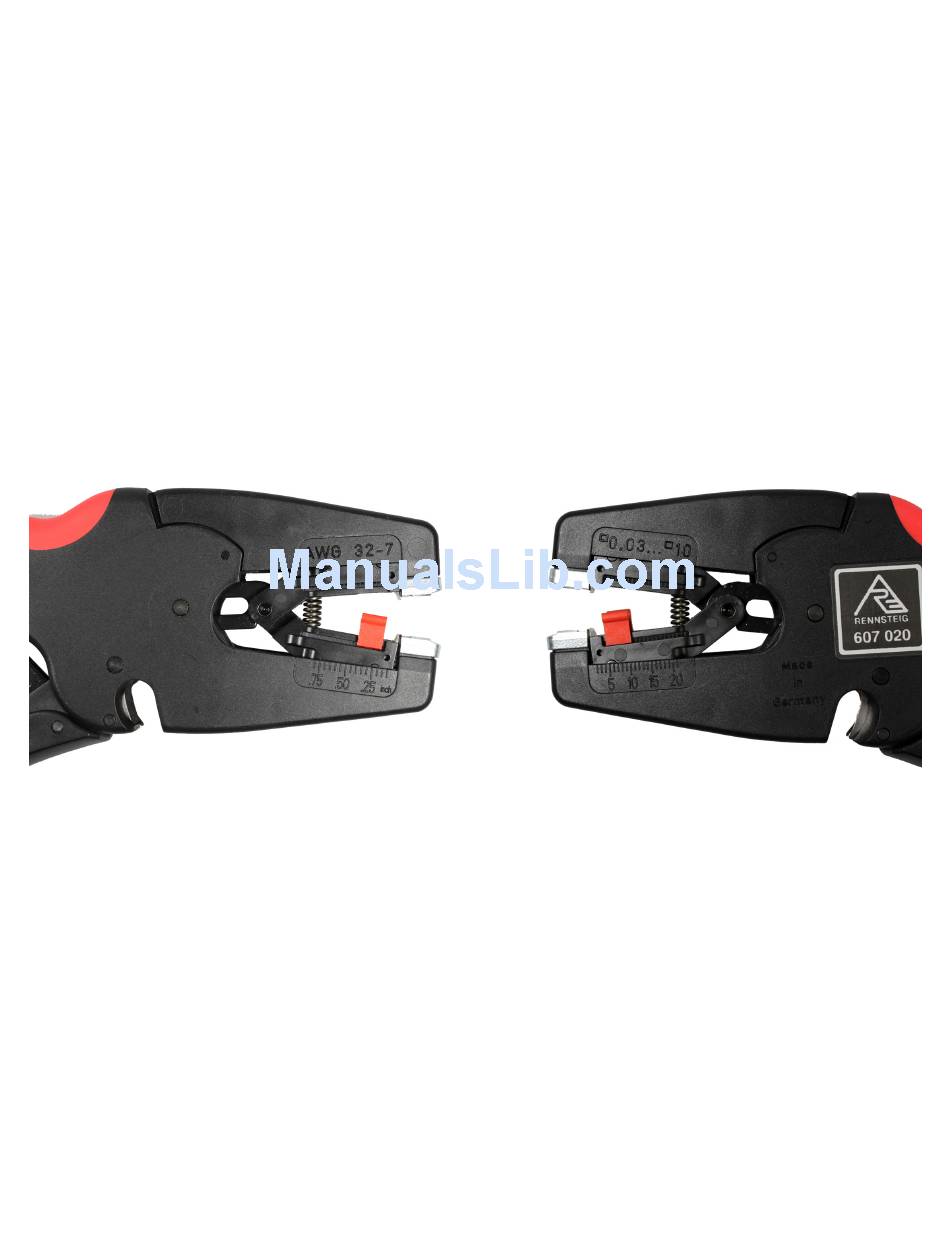

Imperial scale (inches)
(for wire gauge 32-7)
HCT Technical Support
For assistance, please contact:
Power & Signal Group NA
4670 Richmond Road, Suite 120
Cleveland, OH 44128 USA
Engineering Tech Line: (800) 610-4837 or (216) 378-6600 ext. 5422
Sales: (800) 722-5273 or (216) 378-6600 or sales@powersignal.com
Power & Signal Group EMEA
Itterpark 9-11
40724 Hilden Germany
Engineering Tech Line: +49 2103 250 510
Sales: +49 2103 250 0 or saleseurope@powersignal.com
Power & Signal Group Asia
6/F Building 1
3000 Long Dong Avenue
Pudong, Shanghai 201023 China
Sales: +86 21 289 32000 or salesasia@powersignal.com
Metric scale (mm)
(for wire gauge 0.03-10)
