Tool Types

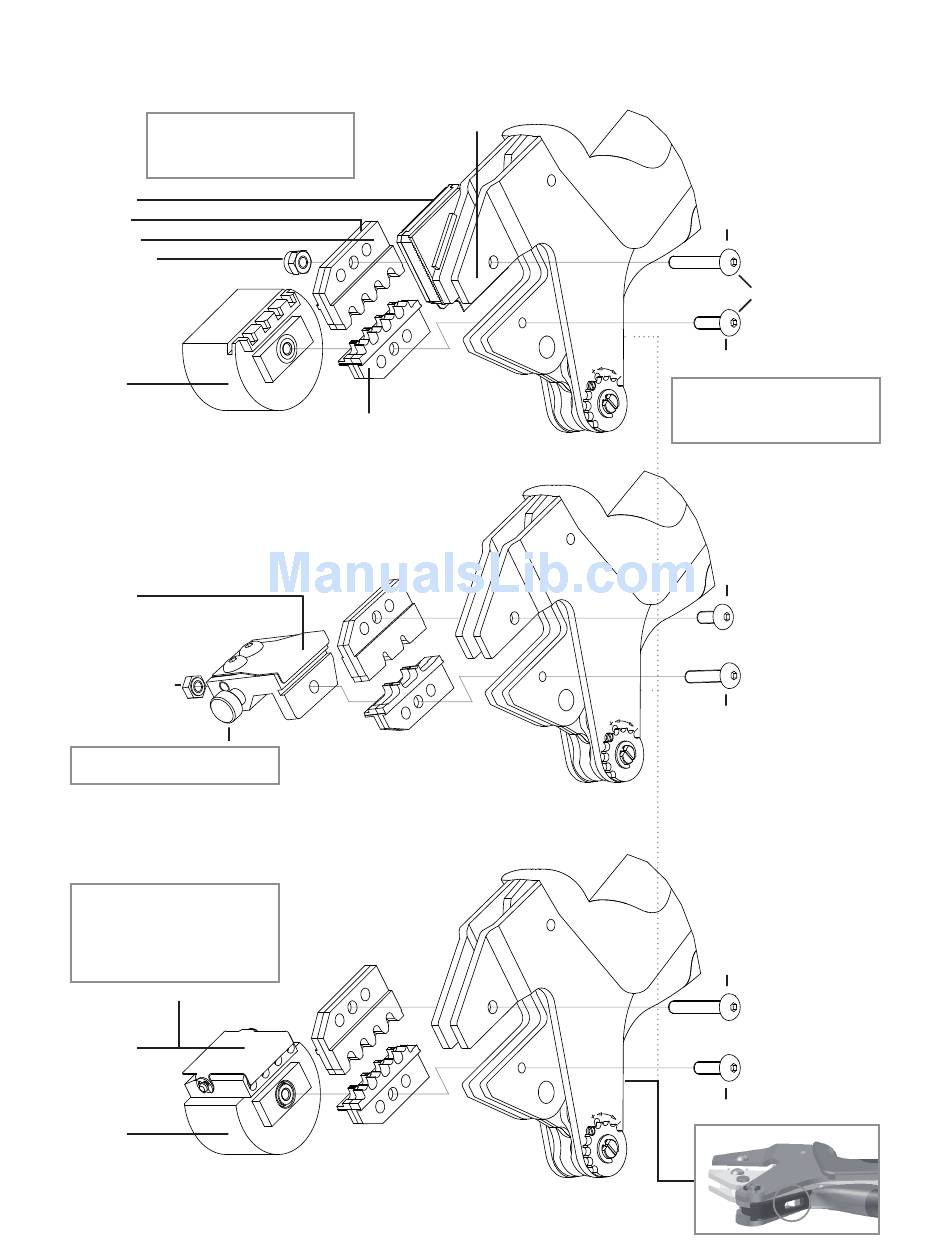

Type 1: Box & Blade Terminal
Do not over tighten the wire stop
M4 nut. Make certain that the wire
stop spring loaded blade moves
freely.
Wire Stop
Chamfer
Upper Die
M4 Lock Nut
Locator
Type 2: Pin & Sleeve Terminals
Wire Stop
M4 Regular Nut
Turn small knob to open and close
hold terminal.
Type 3: Pin & Sleeve Terminals
- Press to Open
- Insert contact
- Release to close on Contact
- Open to release contact
- Align to bottom die-Snap
Wire Stop
Locator
For All Tool Types: Place end of stripped wire against the wire stop.
4
Stationary jaws
Lower Die
M4 X 25 mm Allen Screw
Die Retaing Screws
M4 X 16 mm Allen Screw
Assemble screws without fully
tightening. Tighten screws after
closing handles to fully seat the
upper and lower die.
M4 X 11 mm
Allen Screw
M4 X 18 mm
Allen Screw
M4 X 11 mm Allen Screw
M4 X 16 mm Allen Screw
Emergency release
