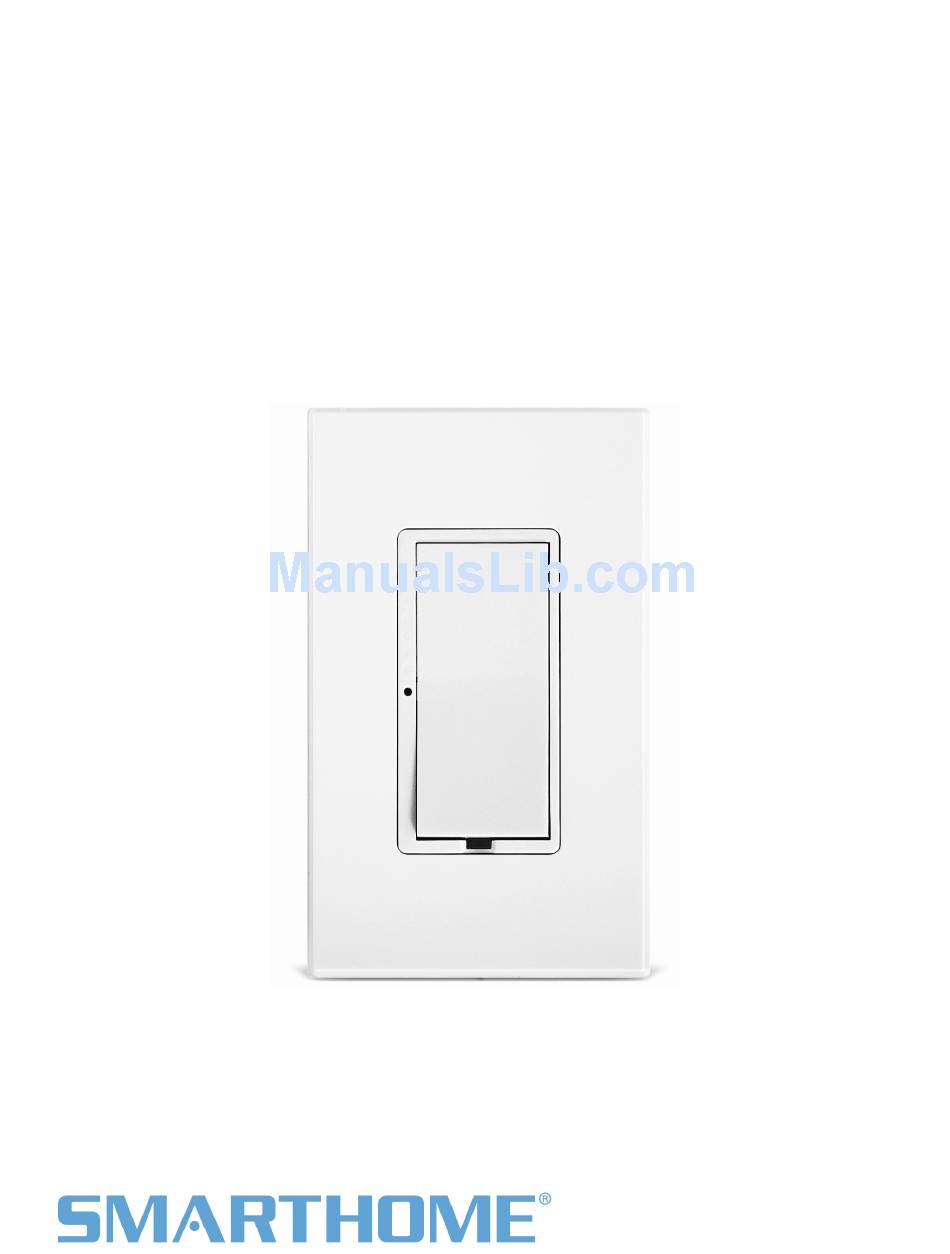

- Page 1 Smarthome X10 Relay Wall Switch Owners Manual (#X10WS13A, X10WS13AI) Page 1 of 7 X10WS13A Rev: 10/7/2011 6:08 PM...
-
Page 2: Table Of Contents
About X10 Wall Switch ..........................3 Features & Benefits ........................... 3 What’s in the Box?............................. 3 Getting Started ............................4 Identifying the Electrical Wires in your Home.................... 4 Installation ..............................5 Setting the X10 Address..........................6 Removing the X10 Address........................6 Factory Reset .............................. -
Page 3: About X10 Wall Switch
About X10 Wall Switch This elegant and full-featured switch gives you local control and X10 capabilities for the connected light or other non-dimmable load. Remotely turn the light on and off from an X10 controller or send commands to other X10 devices when you use X10 Wall Switch’s paddle. Switch Paddle Status LED (Top: On... -
Page 4: Getting Started
Getting Started CAUTIONS AND WARNINGS Read and understand these instructions before installing and retain them for future reference. This product is intended for installation in accordance with the National Electric Code and local regulations in the United States or the Canadian Electrical Code and local regulations in Canada. Use indoors only. This product is not designed or approved for use on power lines other than 120V 60Hz, single phase. - Page 5 Installation 1) Turn off the circuit breaker (or remove fuses) supplying power to the switch location 2) Remove the existing wallplate from the switch you are replacing. Then, unscrew the switch and remove it from the junction box. 3) Disconnect the wires from the switch you are replacing. If the wires cannot be detached by unscrewing them, cut the wires where they enter the switch and then strip ½...
-
Page 6: Setting The X10 Address
3) Continue to hold down the Set button for 3 seconds, and then release A few seconds after you release the Set button, X10 Wall Switch will double-beep and flash its LED once Specifications View specifications for X10 Wall Switch at: www.smarthome.com/X10WS13A.html Page 6 of 7 X10WS13A Rev: 10/7/2011 6:08 PM... -
Page 7: Troubleshooting
Some states do not allow limitations on how long an implied warranty lasts and/or the exclusion or limitation of damages, in which case the above limitations and/or exclusions may not apply to you. You may also have other legal rights that may vary from state to state. © Copyright 2011 Smarthome, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845, www.smarthome.com...
