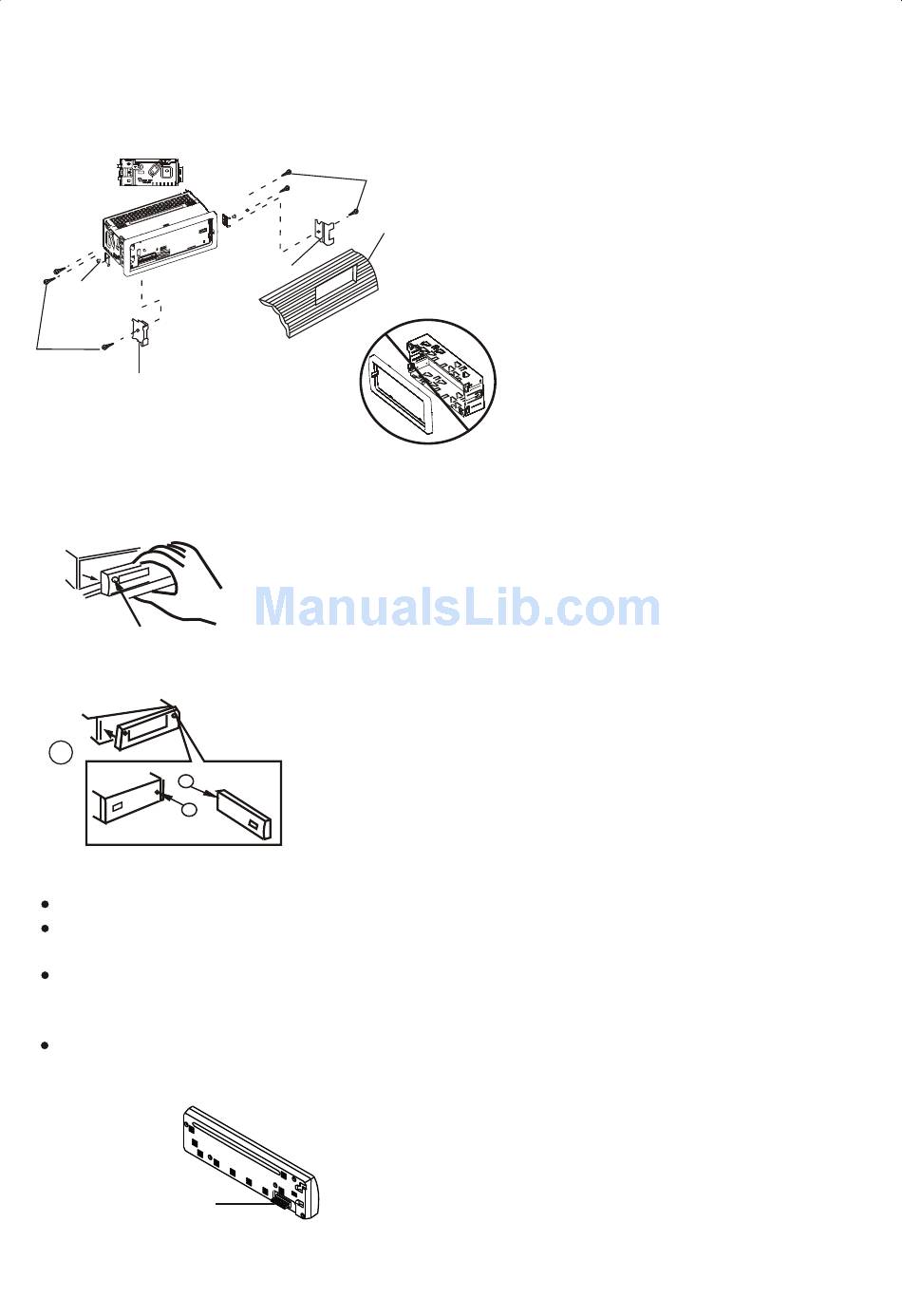

- DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.
Fastening the unit to the factory radio mounting bracket.
3
2
5
2. DETACHABLE CONTROL PANEL (D.C.P .)
Removing The Detachable Control Panel (D.C.P .).
PANEL RELEASE
BUTTON
Attaching the DCP
2
A
B
CAUTION
DO NOT insert the D.C.P from the left side. Doing so may damage it.
The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case
and be careful not to drop it or subject it to strong shocks.
When the release button is pressed and the D.C.P is unlocked, the car's vibrations may
cause it to fall. To prevent damage to the D.C.P , always store it in a protective case after
detaching it.
The rear connector that connects the main unit and the D.C.P is an extremely important
part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
Socket
2
4
5
Note:
If the D.C.P is dirty, wipe off the dirt with soft, dry cloth
only. And use a cotton swab soaked in isopropyl
alcohol to clean the socket on the back of the D.C.P .
E - 2
1. Select a position where the screw
holes of the bracket and the screw
holes of the main unit become
aligned (are fitted) and tighten the
screws at 2 places on each side.
2. Screw
3. Factory radio mounting bracket.
4. Dashboard or Console
5. Hook (Remove this part)
Note: the mounting box, outer trim ring,
and half-sleeve are not used for method
B installation.
1. Turn the power off
2. Press the D.C.P . release button
3. Remove the D.C.P .
1. Attach the panel at the right side first, with
point B on the main unit touching point A on
the D.C.P . (As shown on the diagram).
2. Then press the left side of D.C.P . onto the
main unit until a click sound is heard.
