DETACHABLE CONTROL PANEL (D.C.P .)

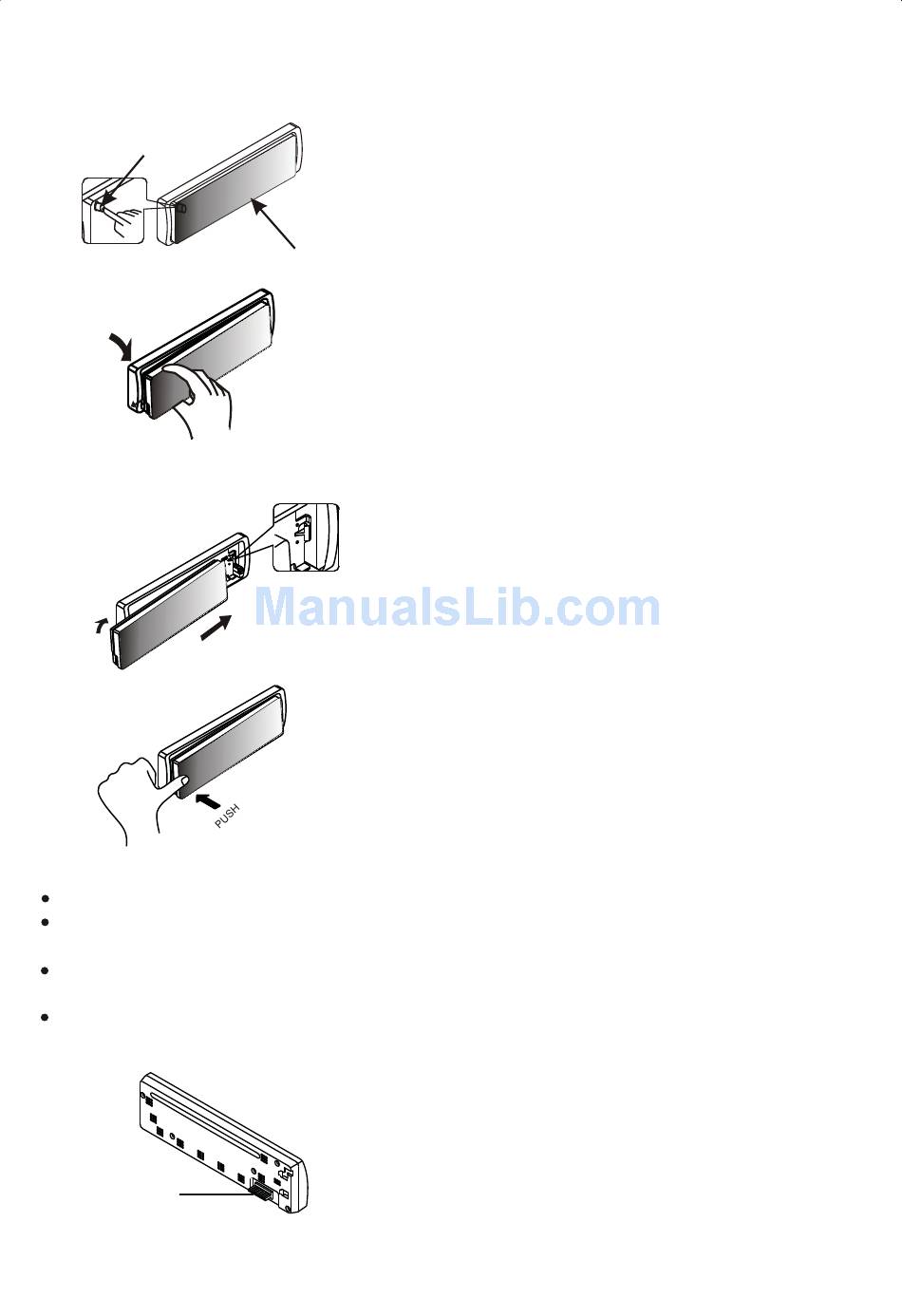

Removing The Detachable Control Panel (D.C.P .).
RELEASE
BUTTON
Attaching the Detachable Control panel (D.C.P .)
2.
CAUTION
DO NOT insert the D.C.P from the left side. Doing so may damage it.
The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and
be careful not to drop it or subject it to strong shocks.
When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it
to fall. To prevent damage to the D.C.P , always store it in a protective case after detaching it.
The rear connector that connects the main unit and the D.C.P is an extremely important part. Be
careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
Socket
D.C.P .
1.
1. Turn the Power off.
2. Press the Panel Release Button.
3. Remove the D.C.P .
1. Insert the right side of the D.C.P . Into
the main unit.
NOTE: The D.C.P . Must be attached into
the T-Joint.
2. Press the D.C.P . On to the left side of
middle of D.C.P . Until a click sound is
heard.
Note:
If the D.C.P is dirty, wipe off the dirt with soft,
dry cloth only. And use a cotton swab soaked
in isopropyl alcohol to clean the socket on the
back of the D.C.P .
E - 3
