Notes:
Your MR-1200R was designed for use
in marine applications such as in a
boat. It will also work in cars, trucks,
off road vehicles, etc.
Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
Before finally installing the unit,
connect the wiring temporarily and
make sure it is all connected properly
and the unit and the system work
properly.
Use only the parts included with the
unit to ensure proper installation.
The use of unauthorized parts can
cause malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications to the boat or
the vehicle.
Install the unit where it does not get in
the driver's way and cannot injure,the
passenger if there is a sudden stop,
like an emergency stop.
If installation angle exceeds 30efrom
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such
as from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.

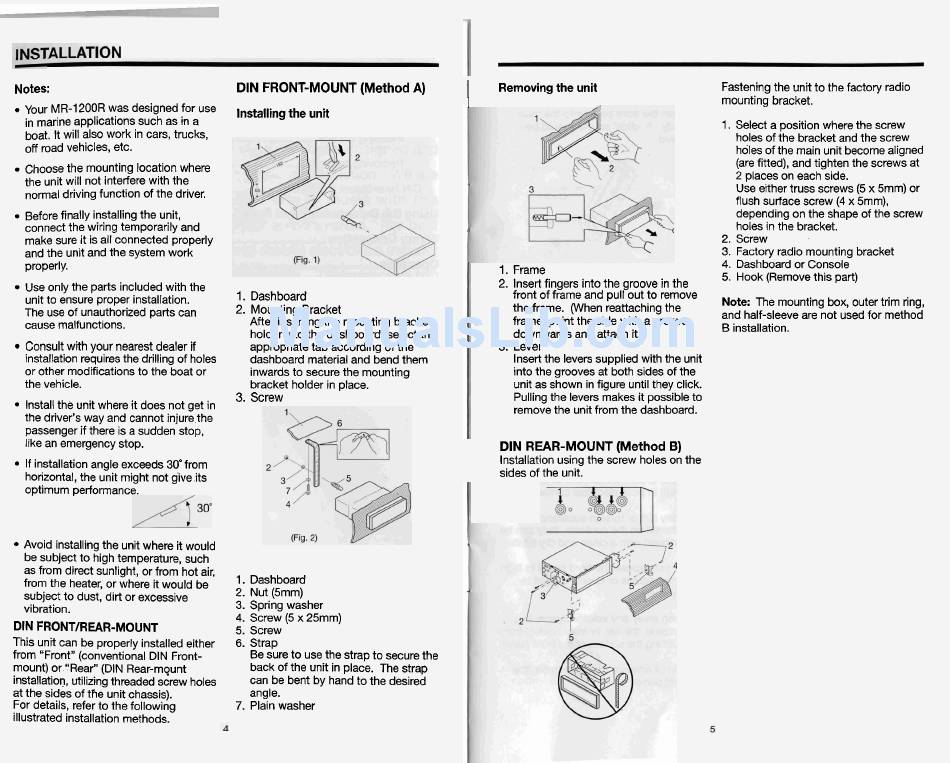

DIN FRONTIREAR-MOUNT
This unit can be properly installed either
from "Front" (conventional DIN Front-
mount) or '.'Rearw (DIN Rear-mqunt
installation, utilizing threaded screw holes
at the sides of the unit chassis).
For details, refer to the following
illustrated installation methods.
DIN FRONT-MOUNT (Method A)
Installing the unit
1. Dashboard
2. Mounting Bracket
After inserting the mounting bracket
holder into the dashboard, select the
appropriate tab according of the
dashboard material and bend them
inwards to secure the mounting
bracket holder in place.
3. Screw
1. Dashboard
2. Nut (5mm)
3. Spring washer
4. Screw (5 x 25mm)
5. Screw
6.
Strap
Be sure to use the strap to secure the
back of the unit in place. The strap
can be bent by hand to the desired
angle.
7. Plain washer
!
Removing the unit
1. Frame
2. Insert fingers into the groove in the
front of frame and pull out to remove
the frame. (When reattaching the
frame, point the side with a groove
downwards and attach it.)
3. Lever
Insert the levers supplied with the unit
into the grooves at both sides of the
unit as shown in figure until they click.
Pulling the levers makes it possible to
remove the unit from the dashboard.
DIN REAR-MOUNT (Method B)
Installation using the screw holes on the
sides of the unit.
Fastening the unit to the factory radio
mounting bracket.
1. Select a position where the screw
holes of the bracket and the screw
holes of the main unit become aligned
(are fitted), and tighten the screws at
2 places on each side.
Use either truss screws (5 x 5mm) or
flush surface screw (4 x 5mm),
depending on the shape of the screw
holes in the bracket.
2. Screw
3. Factory radio mounting bracket
4. Dashboard or Console
5. Hook (Remove this part)
Note: The mounting box, outer trim ring,
and half-sleeve are not used for method
B installation.
