USER'S GUIDE
ultimate
�
• monitor your heart rate continuously with a
compatible chest strap or on-demand with
the strapless quick-touch sensors
• track calories burned during a workout
• monitor your performance with 16 lap timers
and lap memory

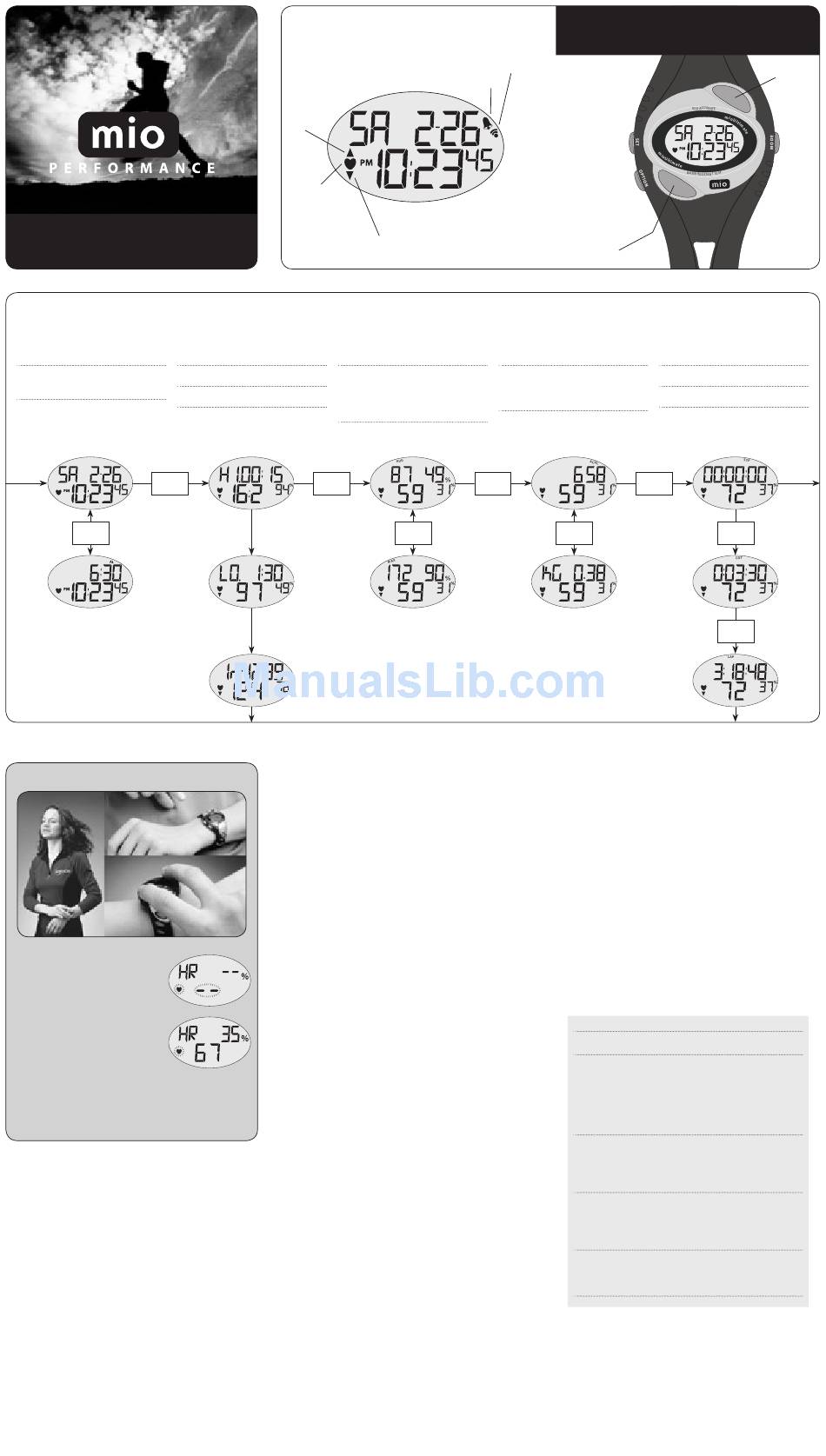

B. MODES OF OPERATION
Press MODE to move to the next mode.
TIME & DATE
• Displays time and date
ALARM
• Set alarm
press
MODE
press
OPTION
C. TAKE YOUR HEART RATE
• Place index finger (pad not tip)
down on LOWER MIO button &
rest middle finger (pad not tip)
on UPPER MIO sensor.
• Place thumb on watch buckle
for support.
• Press down with index finger pad
until heart icon flashes.
• Wait for heart rate readout (5–7
seconds). Mio will beep to let you
know that the reading is ready. Heart
rate appears in beats per minute (BPM). The small digits at the right
display the percentage of your current heart rate to your maximum heart rate (up
to 99%). Mio calculates this percentage using your personal data. A maximum
heart rate is an estimate with a variability of up to 15 BPM.
D. SET TIME
• In Clock Mode, press and hold SET button for 2 seconds
until "hold" message disappears.
• Release SET button and press set to change between 24
and 12 hour options.
• Press MODE button to select and advance to hour digit setting.
• Press SET button to adjust hour digit (hold button for fast
advance).
• Press MODE button to select and advance to minute set-
ting. Repeat process for minute setting.
Note: 12 hour clock will display American calendar format of
month/date. 24 hour clock will display European calendar
format of date/month.
• Press MODE button to select and advance to Date setting.
• Press SET button to change year (hold button for fast advance).
• Press MODE button to select and advance to month setting.
• Press SET button to adjust day (hold button for fast advance).
• Press MODE button to select and exit.
A. MIO ULTIMATE AT-A-GLANCE
��������
������
���������������
�����������������
��������������
��������
Warning: This watch is a monitoring tool for training and fitness. Before beginning any exercise program, please consult your doctor
to establish your individual upper and lower heart rate limits, as well as the exercise frequency and workout duration appropriate for
your age and current fitness level.
HIGH RANGE TIMER
LOW RANGE TIMER
IN RANGE TIMER
• Displays time above, below and in
heart rate range
press
MODE
E. SET ALARM
• In Clock Mode, press OPTION button to select Alarm.
• Press and hold SET button for 2 seconds until "hold" mes-
sage disappears.
• Press SET button to change between on and off options.
• To turn off, press MODE button when "off" appears. To exit to Clock
Mode, press MODE button twice and OPTION button once.
• To turn on without changing alarm setting, press MODE button
when "on" appears. To exit to Clock Mode, press MODE button
twice and OPTION button once.
• To change alarm setting, press OPTION button to cycle through
to select specific weekday or "all." Alarm will sound on specified
day (MO on) or everyday (ALL on). Press MODE button to select
and advance to time setting.
• To set time, press SET button to adjust hour digit (hold for fast
advance). Press MODE button to select and advance to minute
setting. Repeat process for minute setting.
• To exit to Clock Mode, press OPTION button once.
F. AUDIBLE SIGNAL
To turn on or off beeper in High/Lo/In Timer, Calorie and Fat Burn
Modes, press and hold MODE button for 2 seconds. Beeper icon
displays when beeper is on.
G. CHEST STRAP (OPTIONAL)
To ensure a proper heart rate display, the chest transmitter must
be properly moistened and positioned:
Moisten the back surface of the conductive rubber pads with
saliva or ECG conductive gel (do not use water or moisturizing creams; these are
insulators and will not conduct the heart rate signal).
Snap the key tabs on the elastic belt into the keyholes at the two
ends of the rubber transmitter, and adjust the strap so that the
transmitter fits snugly below the pectoral muscles. Mio ULTI-
MATE may take a minute or two to display an accurate count.
This is normal and may take longer on cool or dry days. For
optimal performance check the user manual that came with your
chest strap.
H. HEART RATE FUNCTIONS
Note: Except for the finger sense and chest strap heart rate
detection, the Stopwatch must be turned on (in count-up) to acti-
vate the heart rate functions.
FINGER SENSE HEART RATE DETECTION
There are two sensors on the face of the watch. To measure
your heart rate, place your finger pads on each, pressing gently.
"HR" appears at upper left, your heart rate in beats per minute
below and the estimated percentage of maximum heart rate in
the upper right. (See section on Average Heart Rate Mode to set
maximum heart rate.) Release your fingers and Mio ULTIMATE
will return to the previous mode.
������������������������
�����
���������������
AVERAGE HEART RATE
• Displays your average heart rate
during workout (stopwatch must
be running)
MAX. HEART RATE
• Displays your maximum heart rate
during workout
press
MODE
press
OPTION
������������������������������������������������������
������������������������������������������������������������
�������������������������������������������������
����������
���������������������
�������������������
�������������������
�����������������
����������������
�������������
�����
�������������
����������������
�����������������������
��������������������������
�������������������
���������
������
CALORIE BURN
• Displays how many calories you
burned during your workout
FAT BURN
• Displays how much fat you burned
during your workout
press
MODE
press
OPTION
CHEST STRAP HEART RATE DETECTION
For continuous heart rate detection, wear the chest strap in
the correct position (see section G) and Mio ULTIMATE will dis-
play your current heart rate in Beats Per Minute (BPM) and the
estimated percentage of Maximum Heart Rate (MHR). If you
use the finger sensors while wearing the strap, Mio ULTIMATE
displays the finger sense heart rate.
HEART RATE TRAINING ZONE
• Start the stopwatch timer to record time above, below or in
heart rate target zone.
To personalize a safe and effective workout, you can set your
own training zone limits.
Note: To decrease values when entering personal information
keep scrolling up until the maximum value changes over to the
lowest value.
STEP 1:
Use the following Heart Rate Zone chart to select the
zone you wish to exercise in. You should consult a medical
professional when selecting a training zone, especially if you
have a heart condition.
Heart Rate Zone
Health Zone
Brisk walking; improves health, but not necessarily
fitness (ie strength/endurance); good for warm up
and cool down sessions; helpful for many patients
with heart disease, obesity and arthritis; breathing is
comfortable, talking is easy.
Conditioning Zone
Slow jogging; suitable for beginners and warm ups; longer
sessions required to burn fat and lose weight; breathing
more noticeable, but conversation still fairly easy.
Aerobic Fitness Zone
Easy running; increases fitness, improves strength and
endurance; burns both fat and carbohydrates equally;
breathing becomes harder, but conversation still possible.
Anaerobic Power Zone
Fast running; shorter (1 hour) sessions for athletic
training to increase performance; heavier breathing.
Competitive Training Zone
STEP 2:
Calculate your MHR using the same equation Mio does:
• Men: (214 – (0.8 x age in years)) = MHR in BPM (Beats per Minute)
• Women: (209 – (0.7 x age in years)) = MHR in BPM
Example: (214 - (0.8 x 35)) = 186 BPM (35 year-old man)
���������
������
����
������
��������
��������
����
���������
�����
���������������
STOPWATCH
COUNTDOWN TIMER
LAP TIMER
press
OPTION
press
OPTION
% of Maximum heart rate
50-60%
60-70%
70-80%
80-90%
90-100%
