Mio FUSE - Heart Rate Monitor and Activity Tracker Manual

Welcome

Congratulations on your purchase of Mio FUSE, the all-in-one performance wristband that tracks your heart rate, workout data, daily activity, and sleep data. Mio FUSE uses ANT+ ™ and Bluetooth ® Smart (BLE) technology to wirelessly transmit your data to a smartphone, bike computer, or another compatible device. Track your workouts and sleep with the Mio GO app, track your PAI score with the Mio PAI app, or take advantage of hundreds of other fitness apps.

Remember to register your Mio FUSE online at mioglobal.com/register to receive full warranty service.

What's Included

1. Mio FUSE
2. USB Charger
3. Warranty

Important Safety Information

Be sure to consult your doctor before beginning a new exercise program.

While Mio FUSE provides accurate heart rate measurements, it is not a medical device. The Mio FUSE and USB charger contain strong magnets. If you use a pacemaker, defibrillator, or other implanted electronic devices, consult your doctor before using Mio FUSE.

See Battery Care for important battery care and battery safety information.

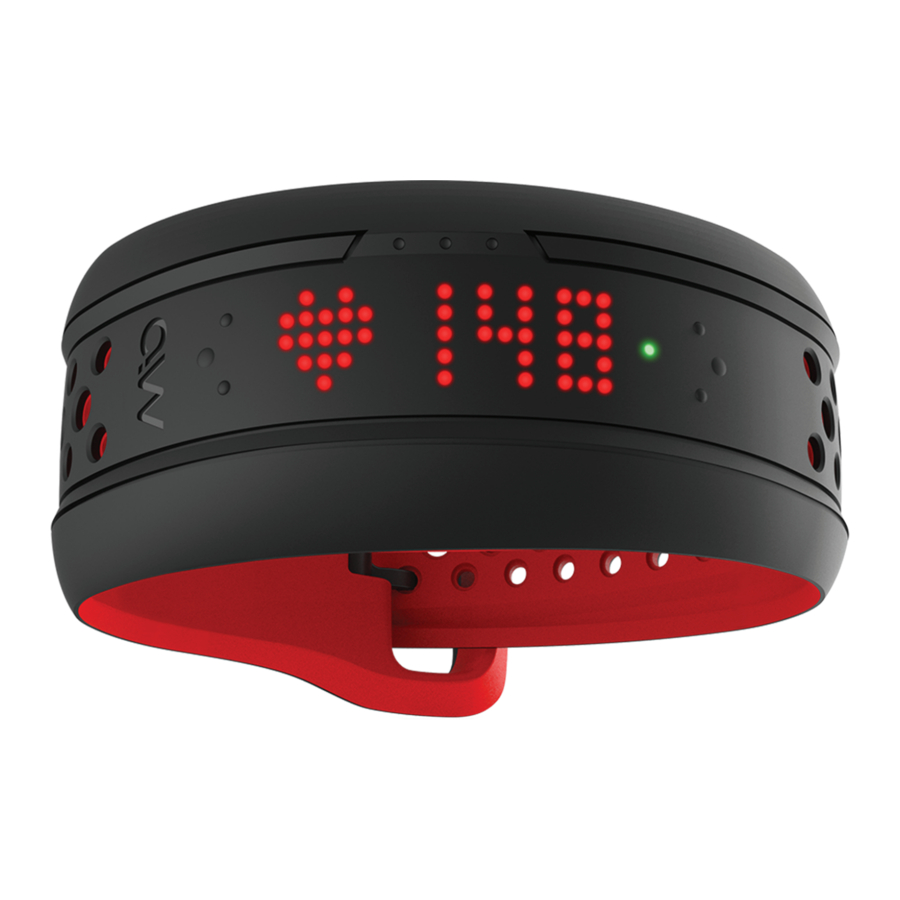

Your Mio FUSE

A: Heart Rate / Timer Touchpoint
B/C: Scroll Touchpoints
D: Display
E: Heart Rate (HR) Indicator Light

Getting Started

Activating Your Mio FUSE

To activate your Mio FUSE, simply charge it with the USB charger provided. Mio FUSE has successfully activated when you see this symbol on the display:

Charging

1.
   Make sure the two charging pins on the back of Mio FUSE are dry. If they are wet, pat them gently with a dry towel.
2. Plug the USB charger into the USB port of your computer or an official wall charger with an output of no more than 5 volts.
3. Align the two charging pins on the back of Mio FUSE to the two charging pins on the USB charger. The magnets in the charging pins will help the two pieces lock into place.


The display will show to indicate that the battery is charging. Once the battery is fully charged, the display will show:

When the battery level is low, Mio FUSE will show . You can also see the battery level in Mio GO when the Mio FUSE is connected to the app.

Each full charge will provide approximately 6-7 days of use, if heart rate monitoring is used for 1 hour per day.

For important battery care and battery safety information, please see Battery Care.

Setup

Initial setup of the Mio FUSE must be done through the Mio GO app.

Download Mio GO onto your smartphone from:

After Mio GO is installed, open the app and follow the setup instructions.

Set Up Profile

Set up your user profile. Your information will allow Mio GO to provide more accurate data and a better interactive training experience.

Connect Mio Device

1. Turn on the Bluetooth function of your smartphone.
2. Within Mio GO, select your Mio FUSE from the list of devices found. Once connected, the time displayed on Mio FUSE will automatically sync with the clock on your smartphone.
3. On the upper right hand corner of the Workout screen, tap > to customize your device. See Device Settings for more information about these settings:

• Choose your preferred heart rate training mode and set your heart rate zone limits
  (See Heart Rate Training Modes for more information).
• Customize Mio FUSE screens and display options.
• Set your daily goal.
• Select left/right arm position.
• Turn on/off vibration alert.
• Turn on/off Screen Lock feature.

4. Update Mio FUSE firmware to version 1.20 or higher to enable Sleep Tracking.
5. Check your Mio FUSE firmware version at the bottom of the Mio GO Setup screen.
6. If your firmware version is lower than 1.20, force close the Mio GO app by:

• iPhone: Press the home button twice and swipe up on the app.
• Android: Minimize Mio GO and click the X to close.

7. On your phone, go to Settings > Bluetooth and ensure your phone is not connected to your Mio device. If it is connected, select all paired devices and select "Forget this device."
8. Open the Mio GO app. From the top left menu, select "Help" then "Firmware Update."
9. Select your Mio device and update – this may take up to 5 minutes. You will receive a message when the firmware update has been complete.
10. If the update takes longer than 5 minutes, force close Mio GO and repeat. Your Mio FUSE is now ready to use! For assistance in setting up your device, please visit mioglobal.com/support.

USING MIO FUSE

Wash Mio FUSE regularly with mild soap and water. As Mio FUSE is designed to be worn all day, regular cleaning is necessary to prevent skin irritation. Make sure you allow both your arm and Mio FUSE to dry completely before resuming wear.

Mio FUSE Touchpoints

Mio FUSE is a touch-operated device. Navigate screens and features by tapping on the Touchpoints.

Note: To prevent accidental triggering of the device, the Touchpoints are only active when your arm is in a horizontal position, parallel to the ground.

All-Day Mode

In All-Day Mode, Mio FUSE tracks and displays your daily accumulated steps, calories, distance, and goal progress. Your activity in Workout Mode is included in these totals. The values are reset to 0 at midnight each day.
Note: calories continue to be counted even during sleep so calorie count will not be 0 when you wake up.

In All-Day Mode, tap any Touchpoint to turn on the display. Tap or to scroll through the screens. The default screens are: time, calories, steps, and goal progress. You can customize which screens to display and also set your target goal through the Mio GO app. See Setup for more information.

Mio FUSE stores up to 14 days of daily summary data. If Mio FUSE runs out of memory during All-Day Mode, it will start overwriting the oldest daily summary data. Please see Data Storage and Transfer for more information.

Workout Mode

In Workout Mode, Mio FUSE tracks and displays your real-time heart rate, current heart rate zone, workout duration, calories, distance, pace, and speed.

To enter Workout Mode, you must first turn on heart rate monitoring. Touch and hold , Mio FUSE will vibrate and proceed to find your heart rate. Hold your arm still until your heart rate is found. (If you see displayed, Mio FUSE was unable to find your heart rate. Please refer to Troubleshooting.)
To stop monitoring your heart rate, touch and hold until the display shows QUIT.

Using The Workout Timer
After Mio FUSE has found your heart rate, you can begin tracking your workout.

Start: Tap to start the timer.

Scroll: During your workout, tap or to scroll through the screens. You can customize which screens to display through the Mio GO app. Please see Setup for more information.

Pause: Touch and hold to pause the timer, and again to resume.

End Workout: When the timer is paused, touch and hold to exit Workout Mode. Mio FUSE will return to All-Day Mode.

Note: Your heart rate and workout data will only be recorded when the timer is running.

Sleep Mode

In Sleep Mode, Mio FUSE tracks your sleep data, and displays your sleep data in the Mio GO app, after syncing. Sleep mode must be activated once in bed and deactivated upon waking.

Start: To enter or activate Sleep Mode, touch and hold both and simultaneously until the display changes from "HOLD" to "SLEEP?" Tap to confirm that you want to go to sleep. The display will say "SWEET DREAMS" and then "ZZZ" to confirm that it is in sleep mode.

The display will show "ZZZ" any time you touch while your FUSE is in Sleep Mode.

Stop: When you wake up, turn off or deactivate Sleep Mode using the same steps – touch and hold both and (at the same time) until the display says "WAKE?" Tap to confirm. The display will say "GOOD MORNING" and then show the time. Your Mio FUSE is no longer in Sleep Mode.

View sleep data: Sync to the Mio GO app and view sleep data. Data displayed includes resting heart rate, sleep efficiency (time spent sleeping as a percentage of total time in bed), time in bed, time spent asleep, time spent awake, time spent in light sleep and time spent in deep sleep.

Sleep Mode Troubleshooting

If your data doesn't appear after syncing to the Mio GO app:

• Try syncing again by swiping down on the workout total screen.
• Close and re-open the app.

Wearing Your Mio FUSE

To accurately monitor your workout and sleep:

1. Fasten Mio FUSE snugly on your lower forearm, about 1-3 inches (3-8 cm) above your wrist bone. The optical sensor on the back should make good contact with your skin.

2. If you have a smaller wrist, wear the Mio FUSE higher on your forearm.
3. For cyclists or users with concave wrists, wear the Mio FUSE higher and on the underside of your forearm, since bending of the wrist may affect the heart rate reading.

4. If you are using Mio FUSE with an ANT+ sport device, wear both devices on the same arm for a better ANT+ connection.


For optimal heart rate accuracy, especially if you often have cold hands or poor circulation, we strongly recommend doing a warm up exercise for a few minutes before you begin to track your heart rate.

Troubleshooting

• Minimize wrist movement when Mio FUSE is searching for your initial heart rate.
• Try tightening the strap.
• Try wearing the Mio FUSE higher on your forearm.
• On colder days, activate the heart rate reading before heading outdoors.
• If you are still having trouble, try wearing Mio FUSE on your other arm.

For additional help, please visit mioglobal.com/support.

DEVICE SETTINGS

You can configure these settings through the Mio GO app. See Setup for more information.

All-Day Screens
Select which metrics you would like displayed when you scroll through your screens in All-Day Mode.

Workout Screens
Select which metrics you would like displayed when you scroll through your screens in Workout Mode. You can select predefined options for various activities, or custom configure your screens. You can also set your display to always on while you work out.

Daily Goal
Set a daily goal for steps taken, distance traveled, active calories burned, or total calories burned. Track your progress towards the goal each day on the goal progress screen.

Arm Position

In Mio GO, select whether you will wear Mio FUSE on your left or right arm. The screen orientation will automatically change to reflect your selection. Note that in the Left arm position, Touchpoint will be above the display, and in the Right arm position, Touchpoint will be below the display.

Vibration Alert
When vibration alerts are enabled, Mio FUSE will vibrate when you:

• Begin heart rate monitoring.
• Start, pause, resume, or end a workout.
• Enter a new heart rate zone in 5-Zone Mode.
• Are outside your target zone in 1-Zone Mode.

Screen Lock
Enable screen lock to prevent accidental triggering of your device. When Mio FUSE is locked, tap any Touchpoint to see the last active screen. To unlock, touch and hold and simultaneously. The device will automatically relock after 10 seconds of inactivity.

HEART RATE TRAINING MODES

In Workout Mode, the HR Indicator Light provides real-time feedback on your heart rate. When Mio FUSE is connected to a Bluetooth device, the HR Indicator Light will flash one time, repeatedly. When no Bluetooth device is connected, the HR Indicator Light will flash twice, repeatedly.

Choose between Training Zone Mode (5-Zone) and Zone Alert Mode (1-Zone), and customize the upper and lower boundaries of each HR zone using the Mio GO app. The default mode is 5-Zone Mode. Please see Setup for more information.

Training Zone Mode (5-Zone)

In 5-Zone Mode, the HR Indicator Light shows your current HR zone. If vibration alerts are on, Mio FUSE will vibrate when you move into another HR zone.

COLOR		DESCRIPTION
	Light Blue	Rest
	Blue	Very Light
	Green	Light
	Yellow	Moderate
	Pink	Hard
	Red	Maximum

Zone Alert Mode (1-Zone)

In 1-Zone Mode, the HR Indicator Light shows whether you are below, within, or above your selected target HR zone. Mio FUSE will vibrate when you are not within your target HR zone.

COLOR		DESCRIPTION
	Blue	Below Target HR Zone
	Green	Within Target HR Zone
	Red	Above Target HR Zone

DATA STORAGE & TRANSFER

Mio FUSE can store up to 14 days of daily summary data in All-Day Mode and an additional 30 hours of exercise data in Workout Mode. Mio FUSE will display LOW MEM when there are less than 2 hours of memory remaining; it will display NO MEM when no memory is left, or when 30 exercises have been recorded. If Mio FUSE runs out of memory during Workout Mode, it will stop recording your workout and display NO MEM, but the timer will keep running.

Mio FUSE will automatically sync your data when it connects to the Mio GO app on your smartphone or you can swipe down on the workout total screen to manually sync. Sync daily to see your activity data, review your workout statistics, and clear your device memory.

For help with connecting your Mio FUSE, please visit mioglobal.com/support.

Connecting To A Receiving Device

You can connect Mio FUSE to transmit your heart rate to many fitness apps, cycling computers, GPS watches, and other sport devices through Bluetooth Smart wireless technology (BLE) and ANT+. See what devices and apps are compatible at mioglobal.com/compatibility.

You will be required to pair Mio FUSE with every new app and receiving device you use. Pairing prevents signal interference from other sensors and devices in the area.

Tips For Pairing

• Stay 30 meters (100 feet) away from other ANT+ or Bluetooth sensors and devices.
• Position the receiving device as close to your Mio FUSE as possible, ideally within 1 meter (3 feet).
• Wear the receiving device on your arm, in your front pocket, or in front of you on a belt or bike handlebar. Do not position the device behind you (e.g. in a back pocket or backpack).
• Heart rate calculation of the Mio FUSE is not based on instant R-R interval, and will not work for apps and devices that require heart rate variability (HRV) data.

Pairing With Apps Through Bluetooth

Pairing must be completed within the app settings, not in your smart device's Bluetooth settings.

If you want to pair through ANT+, you will need a device with built-in ANT+ support, or an ANT+ dongle. (For details, visit http://www.thisisant.com.)

1. Turn on the Bluetooth function of your device. If you use an Android device, open the Bluetooth settings menu on your device. Enable the setting that makes your device visible to other Bluetooth devices.
2. Open the app that you would like to pair with and add your Mio FUSE as a heart rate sensor. The setup process varies by app, but the option to add a heart rate sensor is typically found in the Settings menu. Repeat the above pairing process for each app. After initial pairing is complete, your Mio FUSE will automatically be recognized each time you use the app.

Requirements For Android Apps

To pair with an Android app through Bluetooth Smart, all of the following requirements must be met:

• Your device is running an Android version 4.3 or higher.
• Your device has Bluetooth 4.0.
• Your app supports both of the above.

To find out whether your Android device meets the compatibility requirements, visit mioglobal.com/compatibility.

Requirements For Apple Devices

• iPhone 4S or newer.
• iPad 3 or newer.

Pairing With Sport Devices Such As Bike Computers

Instructions vary for each device. Follow your device manufacturer's instructions for receiving heart rate data from a chest strap; your device will register the Mio FUSE.

MAINTAINING YOUR MIO FUSE

Battery Care

Mio FUSE contains a rechargeable lithium polymer battery. Follow these instructions and guidelines to maintain the battery lifespan.

If you do not follow these guidelines, the battery life could be shortened and there is risk of damage to your Mio FUSE, risk of fire, risk of electrolyte leaks and chemical burns, and risk of injury.

Battery Care Guidelines

• Recharge the battery at least once every 6 months.
• Do not expose Mio FUSE to high temperatures.
• Use your Mio FUSE in the temperature range of 5°C to 45°C (41°F to 113°F).
• Store the Mio FUSE in the temperature range of -5°C to 55°C (23°F to 131°F).
• Do not disassemble, puncture, or incinerate the Mio FUSE device and strap.
• If the casing of the device breaks and the battery is exposed, keep the battery away from children. Contact your local recycling authority to properly dispose of the device & battery.

Battery Lifespan

• The battery lasts for approximately 300 charge cycles. If charged on a weekly basis, the battery should last for at least 5 years.
• The battery is non-replaceable. If the battery charge length is noticeably much shorter than before, your Mio product may have reached its end of life. Contact your local recycling authority to properly dispose of the device and battery.
• To maximize the lifetime of your battery, we recommend removing the device from the charger after obtaining a full charge and not leaving it charging overnight or for extended periods.

Cleaning Your Mio FUSE

• Wash Mio FUSE regularly with mild soap and water. As Mio FUSE is designed to be worn all day and overnight, regular cleaning is necessary to prevent skin irritation.
• Make sure you allow both your arm and Mio FUSE to dry completely before resuming wear.
• Avoid scratching the device to protect your Mio FUSE from damage.
• Do not expose the Mio FUSE to strong chemicals such as gasoline, cleaning solvents, acetone, alcohol, or insect repellents. Chemicals can damage the seal, case, and finish.
• After swimming, rinse Mio FUSE with tap water and gently dry with a soft cloth.
• If your skin becomes irritated, wear Mio FUSE on the other arm or discontinue wearing until the irritation clears.

Using Mio FUSE In Water

• Mio FUSE is water resistant up to 30 meters and can be worn while swimming.
•
  The Mio FUSE is water resistant only if the device remains intact.
• Touch function is suspended when the Mio FUSE is underwater or wet.
• The accuracy of the heart rate monitor may be reduced in cold water or if you are using large arm movements.
• Do not wear your Mio FUSE while diving.
• Wireless communication does not work under water.
• After swimming, rinse Mio FUSE with tap water and gently dry with a soft cloth.

Caring For Your Mio FUSE

•
  Do not attempt to disassemble or service your Mio FUSE. The sensor unit cannot be removed from the strap.
• Protect your Mio FUSE from impact shocks, extreme heat, and extended exposure to direct sunlight.

Mio FUSE Specifications

Maximum Readable Heart Rate: 220 BPM
Minimum Readable Heart Rate: 30 BPM
Operating Temperature: 5°C to 45°C (41°F to 113°F)
Case: PC
Caseback: PC+GF
Caseback Charging Pins: SUS 316
Strap: Silicone
Water Resistance: Up to 30m
Battery: 125mAh Lithium Polymer
Expected Battery Life: Up to 5 Years
Magnets: Neodymium – iron – boron (NdFeB)
Radio Frequency/Protocol: 2.4 GHz ANT+ and Bluetooth Smart wireless technology

WARRANTY & REGULATIONS

Warranty & Service
Be sure to visit our support pages to find online help, FAQs, videos, and manuals for your product: mioglobal.com/support.

Mio Global Limited Warranty Information
This product is warranted to the original purchaser to be free from defects of quality, materials or workmanship at the time of delivery for the Limited Warranty Period (see below). During the Limited Warranty Period, Physical Enterprises Inc. (Mio Global) will, at its sole discretion, remedy such defects free of charge either by a) repairing, or b) replacing, or c) refunding the original purchase price (excluding taxes, shipping, handling, duties, and similar amounts), subject to the terms and conditions of this Limited Warranty. Processing of all warranty claims will be handled by the distributor of the product for the geographic area where the original purchase was made. To obtain warranty service, contact the store/dealer where the product was purchased to make a warranty claim.

Warranty Period
The "Limited Warranty Period" starts on the date of purchase and lasts for one year, ending on the first anniversary of the date of purchase. Your store/dealer (or its importer or distributor) may have offered you a longer warranty period as part of the sale; Mio Global is not responsible for such longer warranty period so please contact your store/dealer for more information. The Limited Warranty Period will automatically expire without notice, and this Limited Warranty is not enforceable, if (as determined at the sole discretion of Mio Global).

Have any questions about your Mio FUSE?

We're ready to help! Your complete satisfaction is our goal, so your feedback is crucial. If you have any thoughts, questions, or concerns, just contact our knowledgeable support team at:
1.877.770.1116
facebook.com/mioglobal
support@mioglobal.com
twitter.com/mioglobal
mioglobal.com/support
instagram.com/mioglobal
mioglobal.com
