BLX Wireless System
audio
ready
BLX88
©2013 Shure Incorporated
27A16033 (Rev. 3)
®
ready
audio
BLX4
channel
group
(A-Y)
(0-9)
group
channel
(A-Y)
(0-9)
*27A16033*
power
group
channel
(0-9)
(A-Y)
ready
audio
-10 dB
power
group
channel
(0-9)
(A-Y)

Advertisement

Table of Contents
loading

Related Manuals for Shure BLX

Summary of Contents for Shure BLX

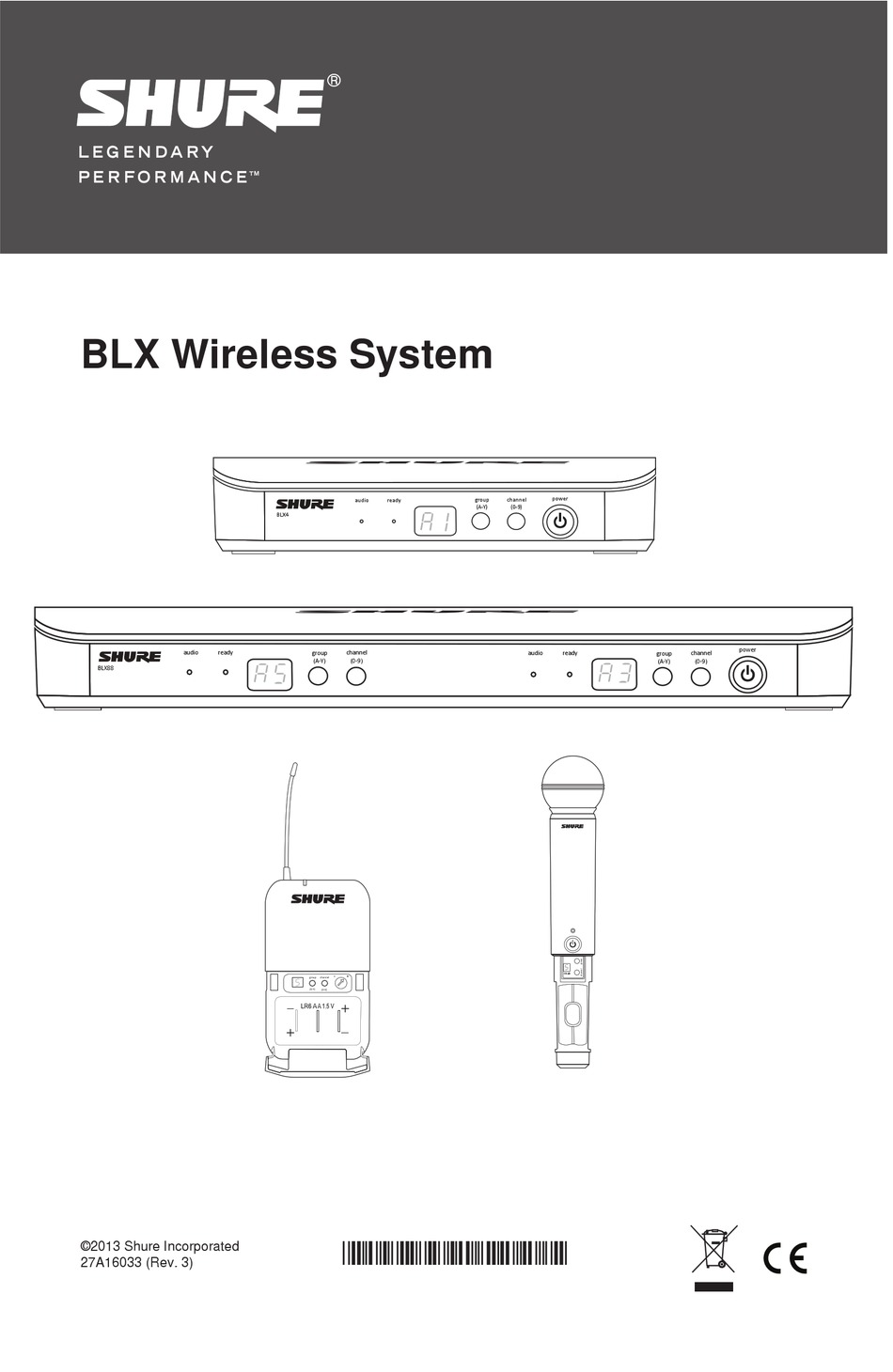

  • Page 1 ® BLX Wireless System power ready group channel audio (0-9) (A-Y) BLX4 power audio ready channel ready group audio group channel (A-Y) (0-9) (0-9) (A-Y) BLX88 -10 dB group channel (A-Y) (0-9) ©2013 Shure Incorporated *27A16033* 27A16033 (Rev. 3)

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 14. REFER all servicing to qualified service personnel. Servicing is required when the ap- paratus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been READ these instructions.
  • Page 3 (0-9) (A-Y) (A-Y) (0-9) BLX88 Consulter le guide des canaux BLX pour sélectionner des jeux de canaux compatibles. Cuidado Para operação correta, ajuste cada lado do Receptor duplo BLX88 em um canal diferente. power audio ready group channel...
  • Page 4 Connect receiver to power source. Collegate il ricevitore alla 受信機を電源に接続します。 presa di alimentazione. Brancher le récepteur à une source 수신기를 전원에 연결합니다. d'alimentation. Conecte o receptor à fonte de alimentação. 将接收机连接到电源。 Den Empfänger an die Подключите приемник к Stromversorgung anschließen. Sambungkan receiver ke sum- источнику...
  • Page 5 Installate le pile ed ac- 건전지를 설치한 다음 송 Install batteries and turn on transmitter. cendete il trasmettitore. 신기를 켜십시오. Installer les piles et Instale as pilhas e ligue 安装电池并打开发射机 allumer l’émetteur. o transmissor. 电源。 Вставьте батарейки и Pasang baterai dan Die Batterien/Akkus включите...
  • Page 6 If setting up additional systems, leave the first transmitter and receiver on. For each additional receiver, manually set the group to match the first receiver. Note: The receiver will automatically perform a channel scan to find an available frequency after the group has been selected. Set the transmitter frequency to match the receiver.
  • Page 7 English Features Front Panel BLX4 channel power audio ready group (0-9) (A-Y) BLX4 ① ② ③ ④ ⑤ BLX88 power audio ready channel ready group audio group channel (A-Y) (0-9) (0-9) (A-Y) BLX88 ① ② ③ ④ ① ② ③ ④...
  • Page 8 English Back Panel BLX4 ④ ① ② ③ BLX88 ④ ③ ④ ② ① ③ ③ XLR microphone output jack (MIC out) ① DC Power Jack ② Adapter Cord Tie-Off ④ 6.35 mm (1/4") instrument level output jack (instrument out) BLX1 ① LED Indicator Displays power and battery status (see BLX1 ④ Transmitter LED Indicators). ②...

  • Page 9: Single System Set Up

    English Transmitter LED Indicators LED Indicator Status Green Ready Rapidly Flashing Red Controls locked Solid Red Battery power low (less than 1 hour remaining*) Flashing Red and shuts off Batteries dead (change batteries to power on transmitter) *For alkaline batteries only. For rechargeable batteries, solid red means the batteries are dead. Single System Set Up Before you begin, turn off all transmitters and turn on any equipment (other microphones or personal monitoring systems) that could cause interference during the performance.

  • Page 10: Multiple System Setup

    English Multiple System Setup Up to 12 systems can operate simultaneously (band and RF environment dependent). Important: Set up each system one-at-a-time. Once a receiver and transmitter are tuned to the same group and channel, leave the transmitter powered on. Otherwise, scans from the other receivers will not detect that channel as occupied. For the BLX88, be sure to setup both transmitters before progressing to the next receiver.

  • Page 11: Tips To Improve Wireless System Performance

    English Tips to Improve Wireless System Performance If you encounter interference or dropouts, try the following suggestions: • Choose a different receiver channel • Reposition the receiver so there is nothing obstructing a line of sight to the transmitter (including the audience) •...

  • Page 12: Wearing The Bodypack Transmitter

    To remove batteries from the handheld transmitter, push them out through the opening in the microphone battery compartment. WARNING: Danger of explosion if battery incorrectly replaced. Operate only with Shure compatible batteries. WARNING: Battery packs shall not be exposed to excessive heat such as sunshine, fire, or the like.

  • Page 13: Troubleshooting

    English Troubleshooting Issue Indicator Status Solution Receiver ready LED on No sound or faint sound • Verify all sound system connections or adjust gain as needed (see Adjusting Gain) • Verify that the receiver is connected to mixer/ amplifier Receiver ready LED off •...
  • Page 14 English BLX2 Audio Input Level Working Range 91 m (300 ft) Line of Sight gain -20 dBV maximum Note: Actual range depends on RF signal absorption, reflection and -10dB -10 dBV maximum interference. Gain Adjustment Range Audio Frequency Response 10 dB 50 to 15,000 Hz Note: Dependent on microphone type RF Transmitter Output Total Harmonic Distortion 10 mW, typical...
  • Page 15 The CE Declaration of Conformity can be obtained from: sification and application, and on the selected frequency. www.shure.com/europe/compliance Shure strongly urges the user to contact the appropriate Authorized European representative: telecommunications authority concerning proper licensing, Shure Europe GmbH and before choosing and ordering frequencies.
  • Page 16 10 mW, as measured in accordance with ETSI standard EN 300 422. Signed __________________________________ Date: May 16, 2012 Name, Title: Alex Chung, Sr. Manager, Global Compliance, Shure Incorporated PERU DECLARATION OF CONFORMITY Shure Incorporated 5800 W. Touhy Avenue Niles, Illinois 60714-4608, U.S.A.
  • Page 17 United States, Canada, Latin Europe, Middle East, Africa: Asia, Pacific: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
