Kidde i9070CA User Manual

With front loading battery door
Hide thumbs
Table of Contents

Advertisement

Quick Links

Smoke Alarm

User's Guide
ATTENTION: Please take a few minutes to thoroughly read this
user's guide, which should be saved for future reference and
passed on to any subsequent owner.
Manual P/N 820-1497 Rev. A 04/08
i9070CA
9 V Battery Operated
SINGLE STATION
SMOKE ALARM
i9070CA

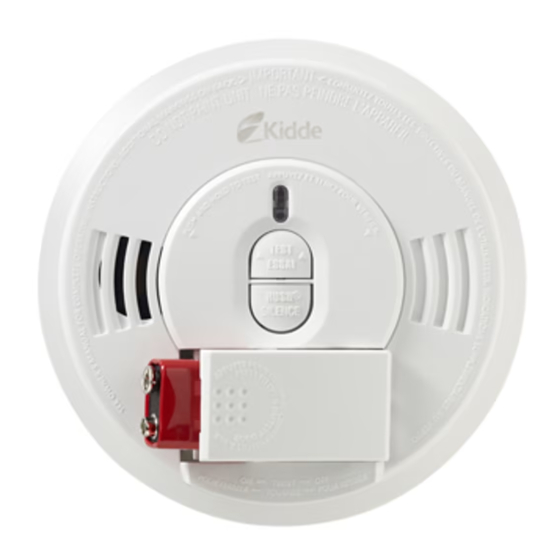

with Front loading
battery door

Advertisement

Table of Contents
loading

Related Manuals for Kidde i9070CA

Summary of Contents for Kidde i9070CA

  • Page 1: Smoke Alarm

    SINGLE STATION SMOKE ALARM Smoke Alarm User’s Guide i9070CA i9070CA with Front loading battery door 9 V Battery Operated ATTENTION: Please take a few minutes to thoroughly read this user’s guide, which should be saved for future reference and passed on to any subsequent owner.

  • Page 2: Table Of Contents

    Warranty ....... 2 1 Kidde Canada Inc. P.O. Box 40, Apsley, ON K0L 1A0 www.kiddecanada.com...

  • Page 3: Installation

    Installation This product is designed to detect products of combustion using the ionization technique. It contains 0.9 microcurie of Americium 241, a radioactive material. Distributed under U.S. NRC License No. 32-23858-01E. Manufactured in compliance with U.S. NRC safety criteria in 10 CFR 32.27. The purchaser is exempt from any regulatory requirements.
  • Page 4 Installation Recommended Locations • Locate the first alarm in the immediate area of the sleeping rooms. Try to monitor the exit path, as the sleeping rooms are usually farthest from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area (Image 1A). •...
  • Page 5 Installation DINING KITCHEN BEDROOM BEDROOM ROOM BEDROOM HALL BEDROOM LIVING ROOM BEDROOM LIVING KITCHEN ROOM Smoke Alarms for Minimum Protection Smoke Alarms for Additional Protection Ionization Type Smoke Alarm with BASEMENT Hush Control or Photoelectric Type ® SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN IMAGE 1A IMAGE 1B...
  • Page 6 Installation • Install Smoke Alarms on tray-shaped ceilings (coffered ceilings) on the highest portion of the ceiling or on the sloped portion of the ceiling within 12” (305mm) vertically down from the highest point (Image 2D). Locations to Avoid • Do not install within 0.9 m (3') of the following: The door to a kitchen, or a bathroom that contains a tub or shower, forced air supply ducts used for heating or cooling, ceiling or whole house ventilating fans, or other high air-flow areas.
  • Page 7 Installation 10 cm (4”) MINIMUM CEILING IMAGE 2A NEVER HERE BEST PLACEMENT ACCEPTABLE PLACEMENT SIDE WALL NOT IN IMAGE 2B THIS AREA 10 cm (4”) ANYWHERE IN THIS AREA 0.9 m (3’) 0.9 m (3’) HORIZONTAL DISTANCE FROM PEAK IMAGE 2C NOT IN THIS AREA ANYWHERE IN THIS...
  • Page 8 Installation ANYWHERE IN THIS AREA IMAGE 2D 30 cm (12") Mobile Homes Modern mobile homes have been designed and built to be energy efficient. Install smoke alarms as recommended in Recommended Locations and Image 2A. In mobile homes that are not well insulated compared to present standards, extreme heat or cold can be transferred from the outside to the inside through poorly insulated walls and roof.
  • Page 9 Installation • After selecting the proper smoke alarm location as described previously, hold the mounting plate against the selected installation location (wall or ceiling) and mark the center of the holes with a pencil. To ensure aesthetic alignment of the alarm with the hall-way, or wall, the “A”...

  • Page 10: Operation

    Installation • Install the alarm on the mounting plate and rotate the alarm in the direction of the “ON” arrow on the cover until the alarm ratchets into place (Image 3D). This ratcheting function allows for aesthetic alignment. Note: The alarm will attach to the mounting plate in 4 positions (every 90 degrees).
  • Page 11 Operation Hush ® Control Feature Smoke alarms are designed to minimize nuisance alarms. Cigarette smoke will not normally set off the alarm, unless the smoke is blown directly into the alarm. Combustion particles from cooking may set off the alarm if the alarm is located close to the cooking area.
  • Page 12 Operation LED Indicators This alarm is equipped with a red LED indicator, with two modes of operation. Red LED - Flashing every 30-40 seconds: Indicates that the smoke alarm is operating properly. Red LED - Flashing: When the smoke alarm senses particles of combustion and goes into alarm (constant pulsating sound), the red LED will flash once per second.
  • Page 13 Operation Battery Tamper Resist Feature This alarm has a battery tamper resist feature, which prevents the battery door from being opened. This feature is effective in preventing the removal of the battery from this device (which will render the unit inoperable). To activate the battery tamper resist feature, remove the unit from the mounting plate and locate the small cut-out in the middle of the product label on the back of the unit.

  • Page 14: Maintenance

    Maintenance Testing CAUTION: Due to the loudness (85 decibels) of the alarm, always stand an arms length away from the unit when testing. Test by pushing the Test button on the cover and hold it down for a minimum of 5 seconds. This will sound the alarm if all the electronic circuitry, horn and battery are working.
  • Page 15 Maintenance Battery Removal NOTE: If battery tamper resist feature has been activated it will need to be deactivated in order to change the battery. Refer to the Battery Tamper Resist Feature section for instructions. To replace or install the battery press down on the battery door and then release to allow the door to pop open.
  • Page 16 Maintenance This smoke alarm uses a 9 V carbon zinc battery (alkaline and lithium batteries may also be used). A fresh battery should last for one year under normal operating conditions. Use only the following 9 volt batteries for replacement: Carbon-Zinc Type Eveready 216 or 1222 Gold Peak 1604P or 1604S...
  • Page 17 This action will void your warranty. Replacing the Alarm The National Fire Protection Association (NFPA) and Kidde recommend replacing this alarm ten years from the date code label (located on the back of the alarm).

  • Page 18: Fire Safety

    Fire Safety WARNING: Please read carefully and thoroughly. • NFPA 72 states: Fire-warning equipment for residential occupancies are capable of protecting about half of the occupants in potentially fatal fires. Victims are often intimate with the fire, too old or too young, or physically or mentally impaired such that they cannot escape even when warned early enough that escape should be possible.
  • Page 19 Fire Safety Good Safety Habits Develop and practice a plan of escape! • Install and maintain Fire extinguishers on every level of the home and in the kitchen, basement and garage. Know how to use a fire extinguisher prior to an emergency. •...
  • Page 20 Fire Safety Alarm Exit Procedure • Alert small children in the home. • Leave immediately by your escape plan. Every second counts, so don’t waste time getting dressed or picking up valuables. • In leaving, don’t open any inside door without first feeling its surface.

  • Page 21: Fire Safety

    Fire Safety Additional Recommendations The National Fire Protection Association’s Standard 72 provides the following information: Smoke Detection. Where required by applicable laws, codes, or standards for a specific type of occupancy, approved single- and multiple-station smoke alarms shall be installed as follows: (1) In all sleeping rooms and guest rooms (2) Outside of each separate dwelling unit sleeping area, within 6.4 m (21 ft) of any door to a sleeping room, the distance...

  • Page 22: Warranty

    Kidde or any of its parent or subsidiary corporations be liable for consequential loss or damages...
