UsINg THE WEb-basEd adVaNCEd UsER INTERfaCE
sections
table of contents

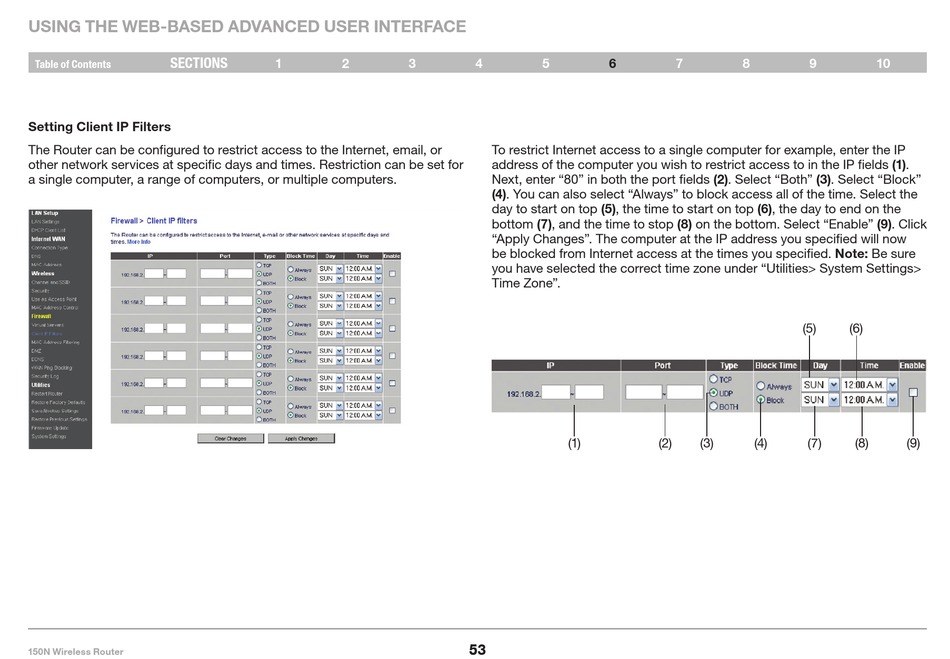

setting Client IP filters
The Router can be configured to restrict access to the Internet, email, or
other network services at specific days and times� Restriction can be set for
a single computer, a range of computers, or multiple computers�
150N Wireless Router
1 2 3 4 5 6
To restrict Internet access to a single computer for example, enter the IP
address of the computer you wish to restrict access to in the IP fields (1)�
Next, enter "80" in both the port fields (2)� Select "Both" (3)� Select "Block"
(4)� You can also select "Always" to block access all of the time� Select the
day to start on top (5), the time to start on top (6), the day to end on the
bottom (7), and the time to stop (8) on the bottom� Select "Enable" (9)� Click
"Apply Changes"� The computer at the IP address you specified will now
be blocked from Internet access at the times you specified� Note: Be sure
you have selected the correct time zone under "Utilities> System Settings>
Time Zone"�
(1)
53
7 8 9
(5)
(2) (3) (4) (7)
10
(6)
(8) (9)
