Targus USB calculator/keypad User Manual

Usb calculator/keypad
Hide thumbs

Advertisement

Table of Contents

Targus USB
Calculator/Keypad
Making Your Mobile Life Easier.
USER'S GUIDE
Visit our Web site at: www.targus.com
Making Your Mobile Life Easier.
Features and specifications are subject to change without notice. © 2002 Targus Corp.
400-0076-001B
B
H
B
T
M
A
S
L
P
N
Y
L
A
T
H
K
S
RUSSELS
ANNOVER
ARCELONA
OKYO
ILANO
MSTERDAM
INGAPORE
ONDON
ARIS
EW
ORK
OS
NGELES
ORONTO
ONG
ONG
YDNEY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB calculator/keypad and is the answer not in the manual?

Questions and answers

Related Manuals for Targus USB calculator/keypad

Summary of Contents for Targus USB calculator/keypad

  • Page 1 Targus USB Calculator/Keypad Making Your Mobile Life Easier. USER’S GUIDE Visit our Web site at: www.targus.com Making Your Mobile Life Easier. Features and specifications are subject to change without notice. © 2002 Targus Corp. 400-0076-001B RUSSELS ANNOVER ARCELONA OKYO ILANO...

  • Page 2: System Requirements

    (calculator mode only) • Enter numbers and control cursor movement as you would from a standard keypad In addition to this user’s guide, this package contains the Targus USB Calculator/Keypad. System Requirements To use the keypad, your computer must meet the following hardware requirements and run one of the operating systems listed below.
  • Page 3 USB connector recess Wheel grip USB Calculator/Keypad - back view 3 Extend the cable to the desired length. 4 Plug the standard USB end of the cable ( ) into an available USB port on your computer. You are now ready to turn on your computer and install the keypad...
  • Page 4 Retracting the Cable To store or transport the keypad or to use it as a calculator independent of your computer, you can stow the cable and USB connector in the back of the unit. To do this: 1 Unplug the USB connector from your computer’s USB port (if connected).

  • Page 5: Windows ® 2000/Xp Operating Systems

    50 seconds of non-operation. There is no “off” key. Switching Between Calculator and Keypad Mode This Targus accessory operates as a calculator or as a keypad. When the device is in calculator mode, the LED indicator light, located next to the NRC key, does not glow. When the device is in keypad mode, the LED glows green.

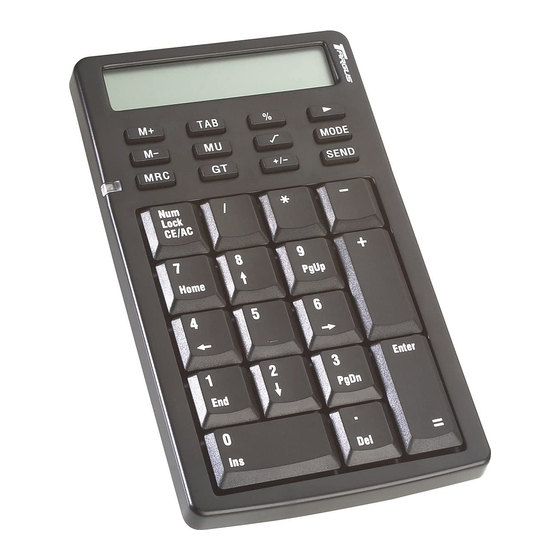

  • Page 6 → Enter ↓ PgDn USB Calculator/Keypad - front view Sending Calculation Results from the Calculator to Your Computer When the device is in calculator mode, you can send calculation results to the cursor location in the active program on your computer.
  • Page 7 3 Press the SEND key. The negative result now appears in the active program on your computer. USB Calculator/Keypad Keys Function Keys The following tables list the keypad’s keys and their functions. Function Adds the displayed number into memory. Subtracts the displayed number from memory.
  • Page 8 Function Switches the displayed value between positive (+) and negative (-). Calculator mode – deletes the far right digit by shifting the display value to the right. Keypad mode – back space. MODE Switches between calculator and keypad modes. SEND Sends calculation results to your computer.
  • Page 9 • NumLock on – inserts a decimal point. NumLock off – deletes a number. USB Calculator/Keypad Display Screen The keypad’s screen shows letters, numbers and other symbols that display calculation results or the status or current function of the keypad. The following tables list the keypad’s display messages and what they mean.

  • Page 10: Replacing The Battery

    Display Screen - Decimal Place Selector Message Description 0, 2, 4 Number of decimal places for the 5/4 setting of the Rounding Selector. The “Add Mode” automatically adds a decimal point and two decimal places to all values, even if you don’t input a decimal point.

  • Page 11: Things To Remember

    Battery cover RESET USB Calculator/Keypad - back view 2 Remove the old battery, insert a new one and close the battery cover using the same round object. Things to Remember • Avoid using or storing the keypad in extreme temperatures. The environmental specifications while operating are 32°...

  • Page 12: Specifications

    • Never use pointed objects, such as a pen or pencil tip, to press the keys on the keypad. • To clean the keypad, use a soft cloth dampened with a dilute solution of a mild detergent and water. • Never expose the keypad to a direct flame, sunlight or other heat source.

  • Page 13: Technical Support

    Weight 6.35 ounces (180g) Technical Support In the unlikely event that you encounter a problem with your Targus accessory, please contact our technical support team at: Email: techsupport@targus.com Internet: http://www.targus.com/support.asp Our knowledgeable staff is also available to answer your questions through one of the following telephone numbers.

  • Page 14: Product Registration

    This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to a computer; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility.

  • Page 15: Regulatory Compliance

    Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Statement Tested to Comply This equipment has been tested and found to comply with the limits of a...
