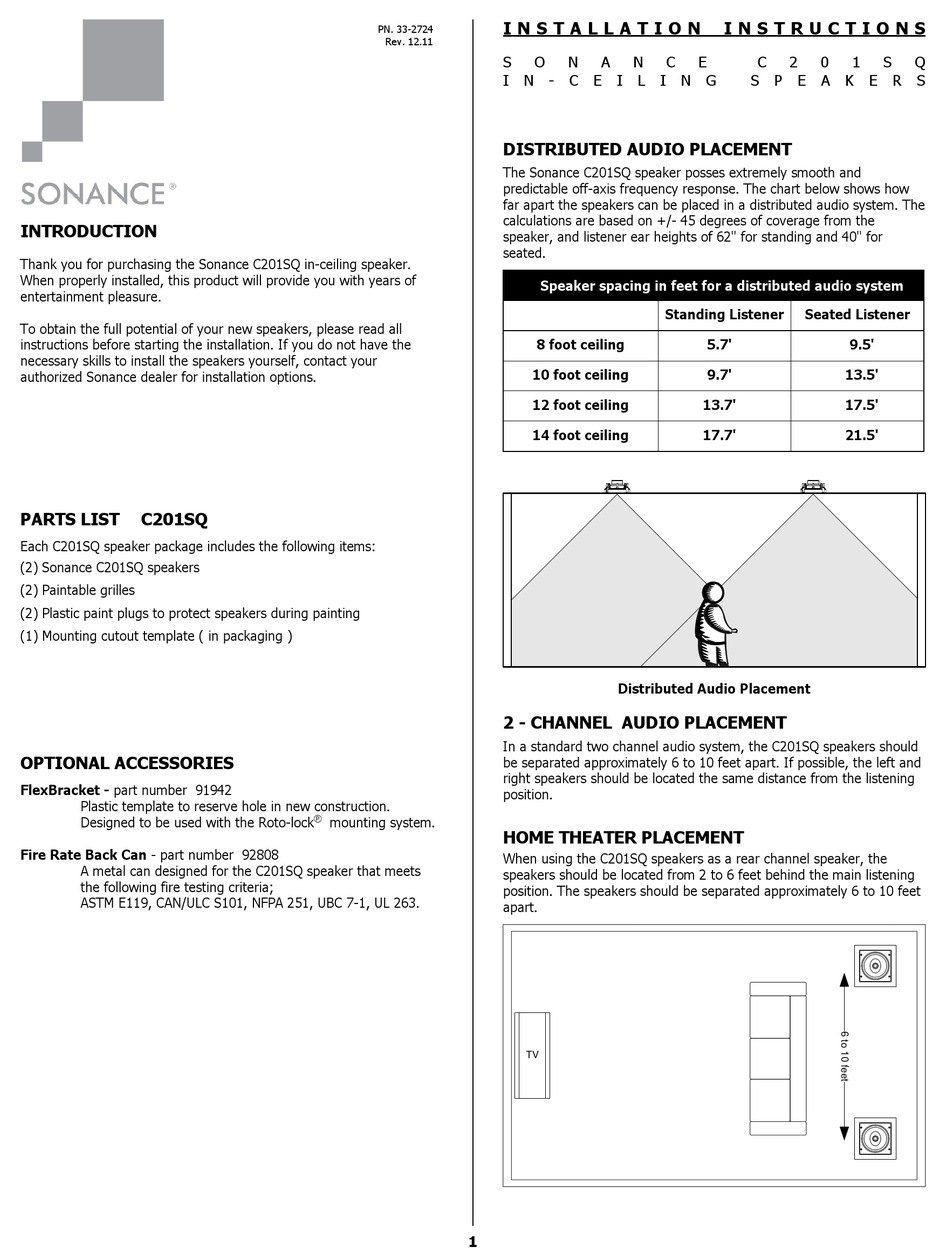

Sonance C201SQ Installation Instructions

INTRODUCTION

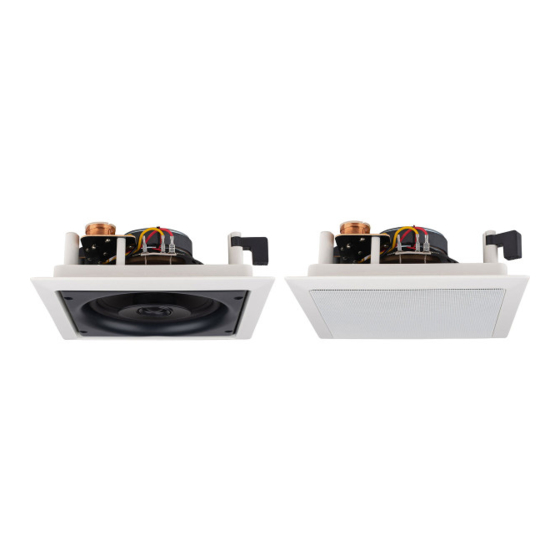

Thank you for purchasing the Sonance C201SQ in-ceiling speaker.
When properly installed, this product will provide you with years of
entertainment pleasure.
To obtain the full potential of your new speakers, please read all
instructions before starting the installation. If you do not have the
necessary skills to install the speakers yourself, contact your
authorized Sonance dealer for installation options.

PARTS LIST

C201SQ
Each C201SQ speaker package includes the following items:
(2) Sonance C201SQ speakers
(2) Paintable grilles
(2) Plastic paint plugs to protect speakers during painting
(1) Mounting cutout template ( in packaging )

OPTIONAL ACCESSORIES

FlexBracket - part number 91942
Plastic template to reserve hole in new construction.
Designed to be used with the Roto-lock
Fire Rate Back Can - part number 92808
A metal can designed for the C201SQ speaker that meets
the following fire testing criteria;
ASTM E119, CAN/ULC S101, NFPA 251, UBC 7-1, UL 263.
PN. 33-2724
Rev. 12.11
®
mounting system.
1
I N S T A L L A T I O N
S O N A N C
I N - C E I L I N G

DISTRIBUTED AUDIO PLACEMENT

The Sonance C201SQ speaker posses extremely smooth and
predictable off-axis frequency response. The chart below shows how
far apart the speakers can be placed in a distributed audio system. The
calculations are based on +/- 45 degrees of coverage from the
speaker, and listener ear heights of 62" for standing and 40" for
seated.
Speaker spacing in feet for a distributed audio system
Standing Listener
8 foot ceiling
10 foot ceiling
12 foot ceiling
14 foot ceiling
Distributed Audio Placement

2 - CHANNEL AUDIO PLACEMENT

In a standard two channel audio system, the C201SQ speakers should
be separated approximately 6 to 10 feet apart. If possible, the left and
right speakers should be located the same distance from the listening
position.

HOME THEATER PLACEMENT

When using the C201SQ speakers as a rear channel speaker, the
speakers should be located from 2 to 6 feet behind the main listening
position. The speakers should be separated approximately 6 to 10 feet
apart.
TV
I N S T R U C T I O N S
E C 2 0 1
S P E A K E R S
Seated Listener
5.7' 9.5'
9.7' 13.5'
13.7' 17.5'
17.7' 21.5'
S Q
