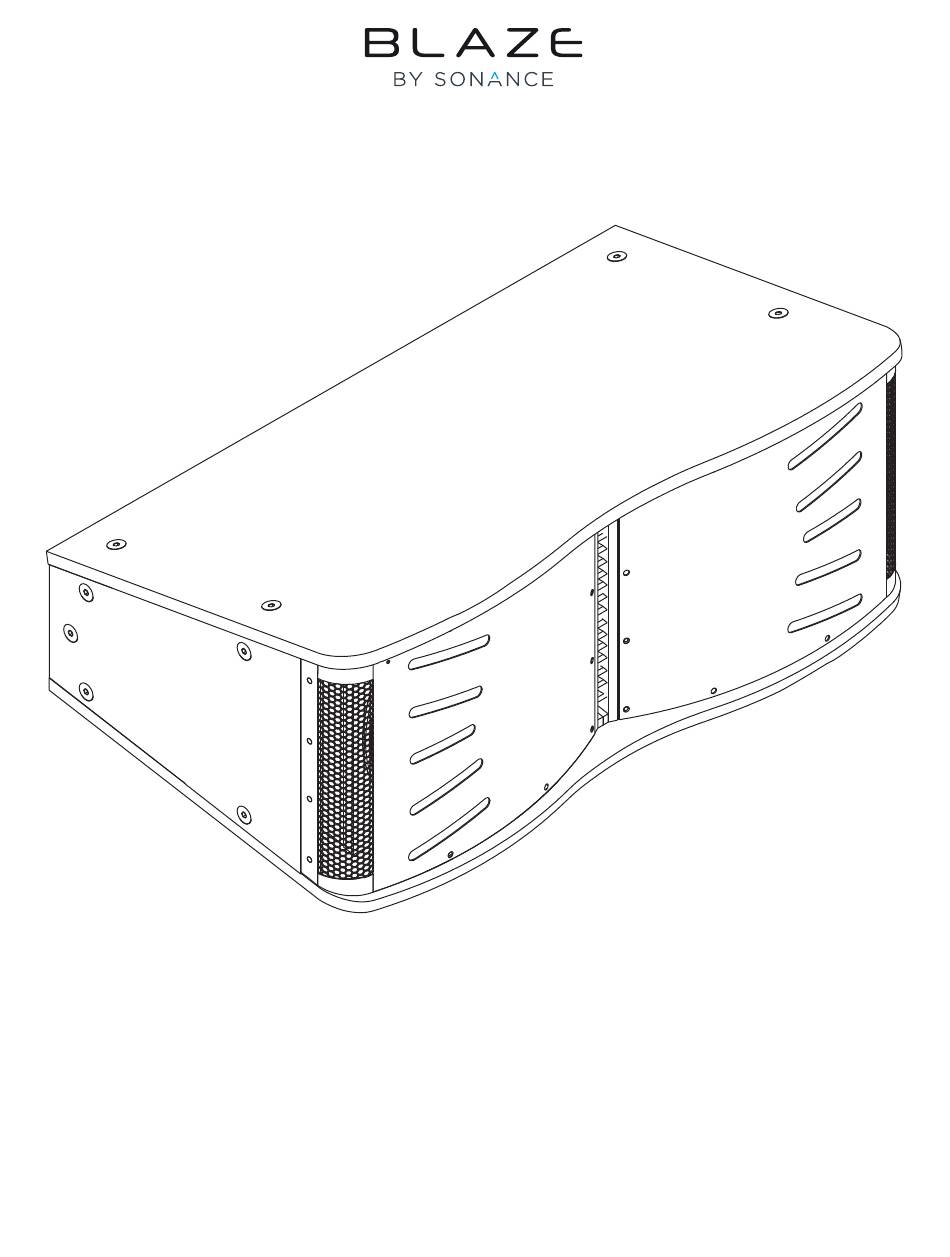

- Page 1 INSTALLATION MANUAL CCA10i-BA Loudspeakers...
-
Page 2: Introduction And Overview
1. Introduction and Overview 1.1 Introduction Thank you for purchasing a Blaze Audio CCA10i-BA loudspeaker. The CCA10i-BA is a constant curvature, arrayable point source loudspeaker, designed for medium-sized venues to large distributed systems that require a flexible and scalable loudspeaker solution. Mounted horizontally with tight acoustic centres to minimize comb filtering, each CCA10i-BA enclosure provides fixed 20°... - Page 3 2. Applications and Deployment 2.1 Applications The CCA10i-BA can be configured as an individual point-source loudspeaker or in a vertical array with multiple CCA10i-BA loudspeakers. Integrated rigging enables easy and secure box-to-box deployment. Flying CCA10i-BA loudspeakers, requires the CCA10i-BA Rigging Grid. This separately sold item enables the suspension up to four (4) CCA10i-BA loudspeakers.
-
Page 4: Important Safety Instructions
2. Applications and Deployment 2.2 Important Safety Instructions WARNING: Failure to observe the following safety precautions may result in severe injury or death. Installations such as described in this guide should only be attempted by a trained professional. • Read these instructions. •... -
Page 5: Rigging Instructions
2. Applications and Deployment 2.3 Rigging Instructions CCA10i-BA loudspeakers feature integrated rigging hardware. Use of the rigging hardware is similar whether multiple CCA10i-BA loudspeakers are to be joined, or are to be attached to a CCA10i-BA Rigging Grid. 2.3.1 Connecting One CCA10i-BA to Another Step 1. - Page 6 2. Applications and Deployment 2.3 Rigging Instructions CCA10i-BA loudspeakers feature integrated rigging hardware. Use of the rigging hardware is similar whether multiple CCA10i-BA loudspeakers are to be joined, or are to be attached to a CCA10i-BA Rigging Grid. 2.3.2 Connecting a CCA10i-BA to a Rigging Grid Step 1.
- Page 7 2. Applications and Deployment 2.3 Rigging Instructions CCA10i-BA loudspeakers feature integrated rigging hardware. Use of the rigging hardware is similar whether multiple CCA10i-BA loudspeakers are to be joined, or are to be attached to a CCA10i-BA Rigging Grid. 2.3.3 Attaching the Rigging Grid Extension Arm The Rigging Grid Extension Arm can be used when it is required to alter the vertical angle of suspended CCA10i-BA loudspeakers.
- Page 8 2. Applications and Deployment 2.4 Suspending CCA10i-BA Loudspeaker Arrays WARNING: Consult a professional mechanical or structural engineer, licensed in the jurisdiction of the sound system installation, to review, verify, and approve all attachments to the building or structure. Employ the services of a certified, professional rigger for hoisting, positioning and rigging the equipment to the supporting structure.
- Page 9 3. Connection and Amplification 3.1 CCA10i-BA Input Connections The CCA10i-BA is fitted with two Neutrik NL4 Speakon sockets on its rear panel. One socket is for input and the second is for pass-trough. The “Input” is used for connection directly to the Blaze PowerZone Connect 3004 Amplifier and the “Link”...
- Page 10 3. Connection and Amplification 3.1.3 CCA10i-BA Amplifier Connections CCA10i-BA loudspeakers are intended to be paired with the Blaze PowerZone Connect 3004 amplifier. The PowerZone Connect 3004 incorporates the DSP equalisation facilities required to optimise the loudspeaker’s acoustic performance. The PowerZone Connect 3004 is a four channel power amplifier able to drive two CCA10i-BA loudspeakers.
- Page 11 3. Connection and Amplification 3.2 PowerZone Connect Amplifier Equalization Profiles The Blaze PowerZone Connect 3004 amplifier incorporates DSP based loudspeaker equalization, accessed via a web page interface, that enables preconfigured filter and equalization presets to be applied to its speaker outputs. A preset for CCA10i-BA loudspeakers is available for download from the Blaze website and must be used for correct speaker performance.
- Page 12 3. Connection and Amplification Step 7. With the appropriate speaker preset file (CCA10_Bass_ PreSet_Locked_V1.2.zcp ) applied to amplifier Output 1, repeat Step 2 to Step 6 for the three remaining amplifier outputs. The appropriate speaker preset files for each output are: Output 2: CCA10_High_PreSet_Locked_V1.2.zcp Output 3: CCA10_Bass_PreSet_Locked_V1.2.zcp Output 4: CCA10_High_s_Locked_V1.2.zcp...
-
Page 13: Technical Information
4. Technical Information 4.1 CCA10i-BA Speci cations 4.1.1 System Performance Frequency Response (-3dB) * 52Hz - 18kHz Frequency Response (-10dB) * 45Hz - 18kHz Recommended High-Pass 48 Hz - w/ minimum 24 dB / Butterworth Filter Horizontal Nominal Dispersion (-6dB) 160°... - Page 14 Due to continuous product improvement, all features and specifications are subject to change without notice. For the latest Sonance product specification information visit our website at www.sonance.com. SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • Phone: (949) 492-7777 • Technical Support: (949) 492-7777 • www.sonance.com • 07.01.25...
