Sonance C101 Installation Instructions

INTRODUCTION
Thank you for purchasing Sonance C series in-wall speakers. When
properly installed, this product will provide you with years of
entertainment pleasure.
To obtain the full potential of your new speakers, please read all
instructions before starting the installation. If you do not have the
necessary skills to install the speakers yourself, contact your
authorized Sonance dealer for installation options.

PARTS LIST

Each C series speaker includes the following items:
(2) Sonance C speakers
(2) Paintable grilles
(2) Plastic paint plugs to protect speakers during painting
(1) Mounting cutout template ( in packaging )

OPTIONAL ACCESSORIES

New Construction Bracket - part number 90-0700
Plastic template to reserve hole in new construction.
FlexBracket - part number 90-1193
Plastic template to reserve hole in new construction.
Designed to be used with the Flexbar mounting system.
Staple Template - part number 90-0651
Thin plastic template for new construction to reserve hole in
new construction. Designed to be used with the Flexbar mounting
system.
Coverplate - part number 90-0693
Designed to cover hole made by FlexBracket, New
Contruction Bracket or Staple Template until the speaker is installed.
Acoustic Enclosure - part number 91687
A 3/4" medium density fiberboard enclosure designed
specifically for the C and Symphony series speakers.
Fire-Rated Back Can - part number 91709
A metal can designed for the C and Symphony series
speakers that meets the following fire testing criteria;
ASTM E119, CAN/ULC S101, NFPA 251, UBC 7-1, UL 263.
I N S T A L L A T I O N
S O N
I N -

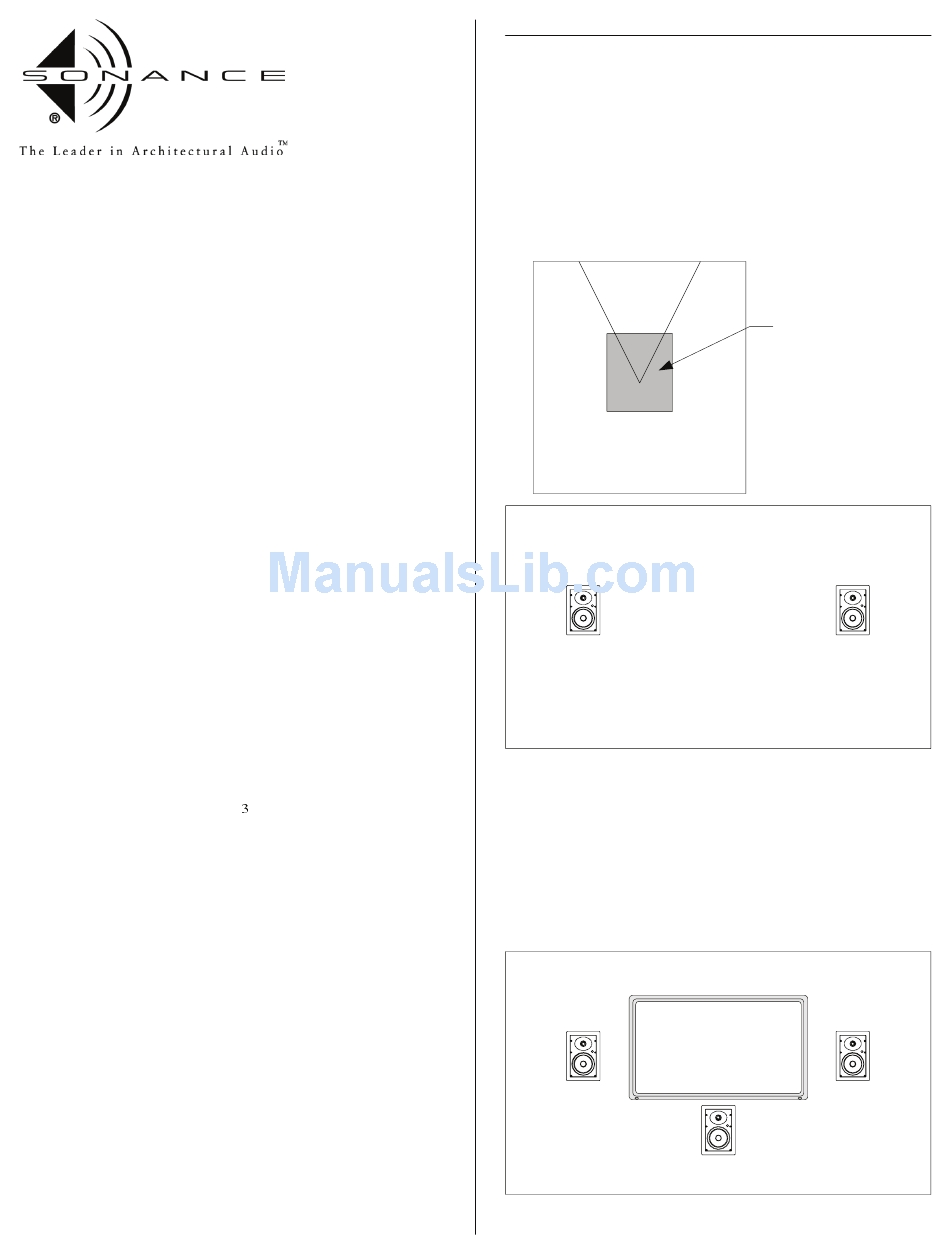

2 - CHANNEL AUDIO PLACEMENT
For best performance, the center of the Sonance C series speakers
PN. 33-2277
should be placed around ear level. This would be approximately 40"
for a seated listener and 62" for a standing listener.
The distance from the listener to the speakers and the distance
between the speakers should be the same, see diagram. Distance A, B
and C should be the same.
HOME THEATER PLACEMENT
Locate the left and right speakers at the same level as the screen.
Depending on the height of the television, the center channel can go
above or below. Try to keep the center channel as close the the height
of the left and right speakers as possible.
Note: The C series speakers are not video shielded. Do not
locate the speakers closer than 20" to your television or
damage to your picture tube may occur.
1
I N S T R U C T I O N S
A N C E C
W A L L S P
A
B C
S E R I E S
E A K E R S
Ideal Listening Zone
