Overview
The most dense, most power packed UPS available - offering HP customers more watts per U than any other UPS - allowing for more
valuable rack space to be utilized by all your server, storage and networking equipment.
The leading edge HP UPS R5500 Uninterruptible Power System features a slim 3U rack-mount design, offering up to 4500 Watts of
true power (5400 watts international). This new rack-space saving design allows more support for critical rack mountable
equipment. This product brings unprecedented power density and innovative features to the proven HP family of rack-mountable UPS
products.
The UPS R5500 is a high power density solution, designed for customers who want to provide power protection in space-constrained
rack enterprise environments. In addition, this new UPS R5500 has the capability to be connected to an optional Extended Runtime
Module (ERM). Customers can further increase the run-time on their UPS R5500 by using this ERM. The HP UPS "" models denote
"Extended Runtime Capable" UPS models.

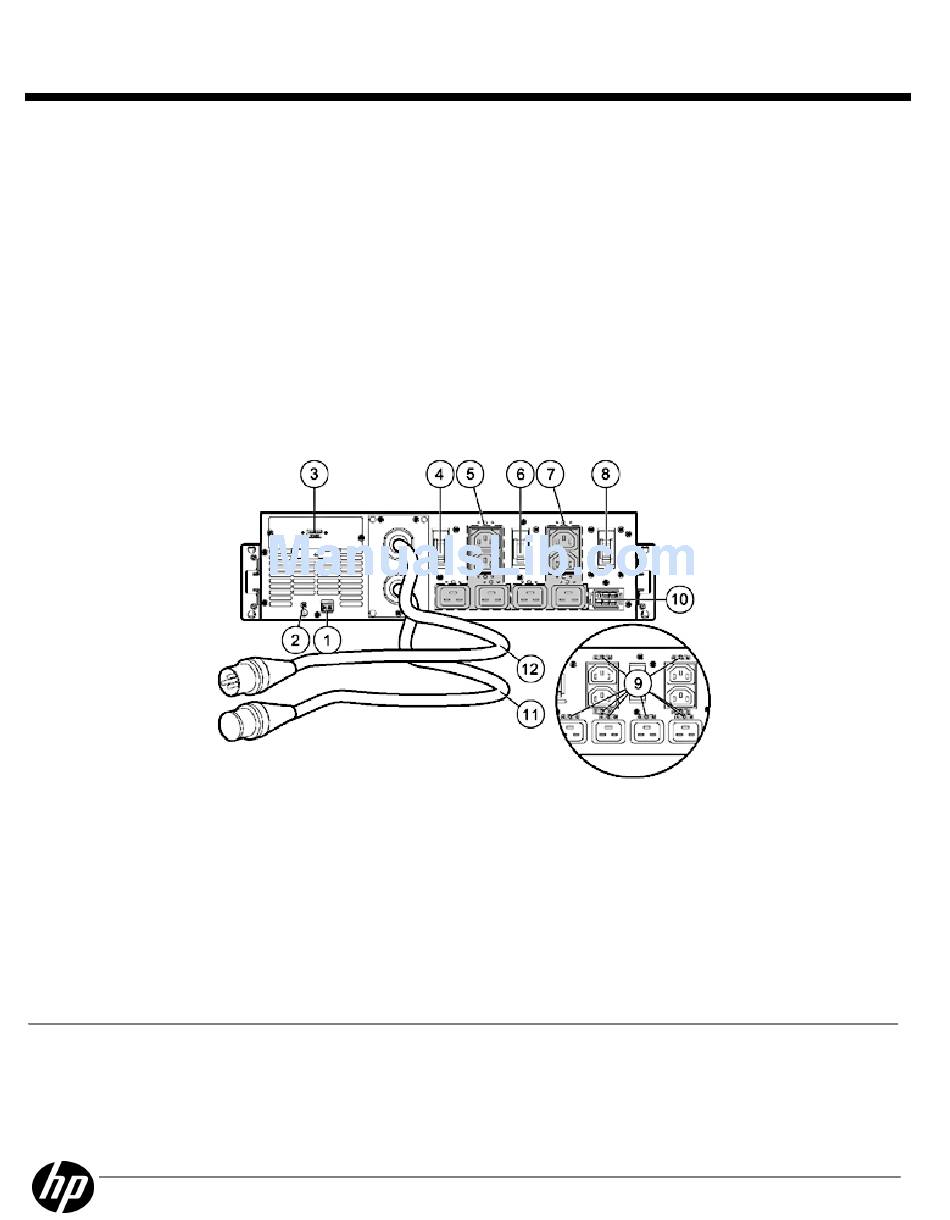

1. REPO port
2. Ground bonding screw
3. Communications port/option slot
4. Load segment 1 circuit breaker
5. Load segment 1 (two IEC-320-C19 receptacles and two IEC-
320-C13 receptacles)
6. Load segment 2 circuit breaker
Models
Models
Models
Models
NOTE: #0D1 will appear after the part number on the sales order if HP factory integration is indicated.
NOTE:
NOTE:
NOTE:
HP R5500 6000VA INTL 3U Rackmount Uninterruptible Power System
HP R5500 5000kVA NA/JP 3U Rackmount Uninterruptible Power System
DA - 11871
Worldwide — Version 21 — January 9, 2012
HP Rack-Mountable R5500 UPS
HP Rack-Mountable R5500 UPS
HP Rack-Mountable R5500 UPS
HP Rack-Mountable R5500 UPS
7.
Load segment 2 (two IEC-320-C19 receptacles and two IEC-
320-C13 receptacles)
8.
Battery circuit breaker
9.
Cord retention clip attach. locations
10. ERM connector
11. PDU output NEMA L6-30 receptacle (NA/JPN) or 32 A IEC-
309 receptacle (INTL) associated with load segment 1
12. Power cord with NEMA L6-30 plug (NA/JPN) or 32 A IEC-
309 plug (INTL)
AF416A
AF426A
Page 1
