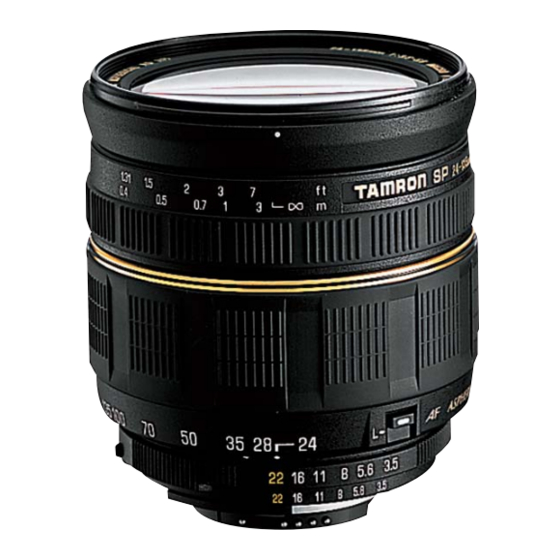

AF 24~135mm F/3.5-5.6 AD
Aspherical [IF] Macro
(Model 190D)
Thank you for purchasing the Tamron lens as the latest addition to your
photographic equipment. Before using your new lens, please read the
contents of this Owner's Manual thoroughly to familiarize yourself with
your lens and the proper photographing techniques for creating the
highest quality images possible. With proper handling and care, your
Tamron lens will give you many years of photographing beautiful and
exciting pictures.

Advertisement

loading

Related Manuals for Tamron 190D

Summary of Contents for Tamron 190D

  • Page 1 AF 24~135mm F/3.5-5.6 AD Aspherical [IF] Macro (Model 190D) Thank you for purchasing the Tamron lens as the latest addition to your photographic equipment. Before using your new lens, please read the contents of this Owner's Manual thoroughly to familiarize yourself with your lens and the proper photographing techniques for creating the highest quality images possible.

  • Page 3: Specifications

    AE lock button (Nikon, Pentax Fig. 7) F-number scale for finder display (Nikon) Zoom ring lock switch (Fig. 3) F-number index mark for long focal lengths (Fig. 3) SPECIFICATIONS 190D Focal Length 24-135 mm Maximum Aperture F/3.5 - 5.6 Angle of View 84°...
  • Page 4 * For further details, please read the instruction manual of your camera. * The minimum photographing distance of the Model 190D is constant at 0.4 m throughout the entire zooming range. There is, therefore, no minimum distance scale on the lens barrel.
  • Page 5 ZOOM LOCK SWITCH (Ref. Fig. 2) Model 190D is equipped with newly developed zoom lock switch mechanisms, which pre- vent lens barrels from extending toward long focal length by their own weight while hung from shoulders.

  • Page 6: Depth Of Field

    (Fig. 9, No. 1) and then rotate it clockwise to secure (Fig. 9, No. 2). The lens hood will be securely held as the mark "TAMRON O" comes to the top (Fig. 10, No. 3). When attach- ing the lens hood, hold the focusing and zoom control rings so that they are not rotated unintentionally.
  • Page 7 PRECAUTIONS IN SHOOTING The Tamron lenses 24-135 mm (Model 190D) employs an internal focusing (IF) system to achieve remarkable minimum photographing distances of 0.4 to 0.49 meter (1.31 to 1.61 feet). Because of the characteristics of this optical design, the angles of view at distances other than infinity are wider than that of the lenses applying an ordinary focusing system.
  • Page 8 TO ENSURE LONG-TERM SATISFACTION (CON’T) Do not touch the lens-camera interface contacts since dust, dirt and/or stains may cause contact failure between the lens and camera. When using your equipment [camera(s) and lens(es)] in an environment where the temper- ature changes from one extreme to the other, make sure to put you equipment temporarily in a case or a plastic bag for a length of time in order for the equipment to go through grad- ual temperature change.
