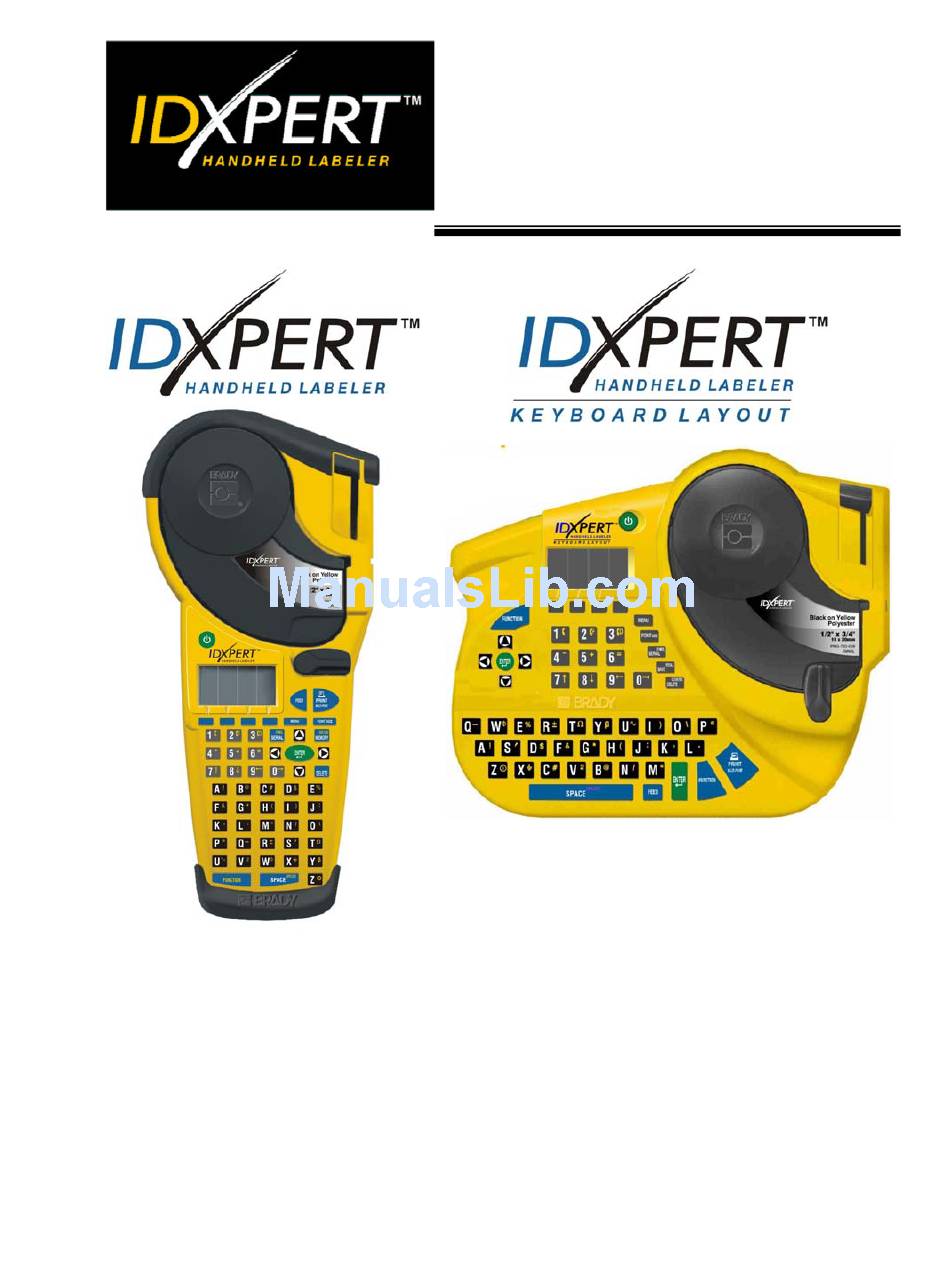

Page 1: Quick Start
QUICK START GUIDE For additional information, please refer to the IDXPERT Handheld Labeler User’s Manual www.bradyid.com/idxpert... -
Page 2: Check Package Contents
Welcome to the IDXPERT Handheld Labeler, Brady’s newest lightweight, handheld printer! Use this Quick Start Guide to begin using your printer immediately. Refer to the IDXPERT Handheld Labeler User’s Manual for details and additional information. Check Package Contents Before you begin setting up the printer, verify that you have received the... -
Page 3: Quick Start Guide
B-483 Ultra Aggressive General labeling, powder coated surface ID Glossy Polyester B-422 Glossy Polyester Component marking, electrical outlet and patch panel ID Note: For specific part numbers, consult product literature or your Brady distributor. Quick Start Guide... -
Page 4: Set Up Your Printer
Set up your printer Note: The instructions in this section show the ABC Keypad version of the IDXPERT Printer. The same instructions apply if you are using the Keyboard Layout version. Step 1. Install the batteries or connect to power Insert six AA alkaline batteries (not included) 1. - Page 5 Understand the display screen & menu The Display Screen When the Power button is pressed, the display screen appears. The display allows you to see up to three lines of text and 16 characters per line. The display auto-scrolls when you enter more than the maximum displayed lines or characters.
-
Page 6: Create Labels
Create labels Note: Follow these instructions to create and print a basic label. For details and information on advanced features, refer to the IDXPERT Handheld Labeler User’s Manual. TIP: See the IDXPERT Handheld Labeler Sample Label Tutorial for step-by-step instructions on creating a variety of labels. Step 1. - Page 7 Save and recall a label You may save up to ten labels and then recall them for future use. To save, recall, and delete labels from memory: Step 1. Press MEMORY. A grid appears showing the 10 storage positions. A bold XC-1500-580 number indicates that a storage position is occupied.
- Page 8 Font and bold settings are set on a line-by-line basis. To change the font size or boldface text: Press FONT SIZE The display screen shows the FONT: 10 pt current font size and bold status. Bold: OFF Use the up/down arrow softkeys—or the arrows on your keypad —[▲] to select a font size.
-
Page 9: Guide To Keys
Guide to Keys POWER—powers on the printer. Press the POWER button again to power off the printer. The printer automatically shuts off after 10 minutes of non-use. FUNCTION— accesses a secondary function or character when pressed along with the desired key. A secondary function or character is shown in yellow on each button. - Page 10 Menu Tree Quick Start Guide...
- Page 11 Font Size Chart Point Size Inch mm PRINT SAMPLE BRADY 12345 BRADY 12345 BRADY 12345 BRADY 12345 BRADY 12345 BRADY 123 14.0 BRADY 12 16.0 18.0 28.0 36.0 The IDXPERT printer also offers a 126 pt., (1.25”, 31.75mm) font for UPPERCASE characters only.
-
Page 12: Symbol Library
Symbol Library *Arrows are available in four rotations: 0 , 90 , 180 , and 270 Note: Some symbols are accessible directly from the keypad. Quick Start Guide... -
Page 13: Technical Support
Technical Support Choose one of the following options to contact system support provided by Brady Corporation: U.S. and Canada Phone: (800) 643-8766, Monday - Friday 7:00 a.m. - 6:00 p.m. (CST). Fax: (414) 358-6767. E-Mail: tech_support@bradycorp.com. Assistance is available 24 hours per day / 7 days per week. Go to: www.bradyid.com, and then select Knowledge Base from the left-hand panel.
